3-2-4. VLAN Group Configuration
Function name
Tag-based VLAN Configuration (Tag based VLAN mode)
Function description
The VLAN membership configuration for the selected switch can be monitored and
modified here. Up to 16 VLANs are supported. This page allows for adding and de-
leting VLANs as well as adding and deleting port members of each VLAN.

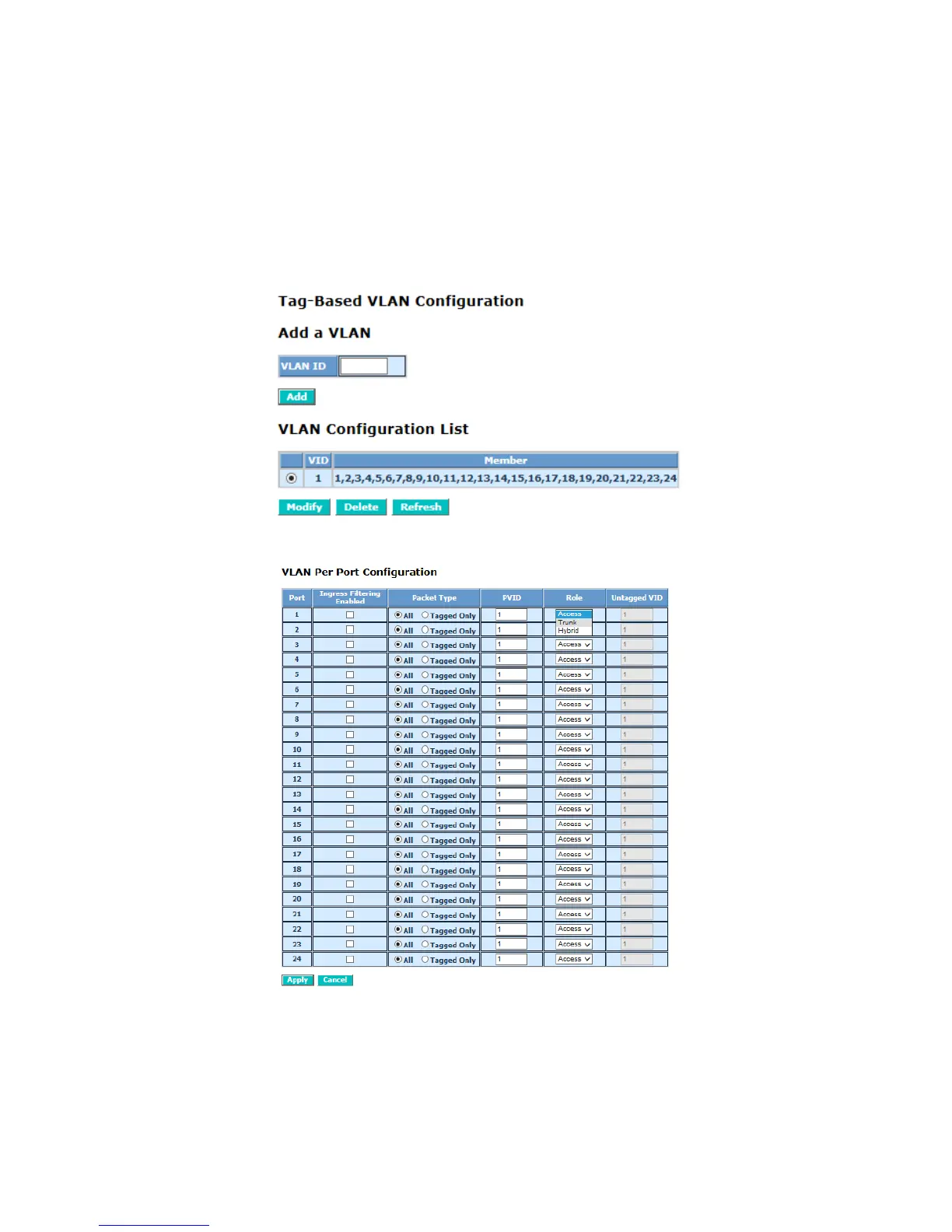

Fig. 3-5-1 tag- VLAN Mode
Fig. 3-5-2 Per port configuration
