24 Port Gigabit Ethernet PoE Switch – User Manual Page 30 of 72

________________________________________________________________________

Parameter description

ID (Group ID):

When you want to edit a VLAN group, you must select the Group ID field. Then,

you will enter Tag Base VLAN Group Setting or Port Base VLAN Group Setting

page, which depends on your VLAN mode selection.

Member:

In modify function this is used to enable or disable if a port is a member of the

new added VLAN, “enabled” means it is a member of the VLAN. Just tick the

check box () beside the port x to enable it.

Add Group:

Create a new port-based VLAN or tag-based VLAN, which depends on the VLAN

mode you choose in VLAN mode function.

Delete Group:

Just tick the check box () beside the ID, then press the <Delete> button to

delete the group.

3-2-5. VLAN Port Isolation Configuration

Function name

Port Isolation Configuration

Function description

Port Isolation provides for an apparatus and method to isolate ports on layer 2

switches on the same VLAN to restrict traffic flow. The apparatus comprises a

switch having said plurality of ports, each port configured as a protected port or a

non-protected port. An address table memory stores an address table having a des-

tination address and port number pair. A forwarding map generator generates a

forwarding map which is responsive to a destination address of a data packet. The

method for isolating ports on a layer 2 switch comprises configuring each of the

ports on the layer 2 switch as a protected port or a non-protected port. A destina-

tion address of a data packet is matched with a physical address on said layer 2

switch and a forwarding map is generated for the data packet based upon the des-

tination address of the data packet. The data packet is then sent to the plurality of

ports pursuant to the forwarding map generated based upon whether the ingress

port was configured as a protected or non-protected port.

This page is used for enabling or disabling port isolation on ports in a Private VLAN.

A port member of a VLAN can be isolated to other isolated ports on the same VLAN

and Private VLAN.

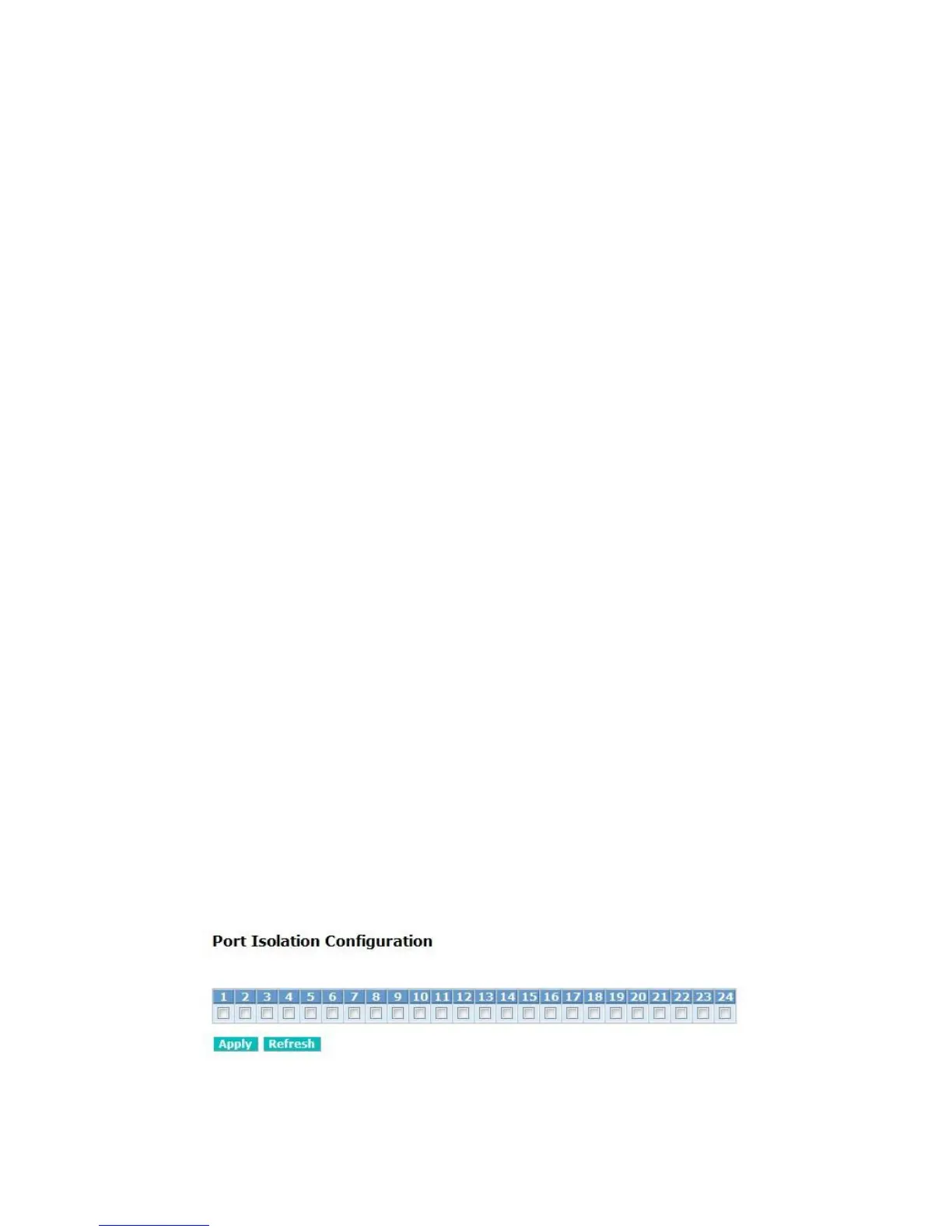

Fig. 3-9 Port Isolation configuration
