3-2-7. Aggregation

The Aggregation (Port Trunking) Configuration is used to configure the settings of

Link Aggregation. You can bundle ports by same speed, MAC, and full duplex to be a sin-

gle logical port, thus the logical port can aggregate the bandwidth of these ports. This

means you can apply your current Ethernet equipment to build the bandwidth aggrega-

tion. For example, if three Fast Ethernet ports are aggregated into a logical port, then

this logical port’s bandwidth would be as three times high as a single Fast Ethernet port.

Function name

Aggregation Configuration

Function description

Display the current setup of Aggregation Trunking. With this function, user is al-

lowed to add a new trunking group or modify the members of an existed trunking

group.

The load balance mechanism is based on MAC SA/DA hash algorism and it is not configura-

ble.

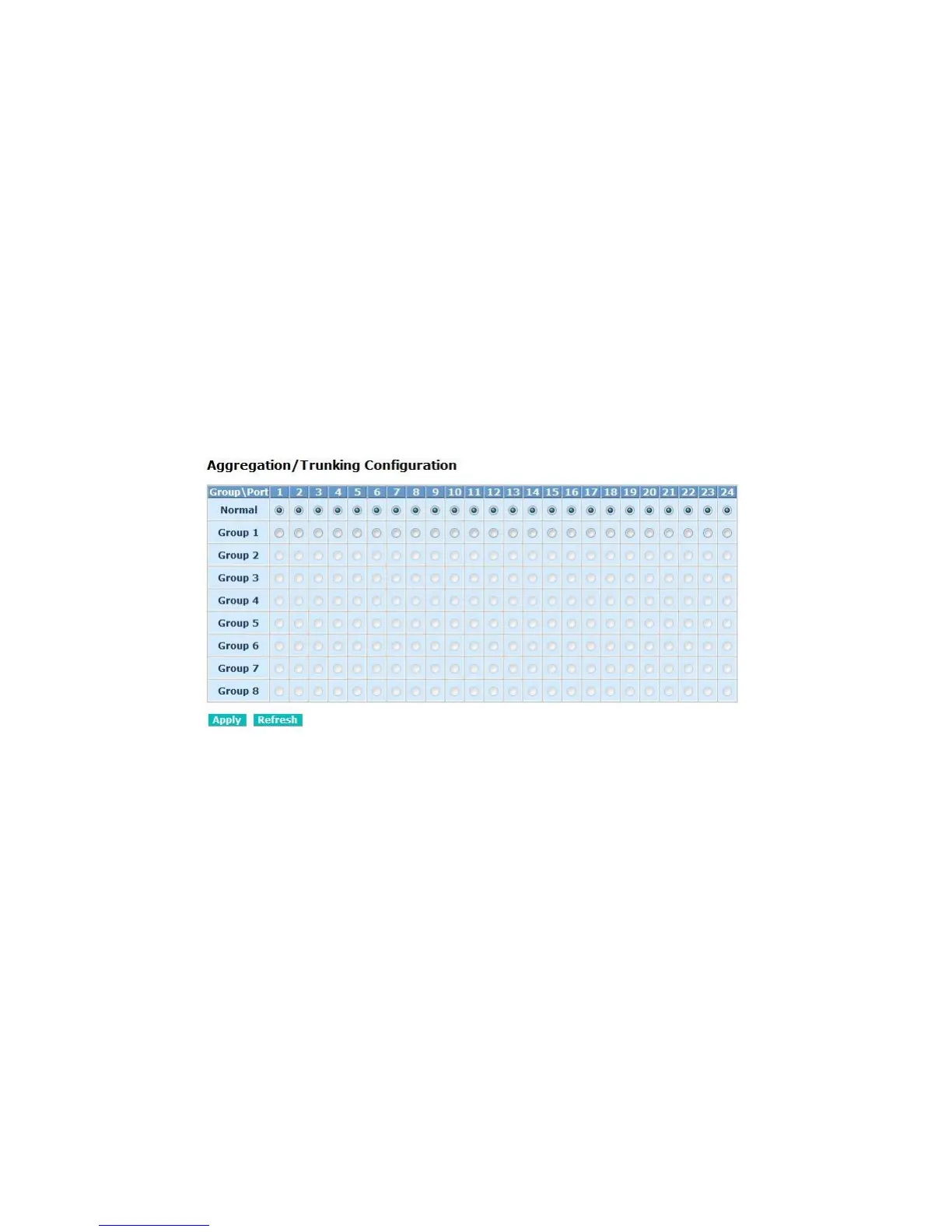

Fig. 3-11 Aggregation / Trunking Configuration

Parameter description

Normal:

Set up the ports that do not join any aggregation trunking group.

Group 1~8:

Group the ports you choose together. Up to 2 to 12 ports can be selected for

each group.
