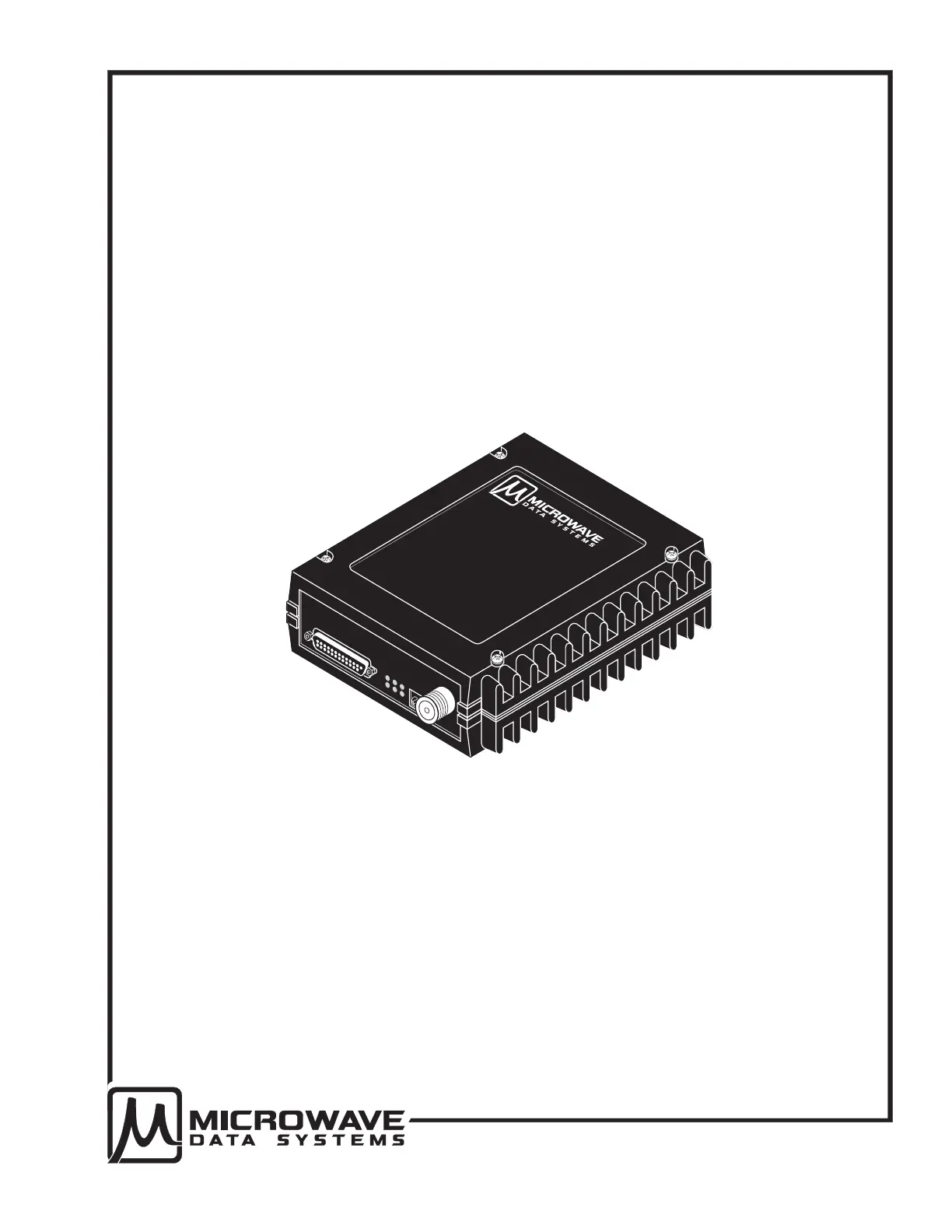

A CALIFORNIA MICROWAVE DIVISION
MDS 4310
350–512 MHZ
RADIO TRANSCEIVER
ANTENNA
INTERFACE
TD IN RD
TR MR CD
13.8 VDC
+
–
Installation, Operation & Field Maintenance
Covering the MDS 4310 Transceiver with the 05-2314Axx PCB,
the MDS 4350 & 4355 Packaged Systems and All Basic Options
MDS 05-2415A01, Rev. A
SEPTEMBER 1994
