3-14 PROGRAMMING AND DIAGNOSTICS MDS 05-2415A01, Rev. A
Table 3-3. Hand-Held Terminal Operating Defaults
PARAMETER SETTING
Re-init HT NO
Baud Rate 1200
Comm bits 8,1, n
Parity Error OFF
Key Repeat OFF
Echo OFF
Shift Keys YES
Ctl Chars PROCS
Scroll on 33rd
Cursor ON
CRLF for CR ON
Self Test SLOW
Key Beep ON
Screen size 32
Menu Mode LONG
HAND-HELD TERMINAL WIRING
The HHT is a very reliable unit, but the 6-conductor coiled cord or its RJ-11-6 modular
connectors can be damaged by over-stretching or being dropped. The coiled cord is wired as
a straight pin-for-pin assembly and the parts required to construct a replacement cable can be
obtained from many electronics supply companies. Although similar in appearance, the cable
set is not the same as an RJ-11-4 (4-conductor) telephone coiled cord.
Adapter Plug Wiring
Figure 3-4 shows the internal wiring of the DB-25 interface adapter plug that is used to
connect the HHT to the transceiver.
DB-25RJ-11-6
19
5
N/C
3
2
7
23
1
2
3
4
5
6

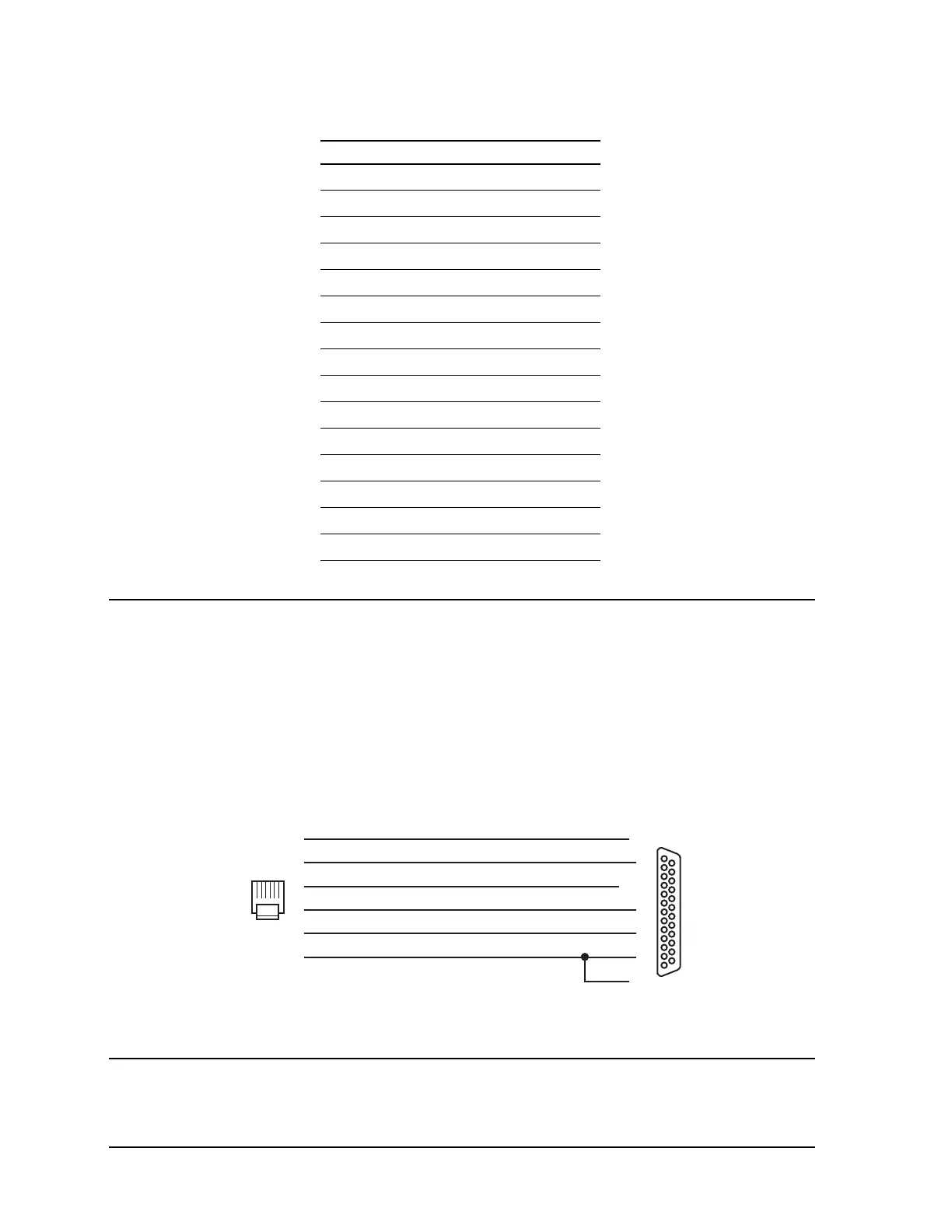

Figure 3-4. DB-25 Interface Adapter Wiring
HHT ALTERNATIVES
As an alternative to using the HHT, a PC running terminal software (such as PCPLUS™,
PROCOMM™, etc.) can be used to program the transceiver. Also, any ASCII terminal
