MCAC-ATSM-2014-09 Aqua tempo power series tropical air-cooled scroll chiller 50Hz
119

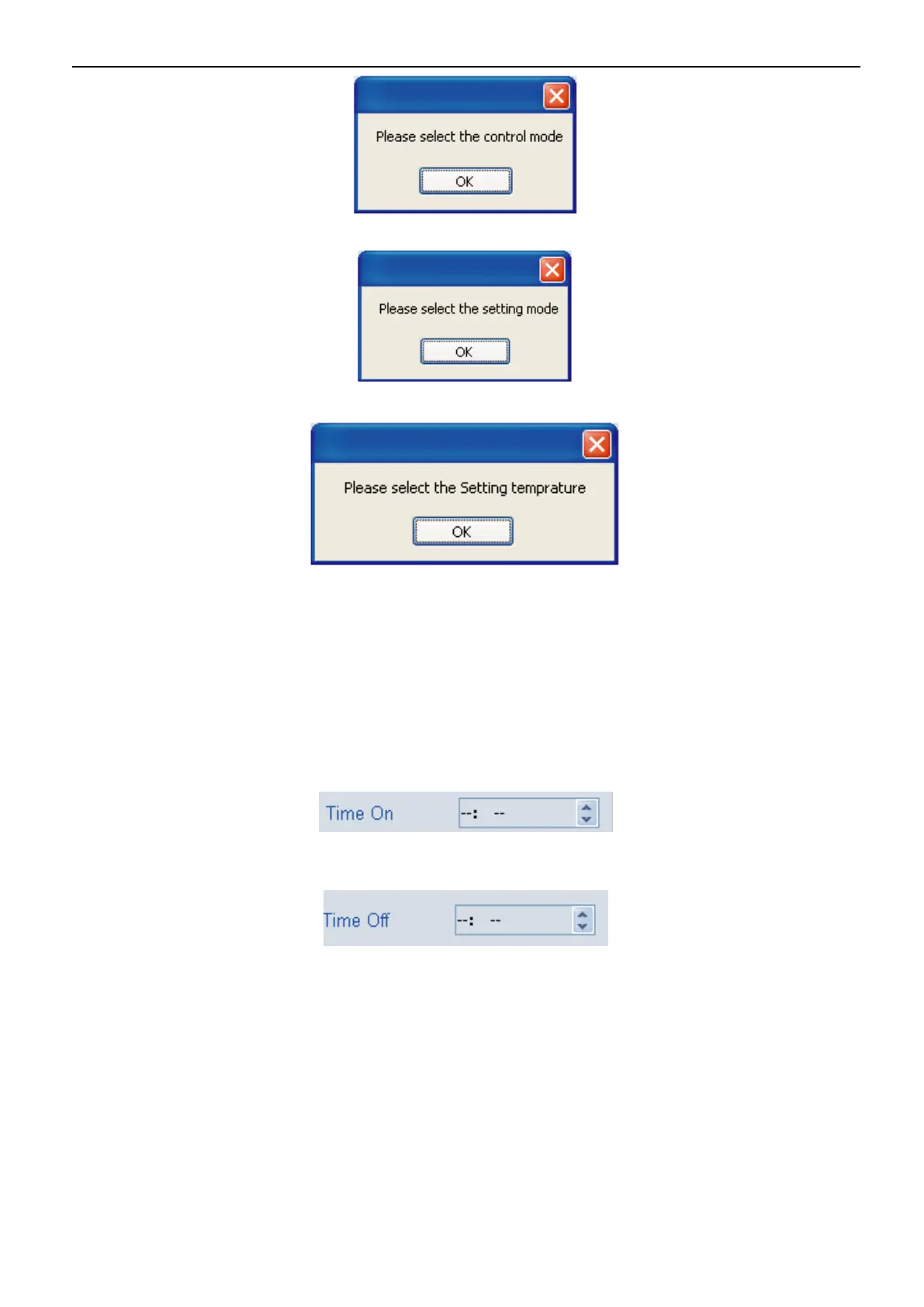

If no Mode set has been set, a message box as Fig. 4-42 would pop up.
If no Setting temp. has been set, a message box as Fig. 4-43 would pop up.
（2）Detail procedures of modify a Weekly Timing Schedule:
a、Select a wired controller: By clicking the “System diagram for weekly timing AC” wired controller icon at
the left side in the wired controller, or by selecting the wired controller at the drop-down box of “KJR
Address”.
b、Select a wired controller: By clicking the Period of the “System diagram for weekly timing AC” at the left
side in the wired controller, or by selecting the wanted modified Period at the drop-down box of “Period”.
c、Detail parameter for modifying weekly timing schedule:
Time On：Turn on time, when Time On selecting ”--：--“ , then means do not turn on the unit , display as Fig
4-44.
Time Off：Turn off time, when Time Off selecting ”--：--“ , then means do not turn off the unit , display as Fig
4-45.
Timing Status：Drive up the weekly timing function in the current period or not.
Control Mode：Automatically drive-up mode
Mode set：Heating、Cooling、Water Pump
Setting temp.：Setting temp.
If other parameters have been set, click “Save” key, a message box as the same as above” (1) Detail
procedures of add a new Weekly Timing Schedule” will pop up.
Once the setting time is reach, system will set according to the setting parameter, window as Fig. 4-46 will
display. When finish the set up, message box will close automatically.
