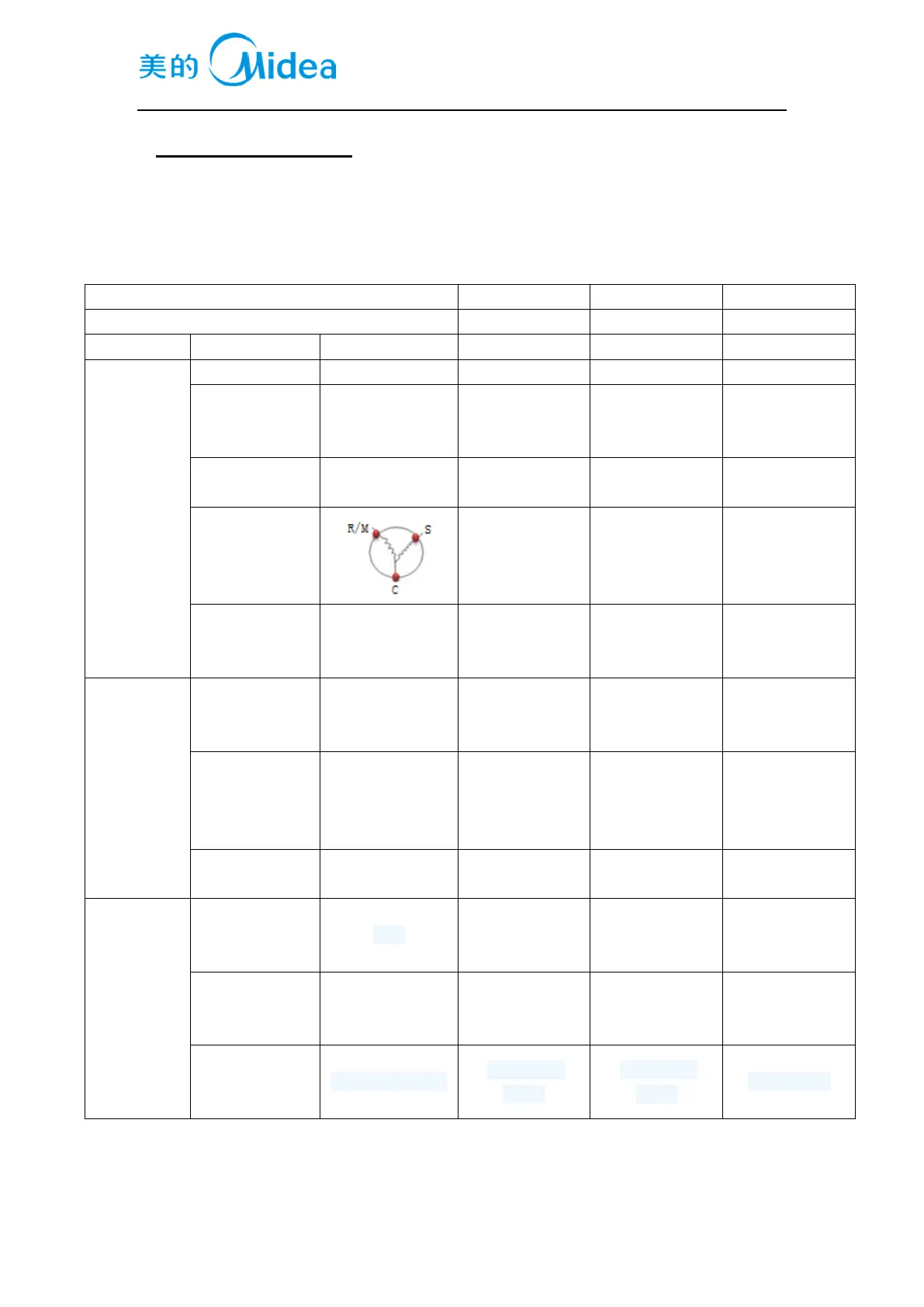

5.Product specification
5.1 typespecification(None)
5.2 Electrical parameters
Product Name
UL-BD481WE-ST
UL-BD594WE-ST
UL-BD386WE-ST
Product Code
22031010000841
Name
Item
Type
Specification
Specification
Specification
Compressor
Compressor
/
EE50H1B
EE55H1A-U
EE50H1C
Starter
PTC
MPT36A04
8EA14C3
8EA14C3-02
MTP42A04
8EA14C3
8EA14C3-02
QPE2-A4R7MD3
Overload
protector
OLP
4TM302TFBYY
4TM319TFBYY
QRB31T61A1
Winding
resistance of
compressor
wiring terminal
Rmc:10-20Ω
Rsc:30-50Ω
Rms=Rmc+Rsc
Rmc:10-20Ω
Rsc:30-50Ω
Rms=Rmc+Rsc
Rmc:10-20Ω
Rsc:30-50Ω
Rms=Rmc+Rsc
Variable
frequency
driver board
/
/
/
/
Motor
Fan motor of the
freezing
chamber
DC
DC12V
DC12V
DC12V
Ventilation door
of the
refrigerating
chamber
/
/
/
/
Condensation
fan
/
/
/
/
Lights inside
the
refrigerator
Lights inside the
freezing
chamber
LED
DC12V
DC12V
DC12V
Lights inside the
refrigerating
chamber
/
/
/
/
Switch of the
refrigerator
door
mechanicalswitch
Cylindrical
switch
Cylindrical
switch
Secto switch
