Service Manual, 2016-12
15 / 47

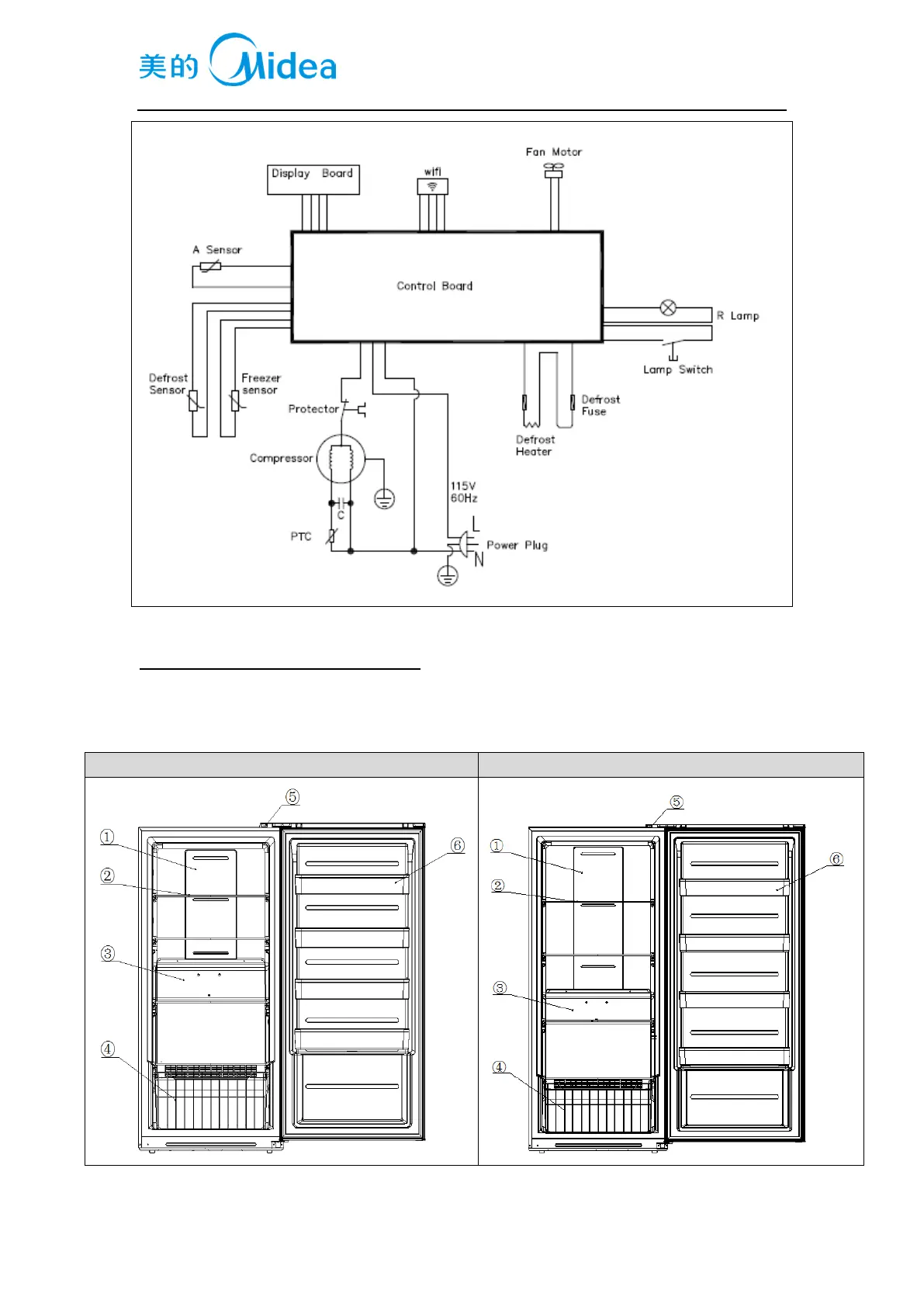

6.Internal view and dimension
6.1Main parts and their names
UL-BD481WE-ST
UL-BD594WE-ST
