Midea UL-BD386WE-SQ - Temperature Settings; Circuit Diagram

Service Manual, 2016-12
14 / 47
5.3Inside temperature
Temperature tolerance ≤ 2
o
C
Compartment
The highest (
o
C)
Lowest (
o
C)
Freezing
-12
-20
Refrigerating
/
/
Variable temperature
/
/
5.4Defrosting parts
Defrosting period
Initial defrosting period
Normal defrosting period
/
/
Defrosting sensor
NTC
B3839
Thermal fuse
Can’t be restored
77
o
C
Defrosting heater in freezing chamber
Steel pipe
115V/200W
115V/180W

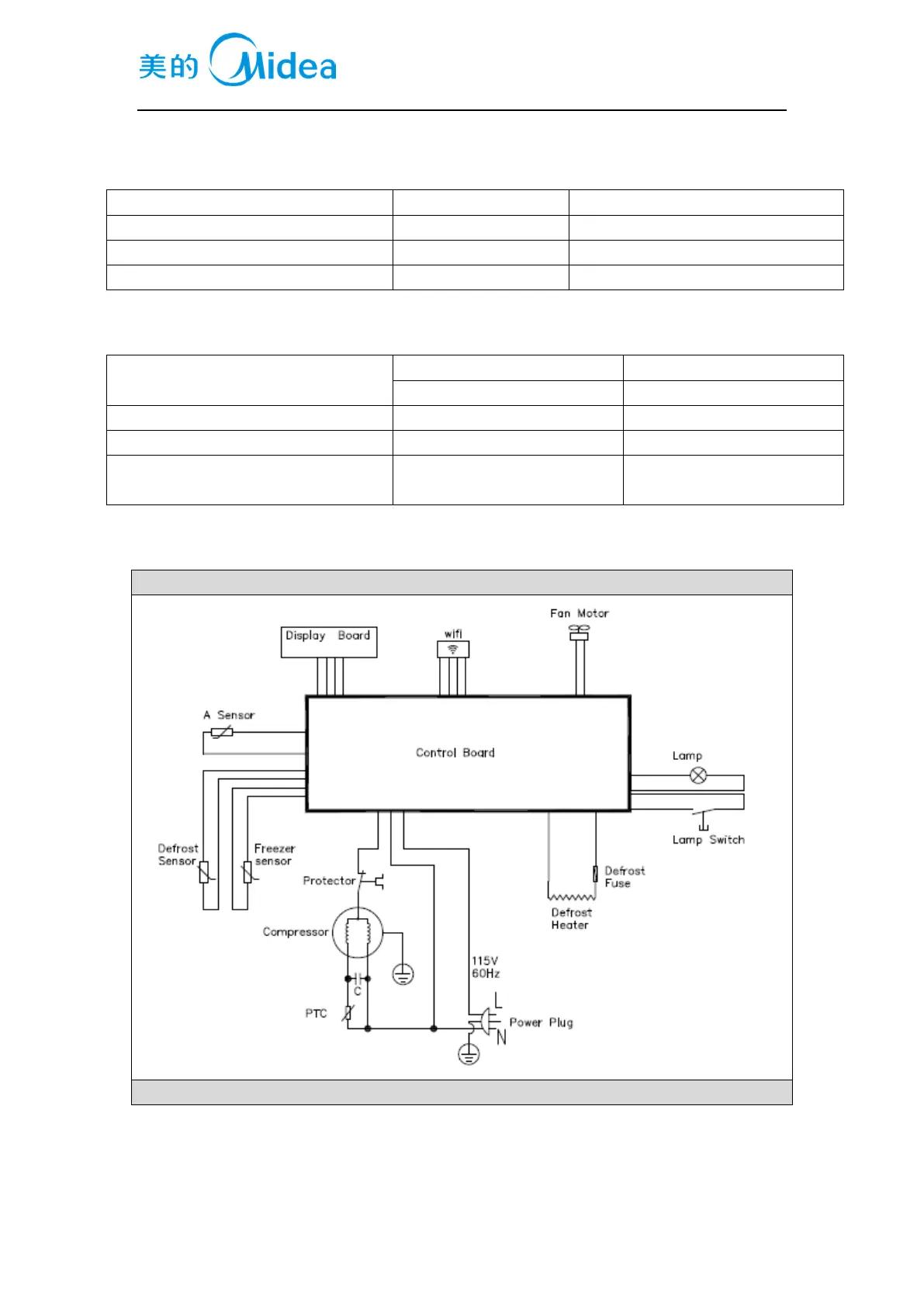

5.5Circuit diagram
UL-BD481WE-ST\UL-BD594WE-ST
UL-BD386WE-SQ_22031010000841
