7.Refrigerating piping system and circulating route of cooling air

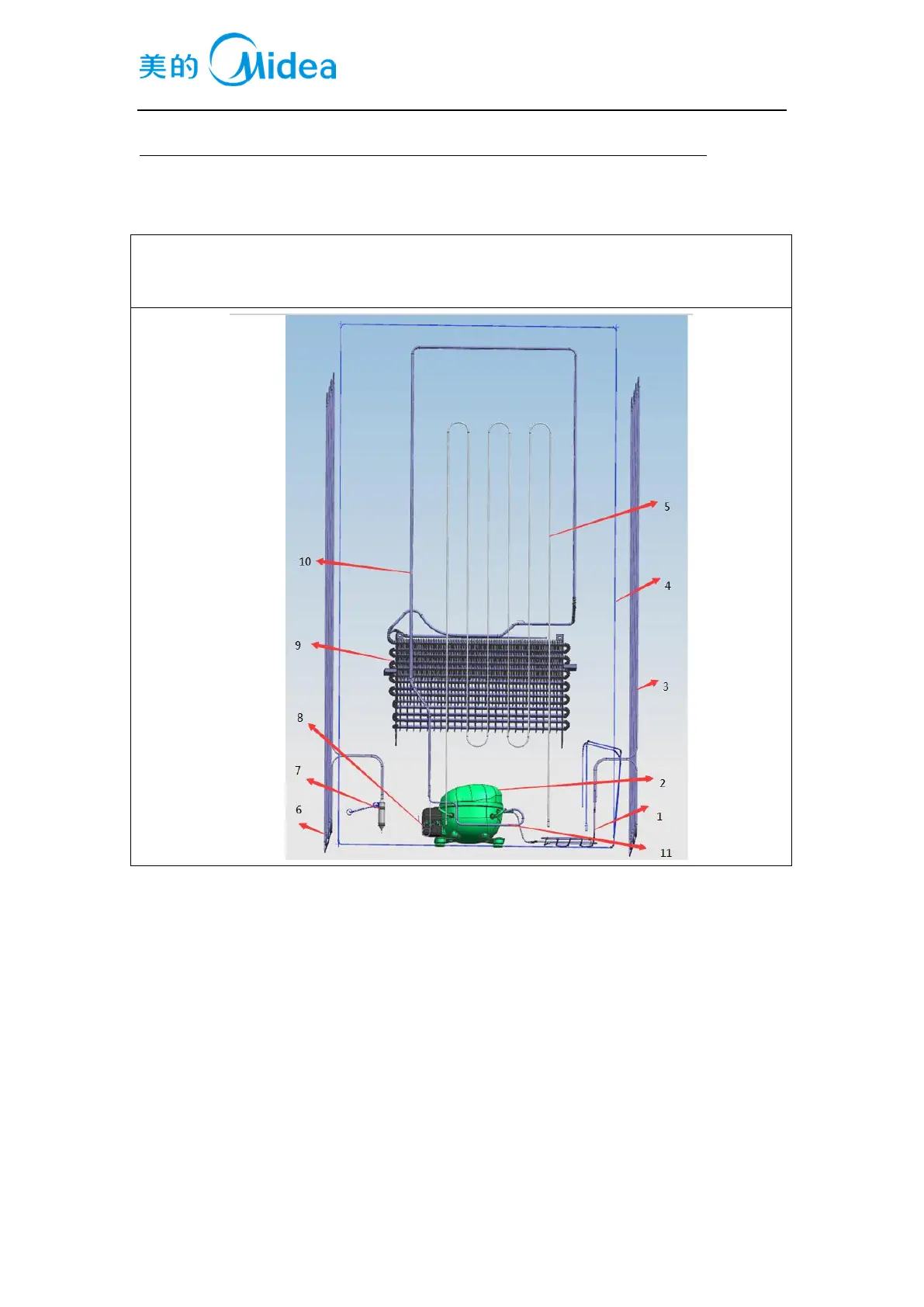

7.1 Refrigerating piping system
1Compressor→2Exhaust transition pipe→3Left condenser→4Anti-condensationg tube→5Back
condenser→6Right condenser→7Dry filter→8Capillary tube→9Evaporator→10Suction
pipe→11Return transition pipe→2Compressor
(The picture is only for reference, and specific appearance and configuration are subject to the real
product)
