Service Manual, 2016-12
23 / 47

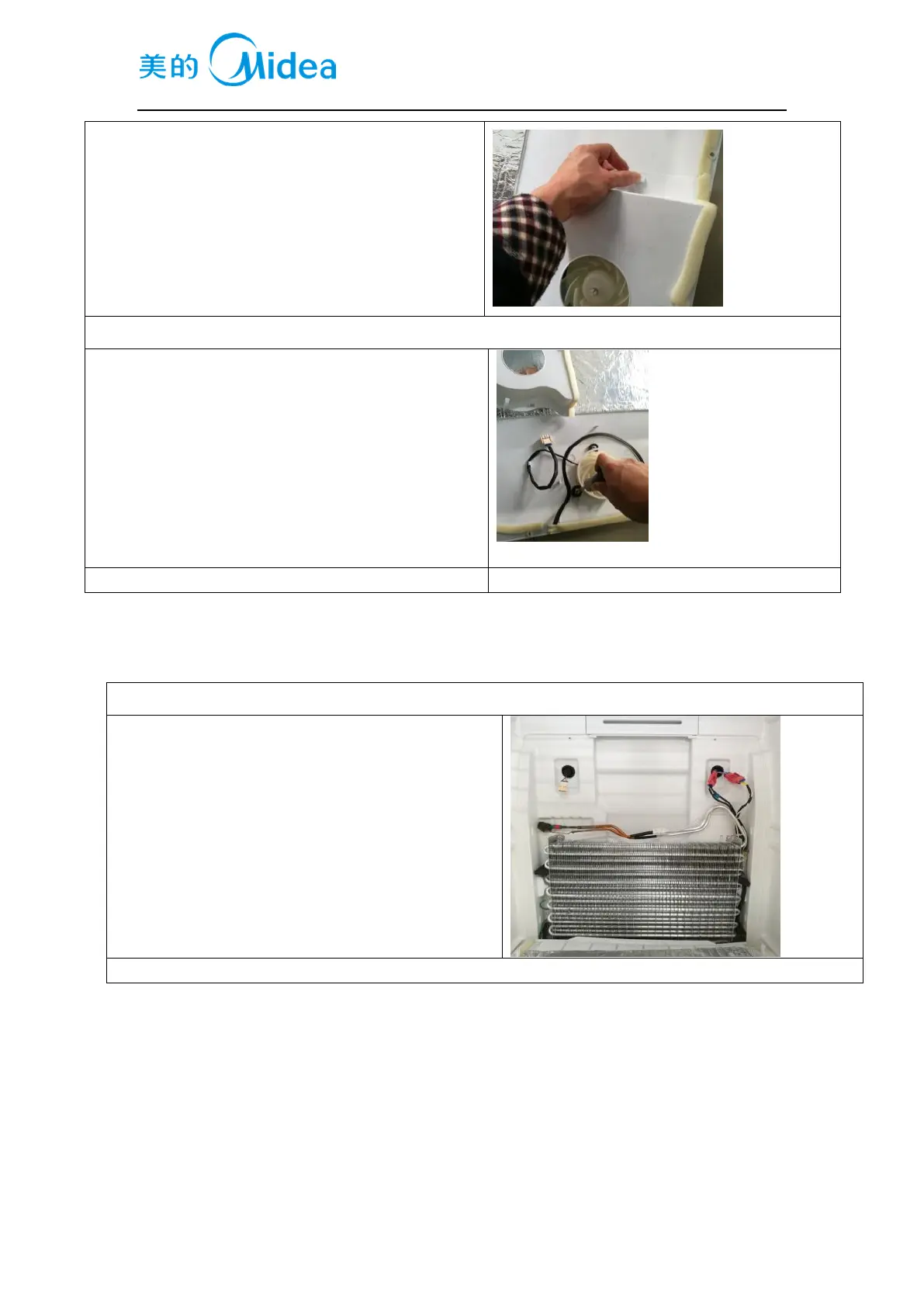

Before dismantle it, please make sure the front evaportor
cover(bottom) be removed already
1) Loosen the plastic clips,move the rear cover
outwards
2) Hold the edge of cover, and dismantle it from the
refrigerator
Before dismantle it ,please make the front evaporator
cover(bottom) be removed already
1) Loosen the plastic clips,move the rear cover outwards
2) Hold the edge of cover, and dismantle it from the
refrigerator
3) Dismantle the screw, move the fan motor from the
refrigerator
4) Replace the fan motor, the inverse operation to
complete installation
8.5Evaporator and temperature sensing system
Evaporator in freezing chamber
1） Remove the air duct components in freezing
chamber.
2） Disconnect all connectors.
3） Remove the welding on inlet and outlet tubes.
4） Remove two screws which are used to fix the
evaporator and remove the evaporator.
Components on the evaporator
