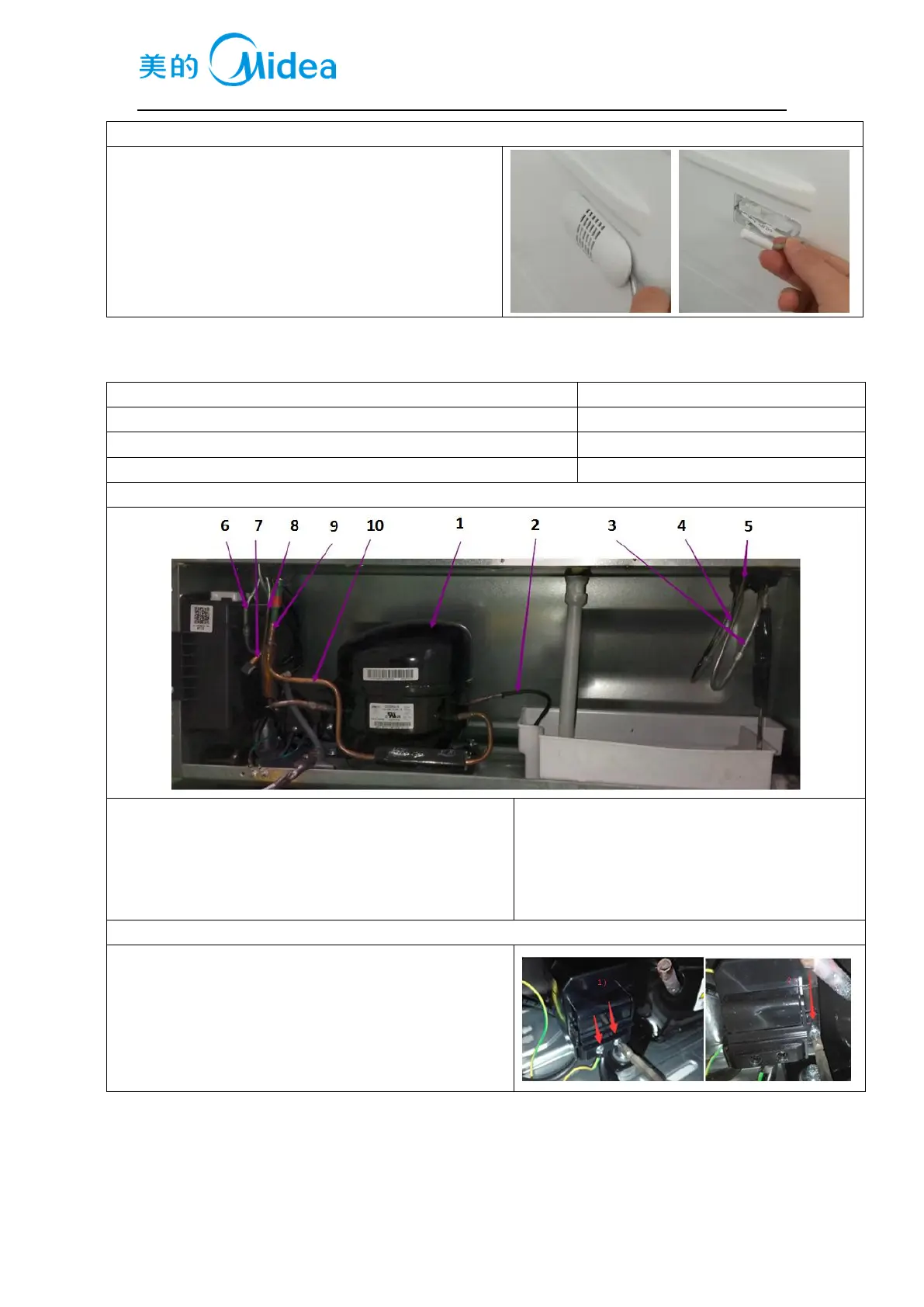

Freezer sensor
The sensor is located at right of freezer chamber
1）Pull out the cover
2）Pull out the sensors
8.6Compressor case
Rear cover and compressor case
None
Condenser fan moto
None
Terminal box of the compressor
None
Standby condenser
None
Piping system in the compressor case
1.Compressor
2.Exhaust transition pipe
3.Left condenser
4.Anti-condensationg tube
5.Back condenser
6.Right condenser
7.Dry filter
8.Capillary
9.Suction pipe
10.Return transition pipe
Starter and protector of the compressor
1. Remove the screws
1） Two screws outside
2） One screw inside
