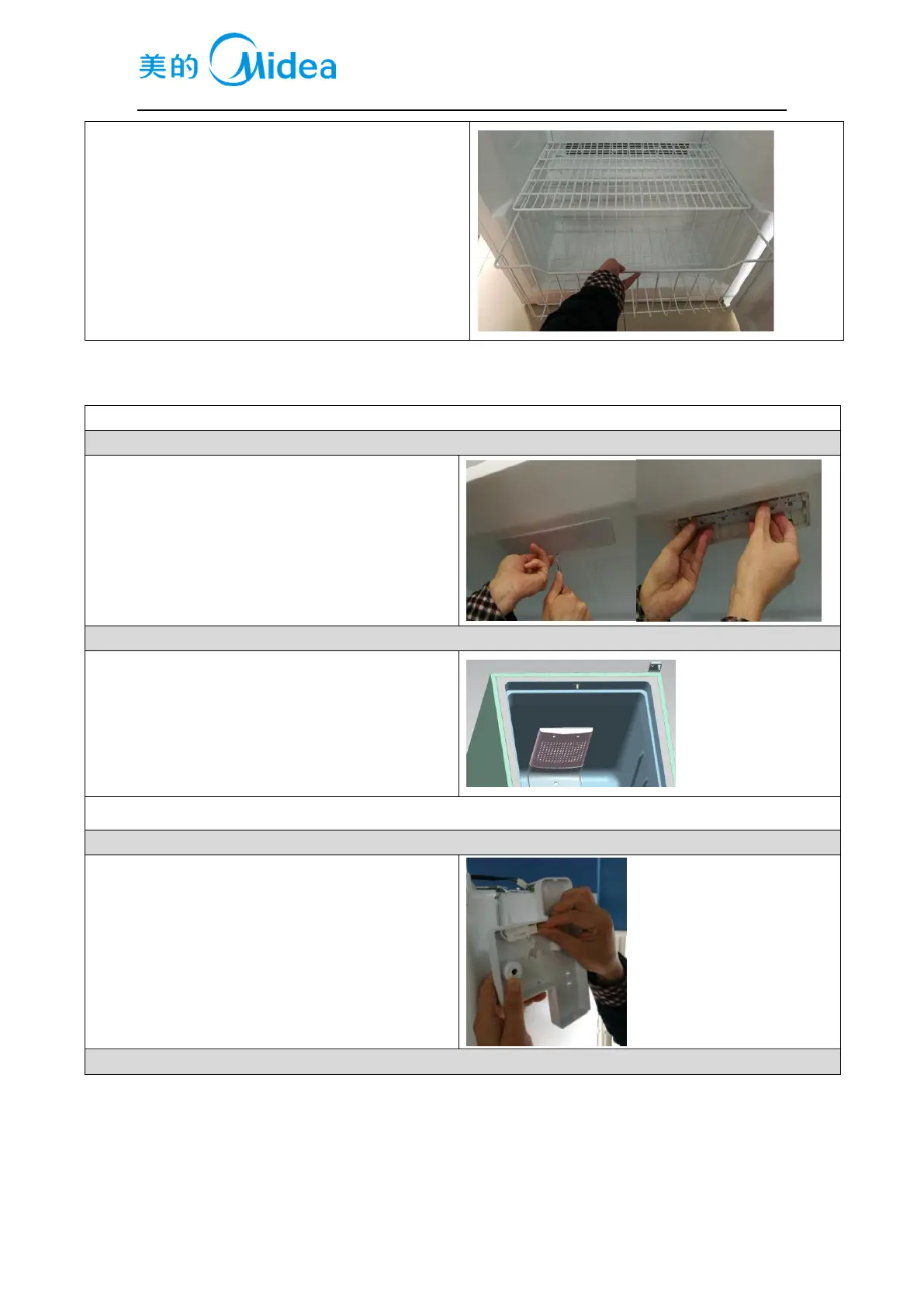

The bottom of the drawer is located in the freezer
1）take it out from the refrigerator.
8.3Light system
Light
UL-BD481WE-ST_22031010001001(UL-BD594WE-ST_22031010000981)
Light of the freezer chamber is located upper chamber
1) use slotted screwdriver to insert into the
gap,dismantle the lamp
2) loosen the plasic clip, dismantle the lamp PCB
UL-BD386WE-SQ_22031010000841
Light of the freezer chamber is located upper chamber
1) Losen the screw
2) Pull down the light cover
Light switch
UL-BD481WE-ST_22031010001001(UL-BD594WE-ST_22031010000981)
1) Remove the screws of hinge
2) Unplug the wiring connector, and loosen the
plastic clip of lamp switch to dismantle lamp
switch
UL-BD386WE-SQ_22031010000841
