Midea WQP6-3602E Series

10

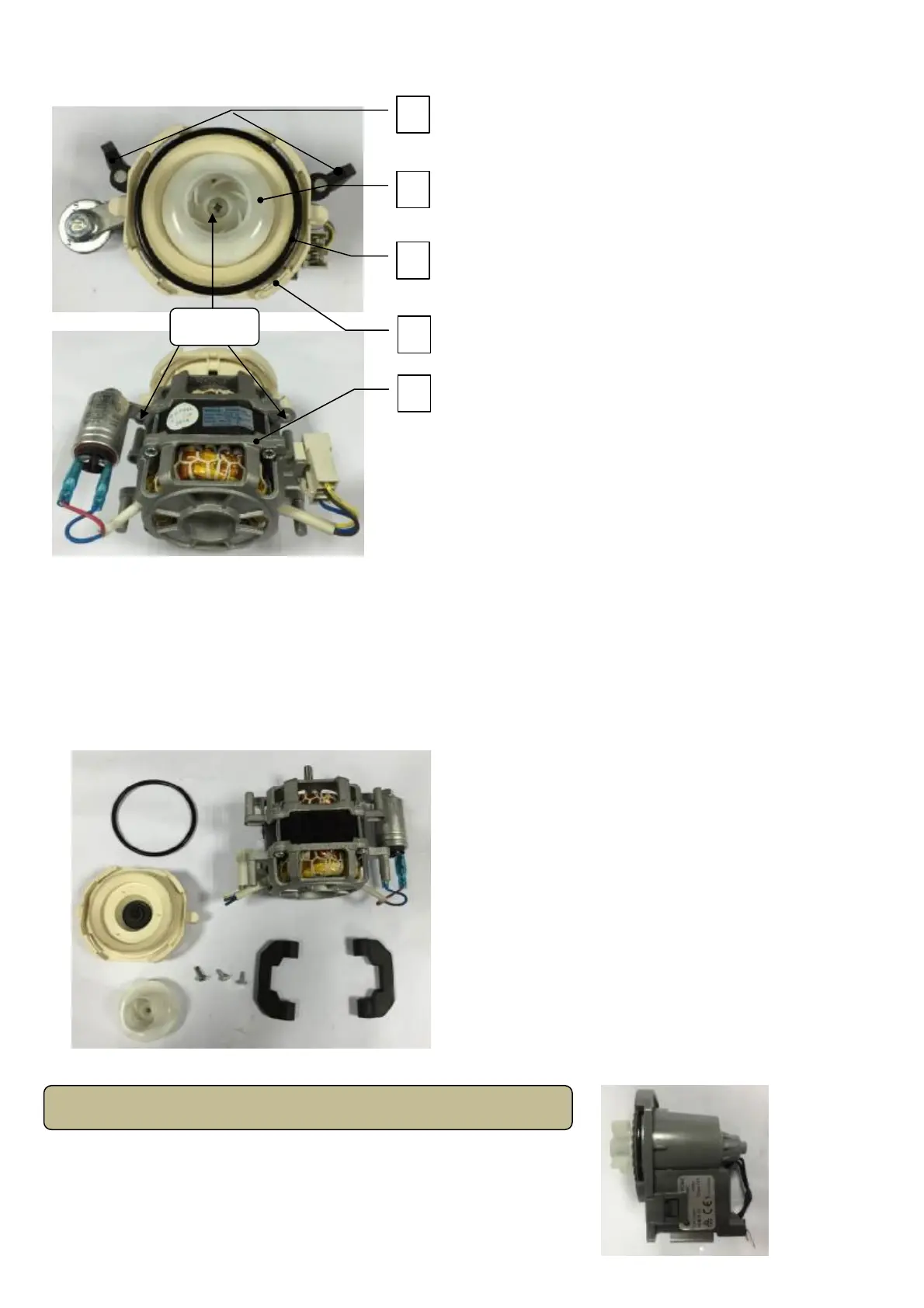

Part Name: 1
–
motor hunger
2
–
impeller assembly 3
–
pump seal ring
4 – lower pump 5 – motor assembly
Removal and Replacement
1. Take out heating pump motor assembly from the dishwasher machine. (see main heating
pump motor assembly removal and replacement)
2. Disassemble heating pump motor assembly. (see heating pump assembly removal and
replacement)
3. Take out two motor hungers, and remove screws for fixing impeller assembly and lower
pump to motor assembly.
4. Reverse the above procedure to install. And check out all connectors connected well.
Removal and Replacement
1. Remove cover of bottom board. (see main control board removal
and replacement)
Drain pump
assembly
2
1
3
5
Screws
4
