5. Turn the dishwasher machine, remove the cover of bottom board. (see main control board
removal and installation)
6. Remove all clamps for fixing connecting hoses to air breaker.
7. Reverse the above procedure to install. And check out all connectors connected well.

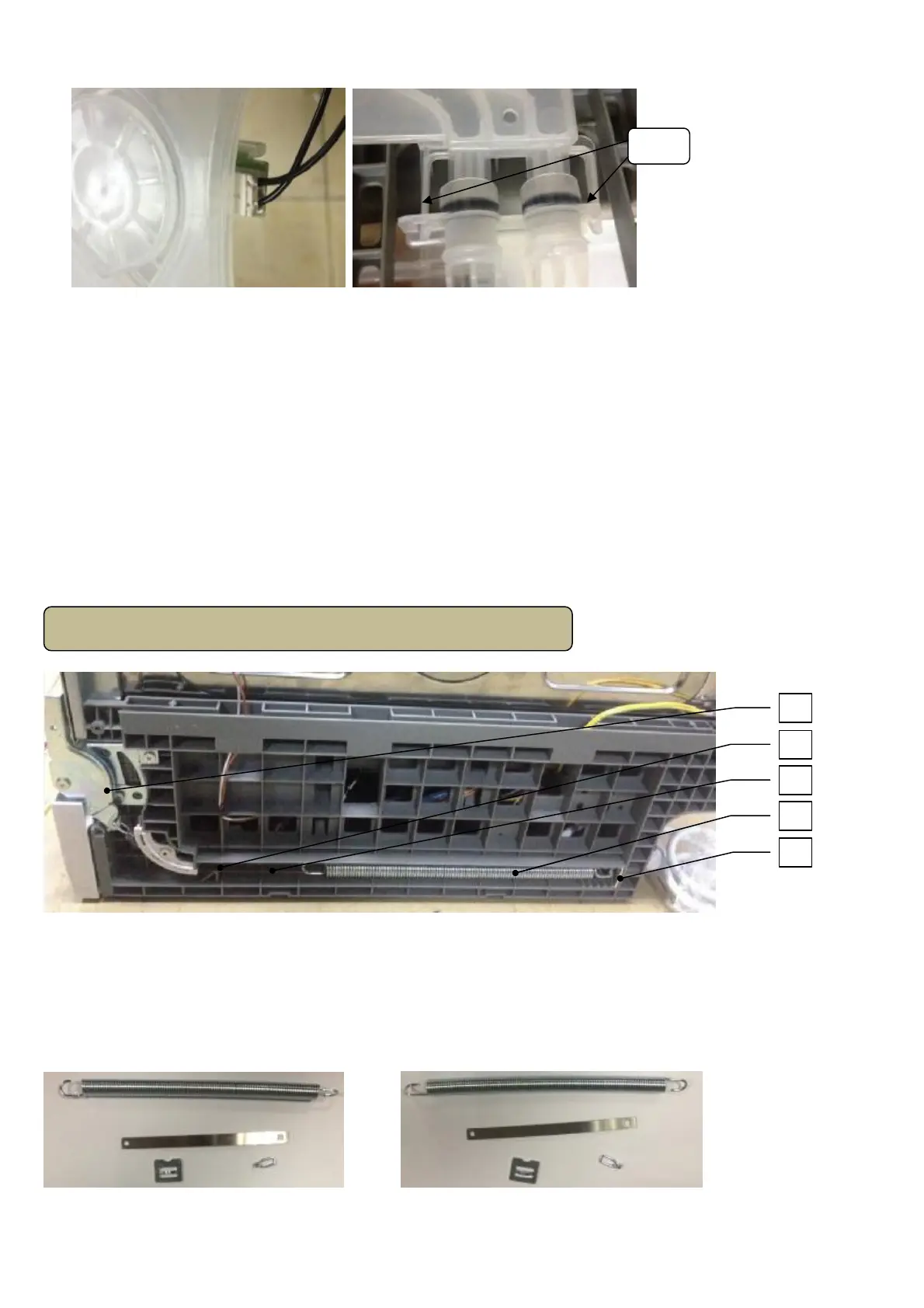

Part Name: 1 – spring holder 2 – spring 3 – friction strip 4 – absorbing cotton
5 – hinge assembly
Removal and Replacement
1. Remove shell. (see shell removal and installation)
2. Take out absorbing cotton.
3. Take off spring holder from the slot of bottom board.
Caution: This operation must be more carefully, it is easy to be injured by the friction strip.
Hinge assembly and Spring system
