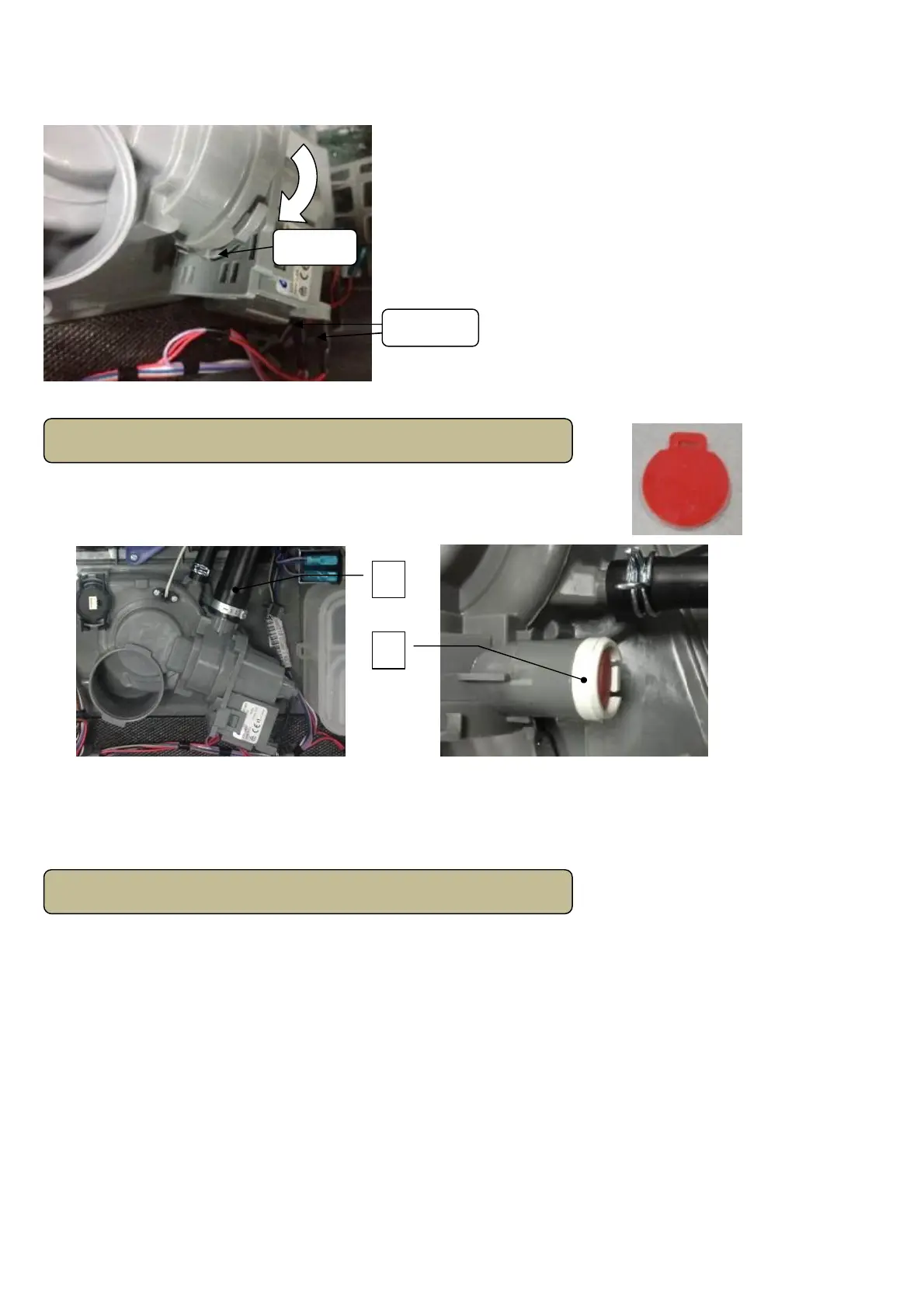

2. Pull out all terminals of drain pump assembly.
3. Unfit snap of drain pump assembly, and contrarotate drain pump assembly to take it out.
4. Reverse the above procedure to install. And check out all connectors connected well.
Removal and replacement
1. Remove cover of bottom board. (see main control board removal and
replacement)
2. Remove clamp fixing inner drain hose to bottom board, and pull it out .
Part Name: 1 – inner drain hose 2 –check plate assembly
3. Pull out check plate from check plate holder, and replace a new check plate.
4. Reverse the above procedure to install. And check out all connectors connects well.
Removal and Replacement
1. Remove cover of bottom board. (see main control board removal and replacement)
2. Pull out all terminals of inlet valve.
Terminals
1
2
To Next Page
