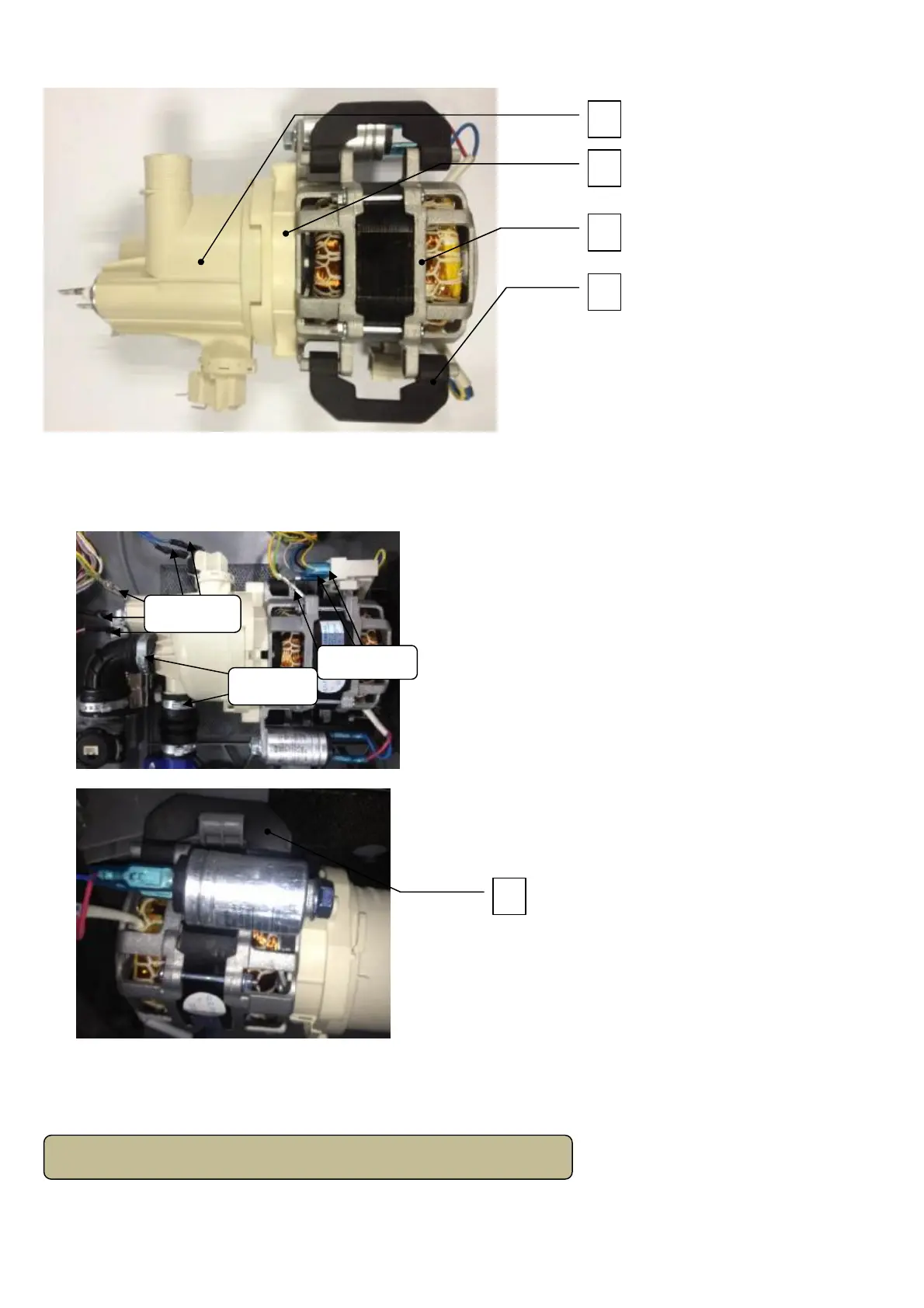

Part Name: 1

–

heating pump assembly

–

lower pump cover

3 – motor assembly 4 – motor hunger

Removal and Replacement

1. Remove cover of bottom board. (see main control board removal and replacement)

2. Pull out all terminals of heating pump motor assembly.

Part Name: 1 – motor hunger

3. Remove clamps fixing heating pump motor assembly to sump of bottom board.

4. Unfit motor hungers fixing heating pump motor assembly to bottom board.

5. Reverse the above procedure to install. And check out all connectors connected well.

Heating pump

assembly

Clamps

Terminals

Terminal

Midea WQP6-3602E Series User Manual
