14

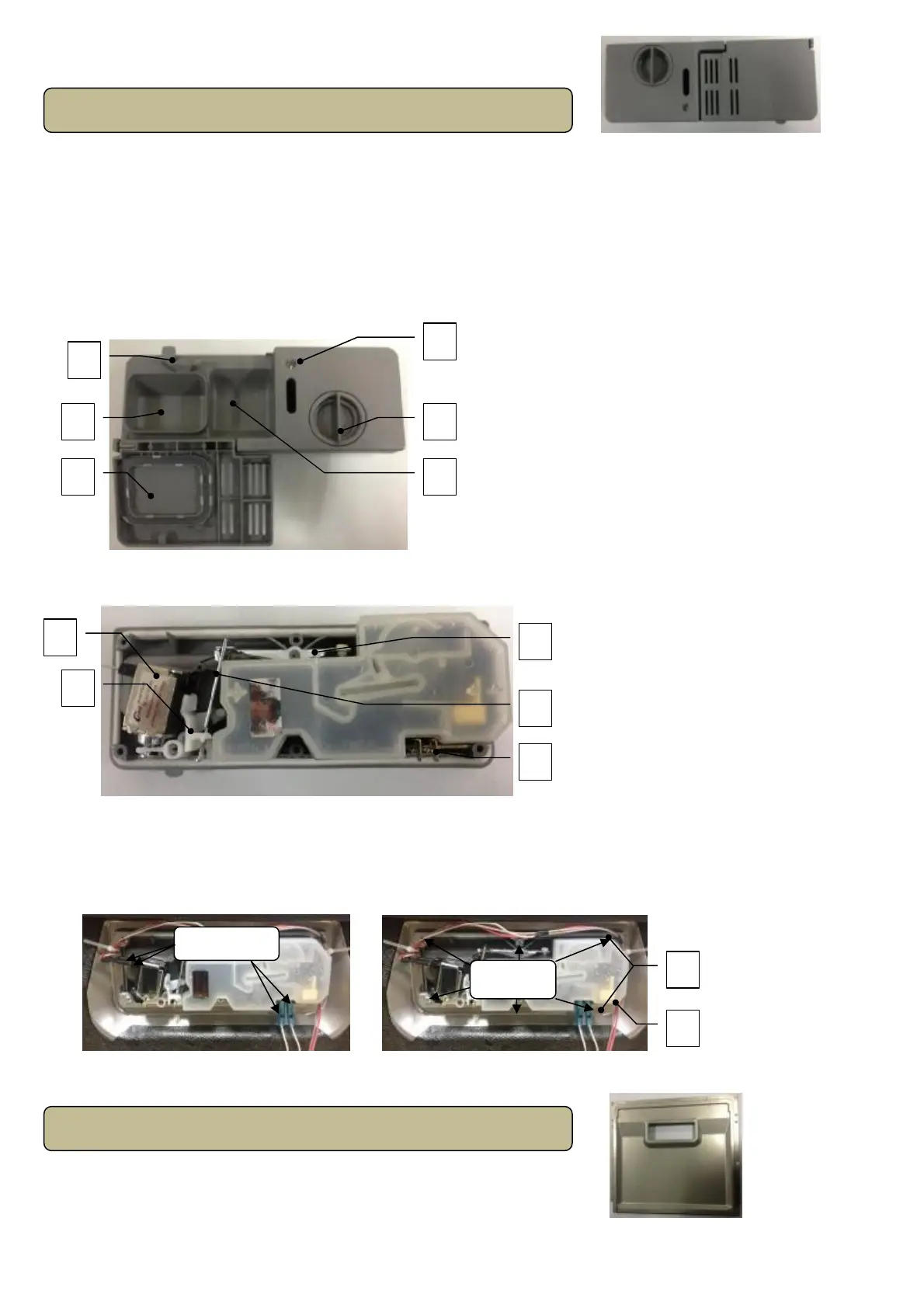

The dispenser automatically dispenses both the detergent and the rinse agent at the appropriate
times. The dispenser is activated twice during a wash cycle.
The first time, the dispenser is activated, the lever slides up the right-hand path of the
connecting rod. This action moves the cover catch and releases the detergent cover. When
deactivated, the lever resets to rest under the notch in the center of the connecting rod. When
activated for the second time in a cycle, the lever lifts the connecting rod by the notch, lifting
the rinse dispenser plunger and releasing the rinse agent. When deactivated, the lever returns
to its original starting position. The magnetic sensor is connected to rinse aid warning light at
control panel by wires. When the indicator lights up, it should add more rinse aid.
3 – cover 4 –sight glass 5 – rinse agent cap
6 – detergent tablet compartment
3 – plunger 4 – connecting rod
5 – magnetic sensor
Removal and Replacement
1. Remove outer door assembly. (see outer door removal and installation)
2. Pull out all terminals of dispenser. Then remove all screws for fixing dispenser.
3. Reverse the above procedure to install. And check out all connectors connected well.
Caution: Inner door of edges are sharp.
5
1
2
3
4
6
4
1
2
3
5
2
1
Screws
