Midmark 630 - Smart Sensor Switches; Smart Sensor Switch Locations

English-39
004-1055-00
TP210 Rev. A
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 |
[Revised: mo/dd/yr]
Foot Sensor
Switches (NC)
Foot Extension
Switch (NO)
Treatment Pan
Switch (NO)
Smart Sensor Switches
Isolating a Malfunction

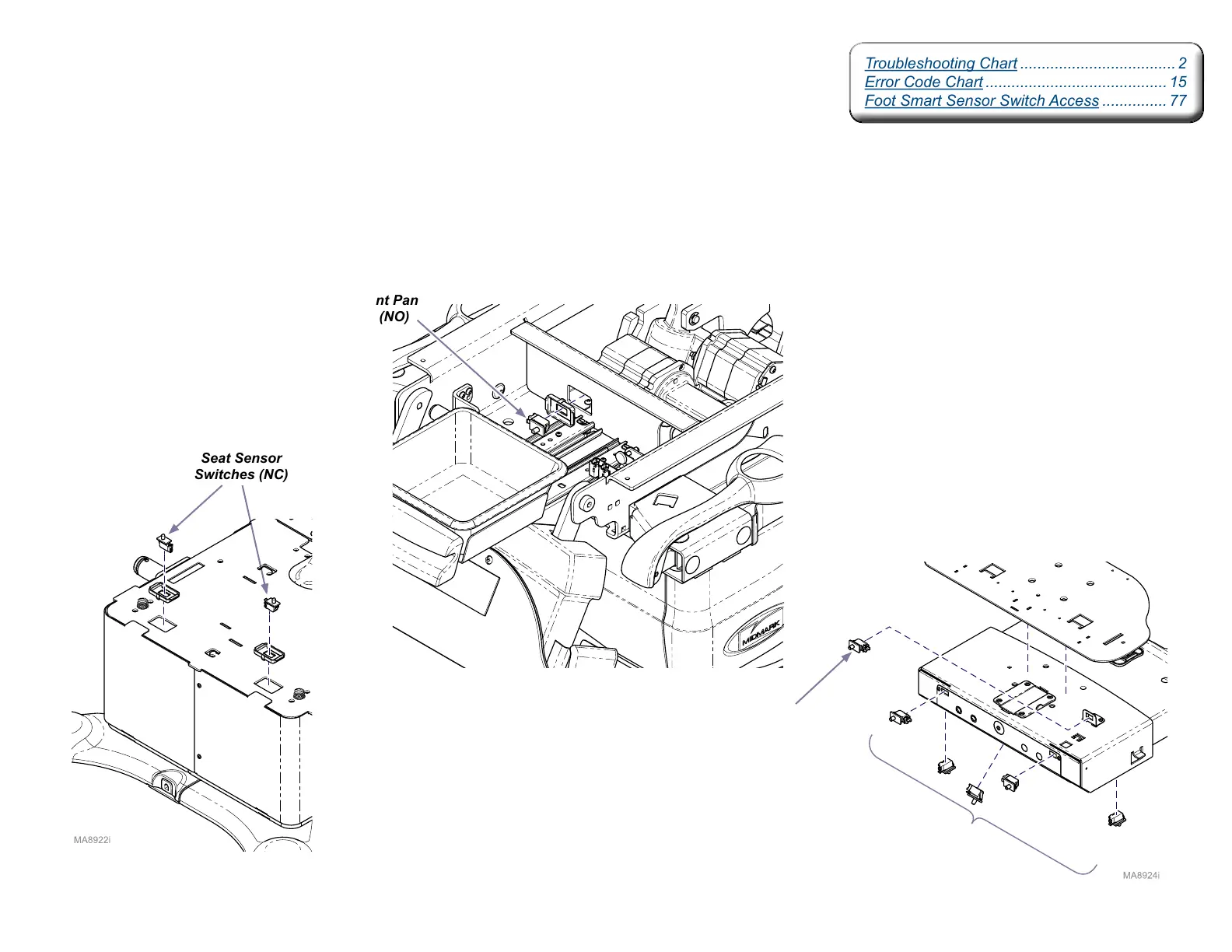

This illustration shows the Smart Sensor Switches and their location.
Seat Sensor
Switches (NC)
Troubleshooting Chart .................................... 2
Error Code Chart .......................................... 15
Foot Smart Sensor Switch Access ............... 77
Troubleshooting Chart .................................... 2
Error Code Chart .......................................... 15
Foot Smart Sensor Switch Access ............... 77
midmark.com
Style A
