Power Toroid
Isolating a Malfunction

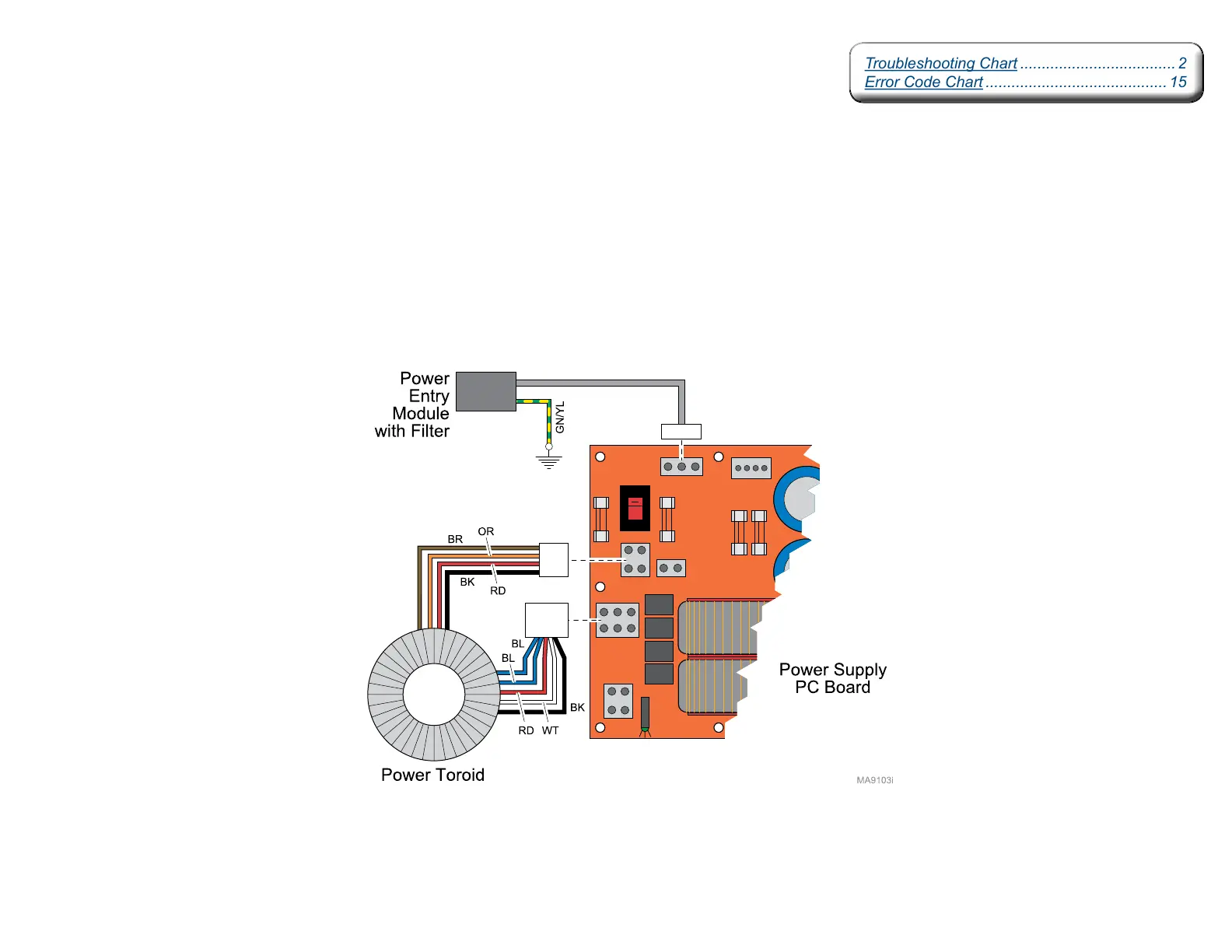

Supply voltage (115 VAC) is supplied to the Power Toroid thru J9 on the Power Supply PC Board.
The Power Toroid then supplies +25 VAC and -25 VAC thru the Blue wires at J10 to power
the Power Supply PC Board, with the Red wire used as the common.
The Power Toroid supplies voltage (115 VAC) thru the Black and White wires at J10 to power the
table receptacles (J13).
