Rotational Base Brake System - continued
Separating Upper & Lower Base Castings - continued
WARNING
The steps on this page require power to be connected to the
table. Avoid all contact with wiring & electrical components.

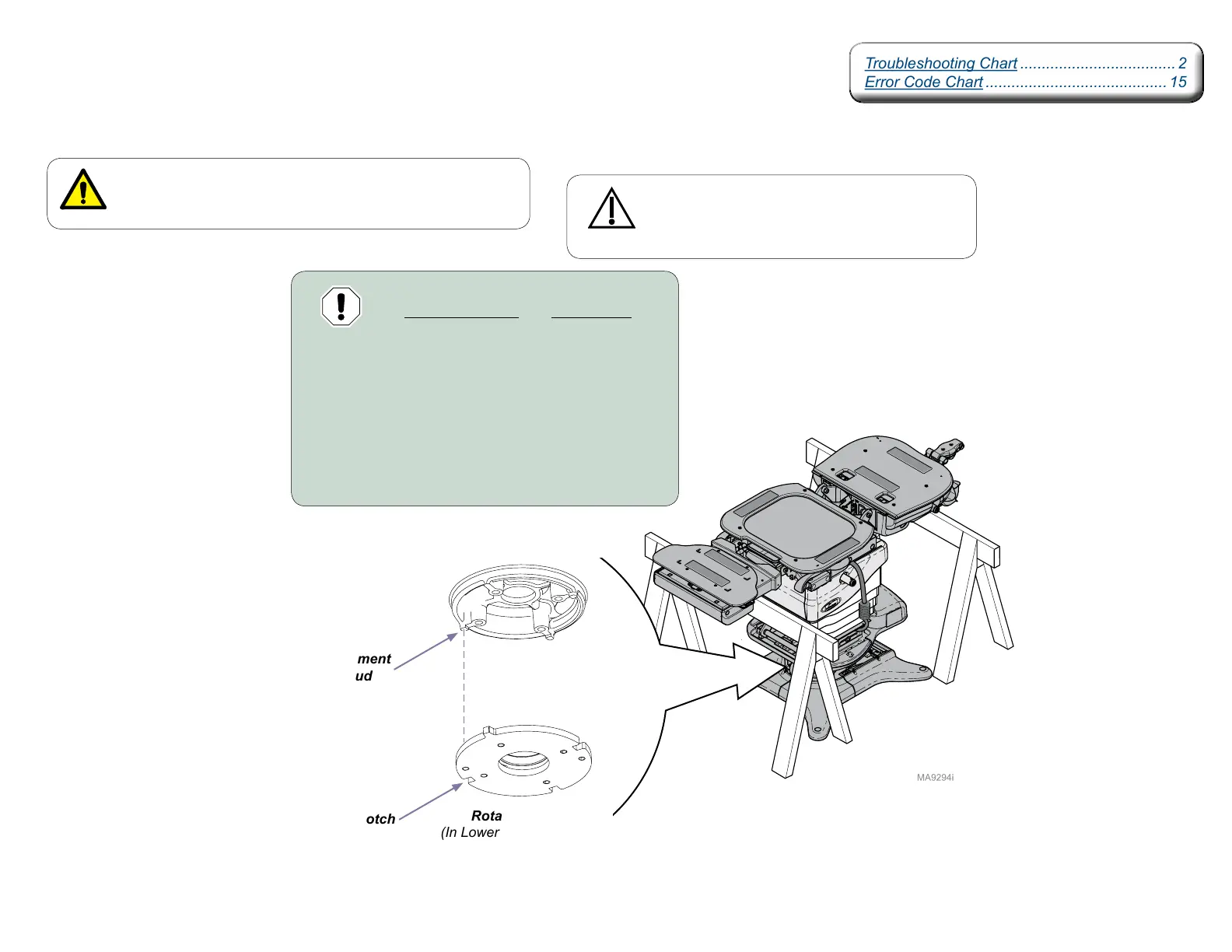

Alignment
Stud
Notch
Upper Base Casting
(bottom view)
Rotation Wheel
(In Lower Base Assembly)
Equipment Alert
The wire connections and wire routing
must be put back in original locations.
Step 6:
A) Connect and secure wire connections.
B) Carefully adjust table top until alignment studs
on bottom of upper casting lock into the notches
in the rotation wheel.
Note: You will feel the table drop into place when alignment
studs engage notches.
Procedure continued on following page...
