Rotational Base Brake System - continued

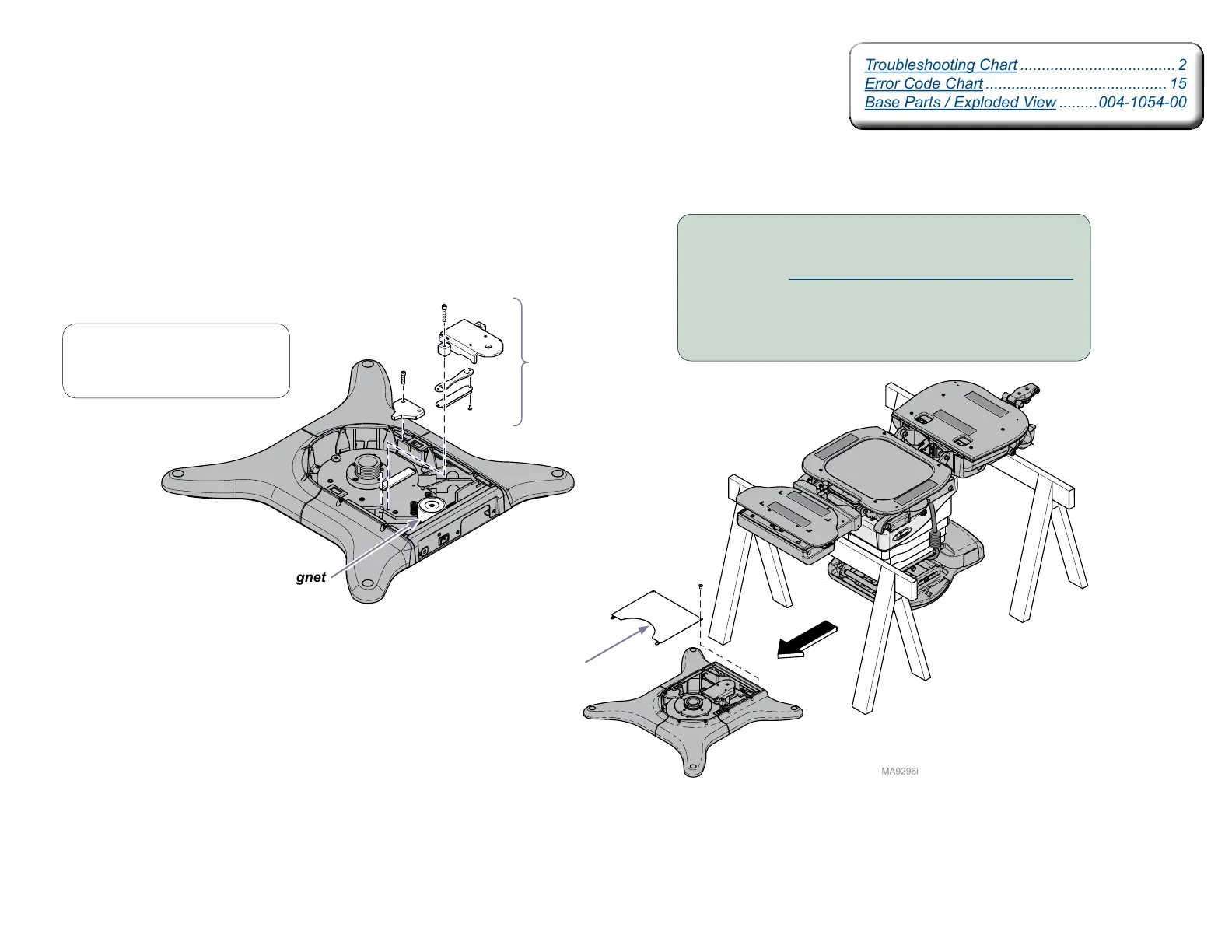

Brake, Electro-magnet Access
Brake
Components
Electro-magnet
Step 1:
A) Separate upper and lower base castings.
(Refer to: Separating Upper & Lower Base Casting.
B) Remove lower base top cover.
Note: To reference a complete assembly breakdown,
refer to Base Parts / Exploded View.
Top
Cover
Troubleshooting Chart .................................... 2
Error Code Chart .......................................... 15
Base Parts / Exploded View .........004-1054-00
Troubleshooting Chart .................................... 2
Error Code Chart .......................................... 15
Base Parts / Exploded View .........004-1054-00
Note
Rotational bearing components
removed for clarity only.
midmark.com
Style A
