Midmark Preva - System Requirements

Preva Installation/Service Manual, 00-02-1577, Revision E01
7

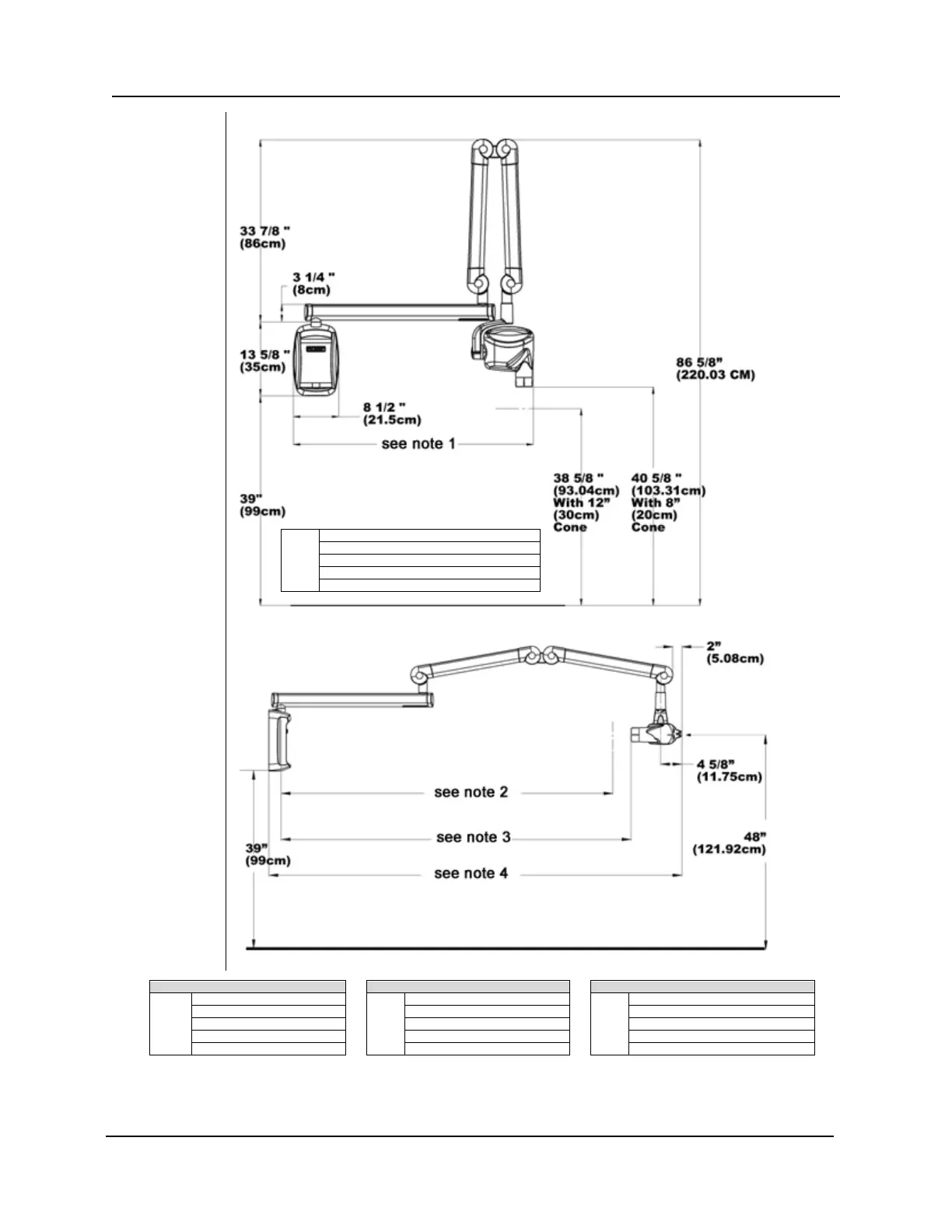

Figure 4
Retracted
Wall Mount
Figure 5
Extended
Position
Wall or
Cabinet
Mount
With 12" (30cm) cone
With 8" (20cm) cone
To handle
Note
2
P7015-P 52 1/2" (133 cm)
Note
3
P7015-P 56 1/2" ( 143.5 cm)
Note
4
P7015-P 70 3/8" (178.5 cm)
P7016-P 62 1/2" (159 cm)
P7016-P 66 1/2" (169 cm)
P7016-P 80 3/8" (204 cm)
P7017-P 72 1/2" (184 cm)
P7017-P 76 1/2" (194.5 cm)
P7017-P 90 3/8" (229.5 cm)
P7018-P 78 1/2 (199 cm)
P7018-P 82 1/2" (209.5 cm)
P7018-P 96 3/8” (244.5 cm)
(add 1" (2.5 cm) for Two Stud mount)
Note
1
P7015-P 24 5/8" ( 62.5 cm)
P7016-P 34 5/8" (88 cm)
P7017-P 44 5/8" (114 cm)
P7018-P 50 5/8 (128.5 cm)
(add 5" (12.7 cm) for Two Stud mount)
