Preva Installation/Service Manual, 00-02-1577, Revision E01
101

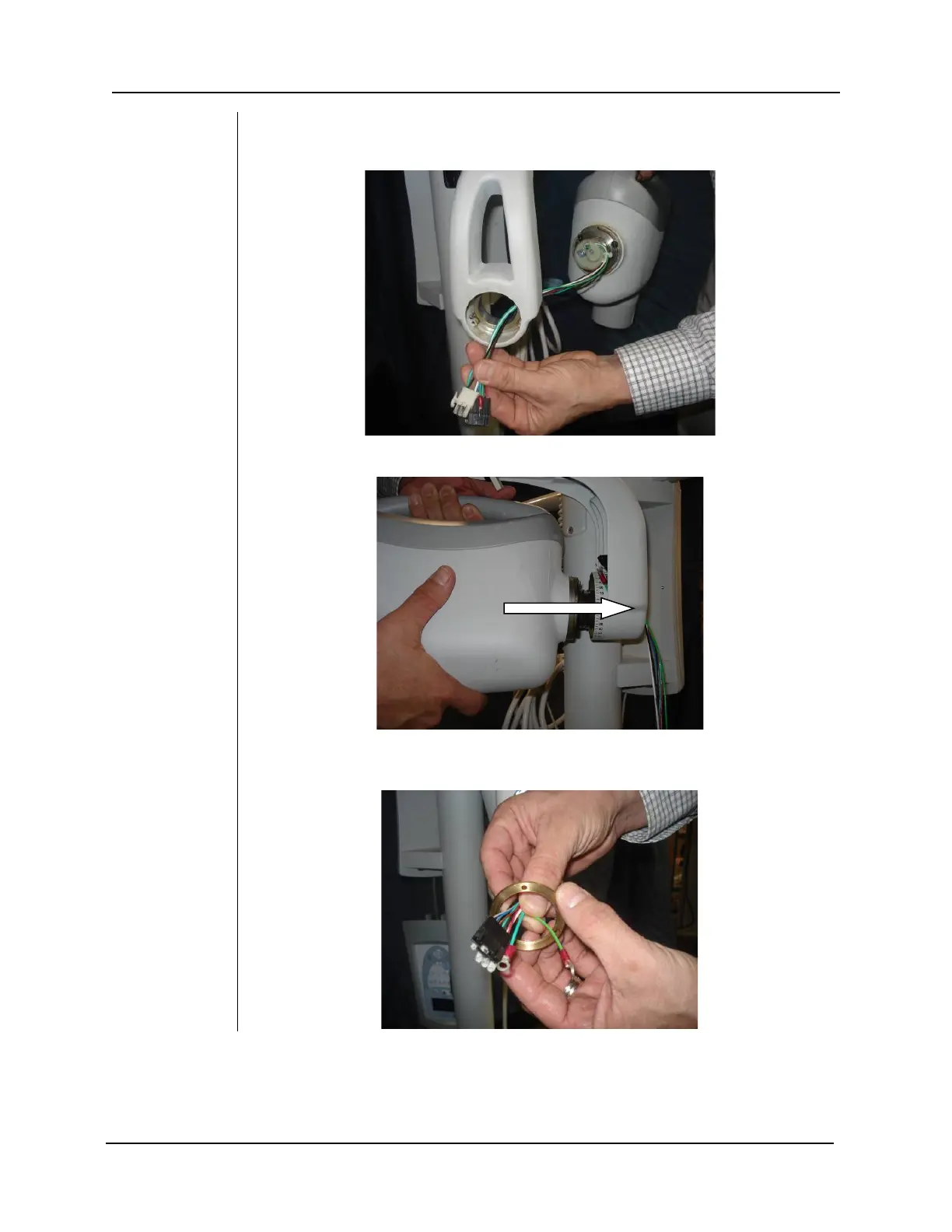

Figure 85
19. Feed the connectors and ground wires of the pre-assembled yoke cable
assembly through the opening of the yoke collar.
Figure 86
20. Insert the tubehead into the yoke collar
Figure 87
21. Feed the connectors and ground wire of the yoke cable through the first
spanner nut.
