Preva Installation/Service Manual, 00-02-1577, Revision E01
102

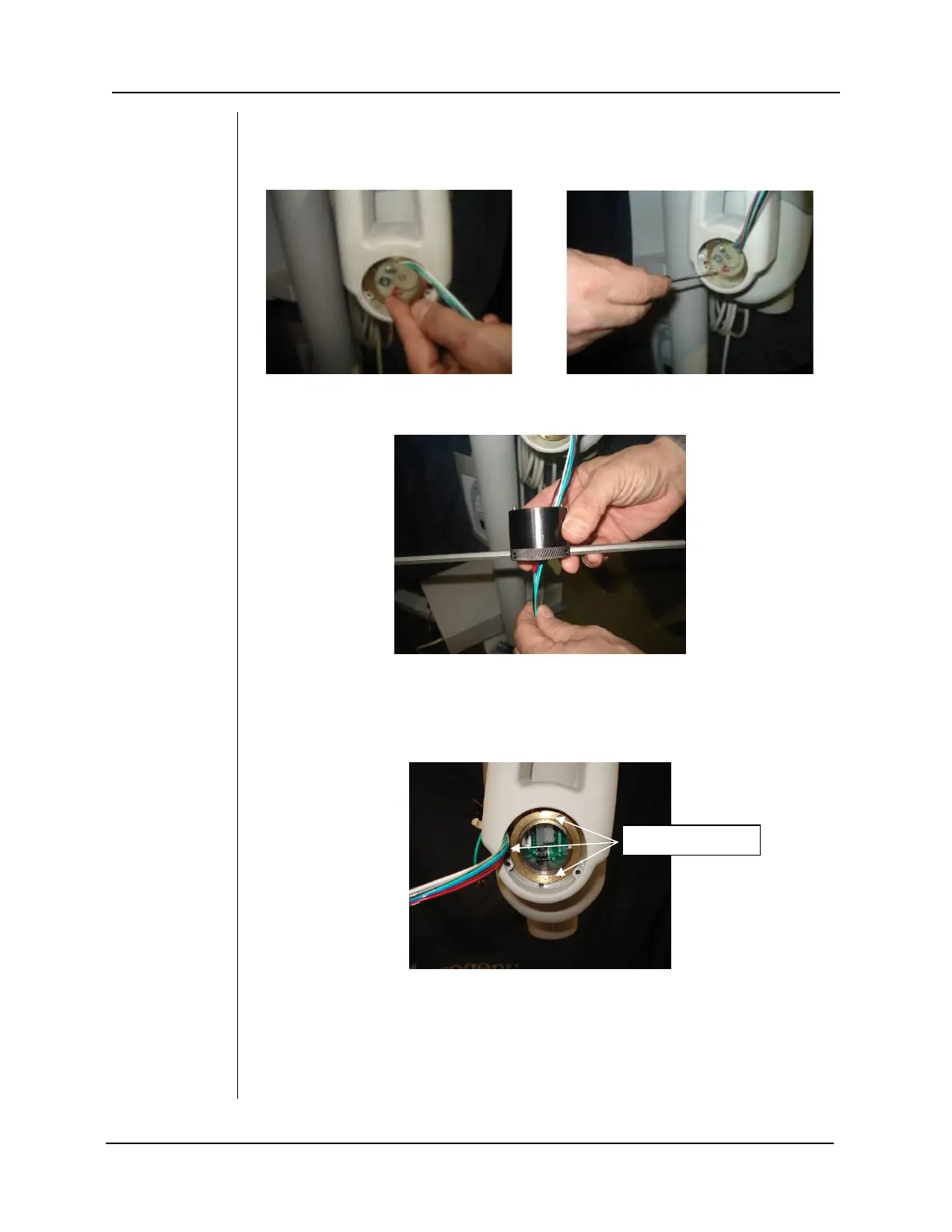

Figure 88
22. Manually thread the spanner nut on the tubehead shaft. Insert a small
screwdriver into one of the alignment holes to finish tightening the
spanner ring.
Figure 89
23. Feed the connectors and ground wire of the yoke cable through the
spanner wrench.
Figure 90
24. Align the three pins on the spanner wrench with the three holes in the
spanner nut.
NOTE: Take care not to pinch or cut any of the yoke cable assembly wires.
Doing so will cause intermittent exposure or no exposures.
25. Tighten the spanner nut.
26. Carefully remove the spanner wrench.
NOTE: Take care not to damage the connectors.
27. Repeat steps 21 through 26 for the second spanner nut.
