Preva Installation/Service Manual, 00-02-1577, Revision E01
130

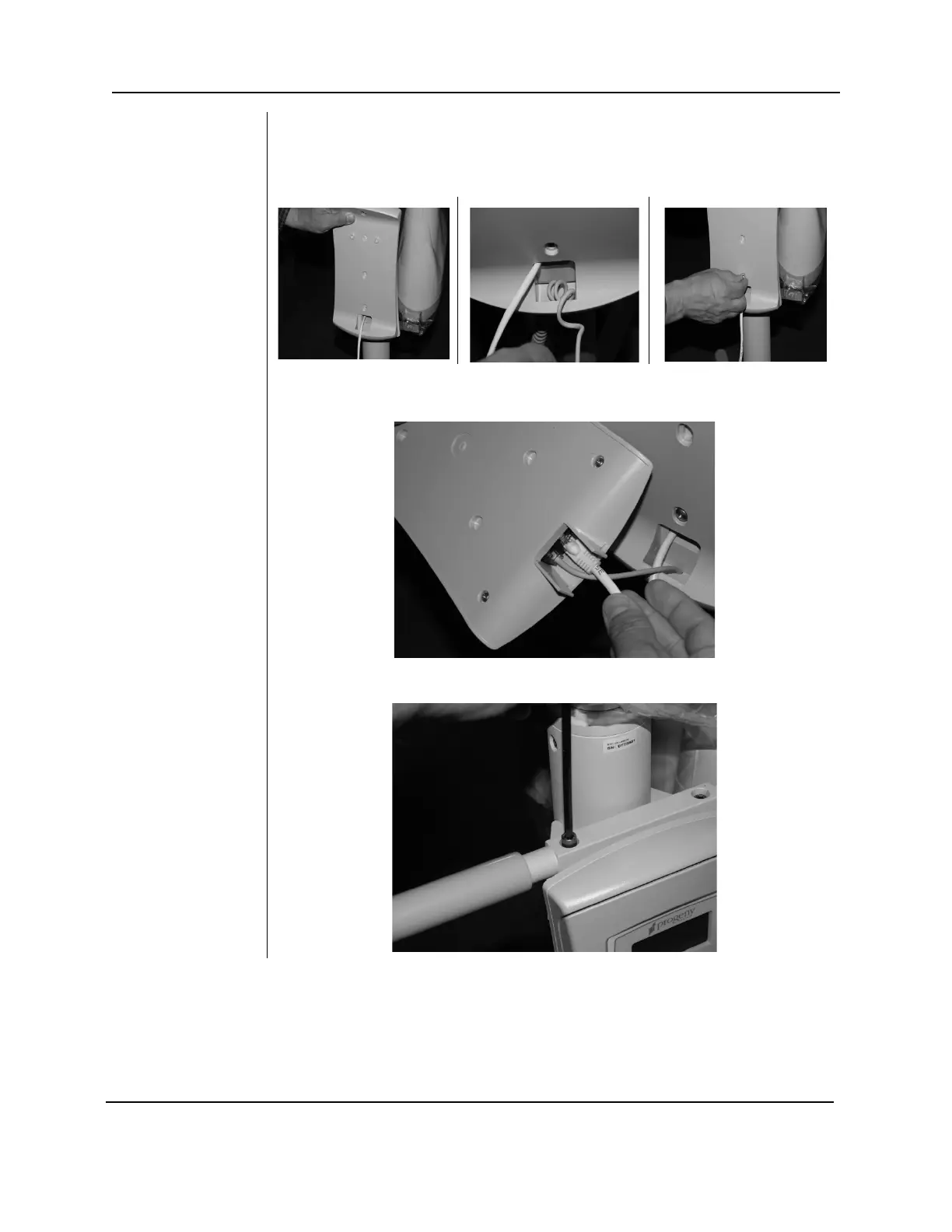

FIGURE 139
FIGURE 140
FIGURE 141
21. Feed the Cat5 cable through the Operator Panel Cradle. Feed remote
exposure cable through the bottom of cradle. NOTE: Allow a few coils
of slack inside for strain relief. Attach the cradle with supplied
FIGURE 142
22. Connect Cat5 cable and remote switch cable to the Operator Panel.
Mount the Operator Panel into cradle.
FIGURE 143
23. Install the mobile unit handle with the supplied hardware.
