Preva Installation/Service Manual, 00-02-1577, Revision E01
43

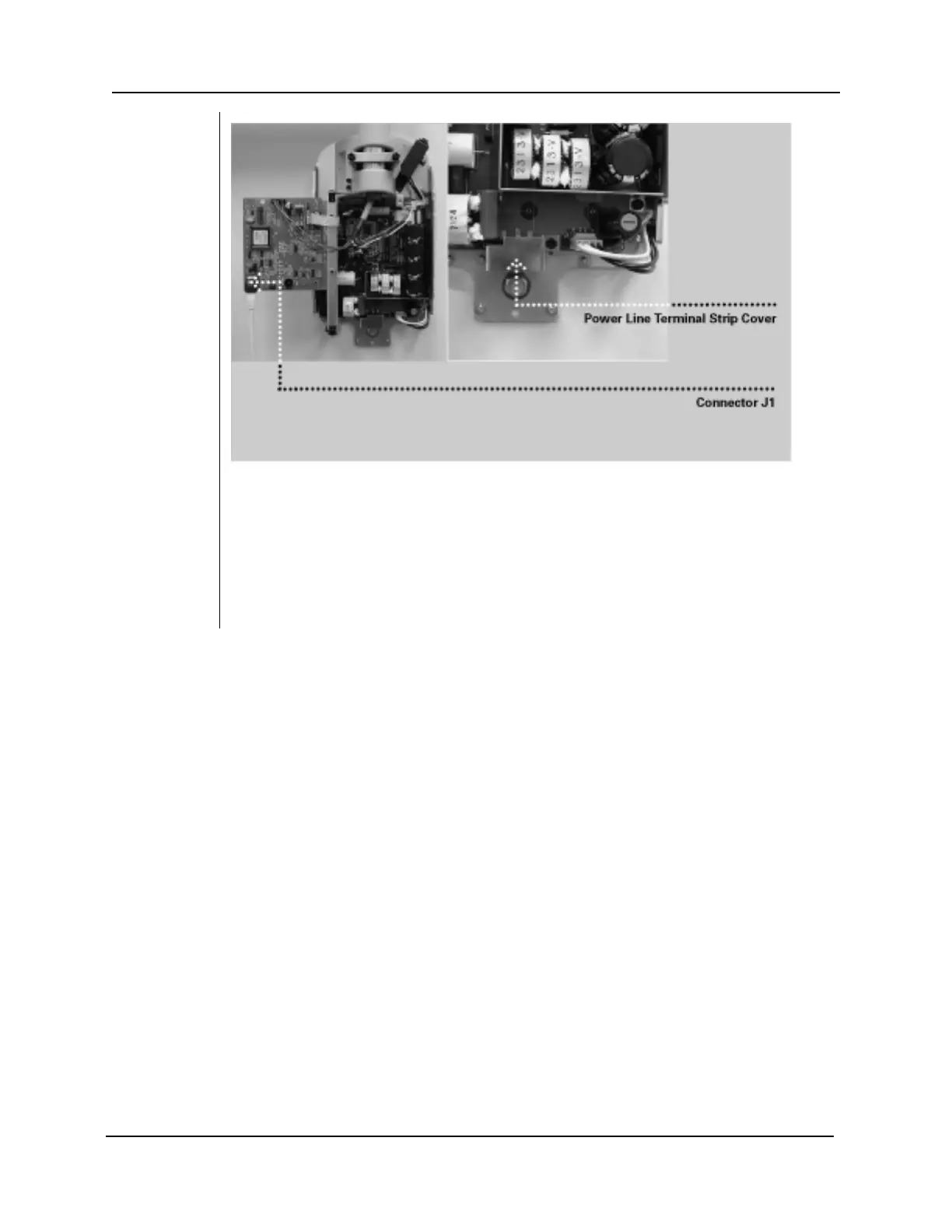

Figure 30
Power Line
Terminal
Strip Cover
the
Operator
Panel with
the 25 ft.
Cable
During initial powerup and verification, the Operator Panel is required. Connect the
Operator Panel with the 7.62 m (25 ft.) interconnect cable. The Operator Panel will be
connected later in its final position for use.
1. Identify the Operator Panel and the 7.62 m (25 ft.) interconnect cable.
2. Plug the cable into the left socket at the base of the Operator Panel.
3. Plug the other end of the cable into connector J1 on the Power Supply Control
Board 30-08160, as shown in Figure 30.
