Preva Installation/Service Manual, 00-02-1577, Revision E01
85

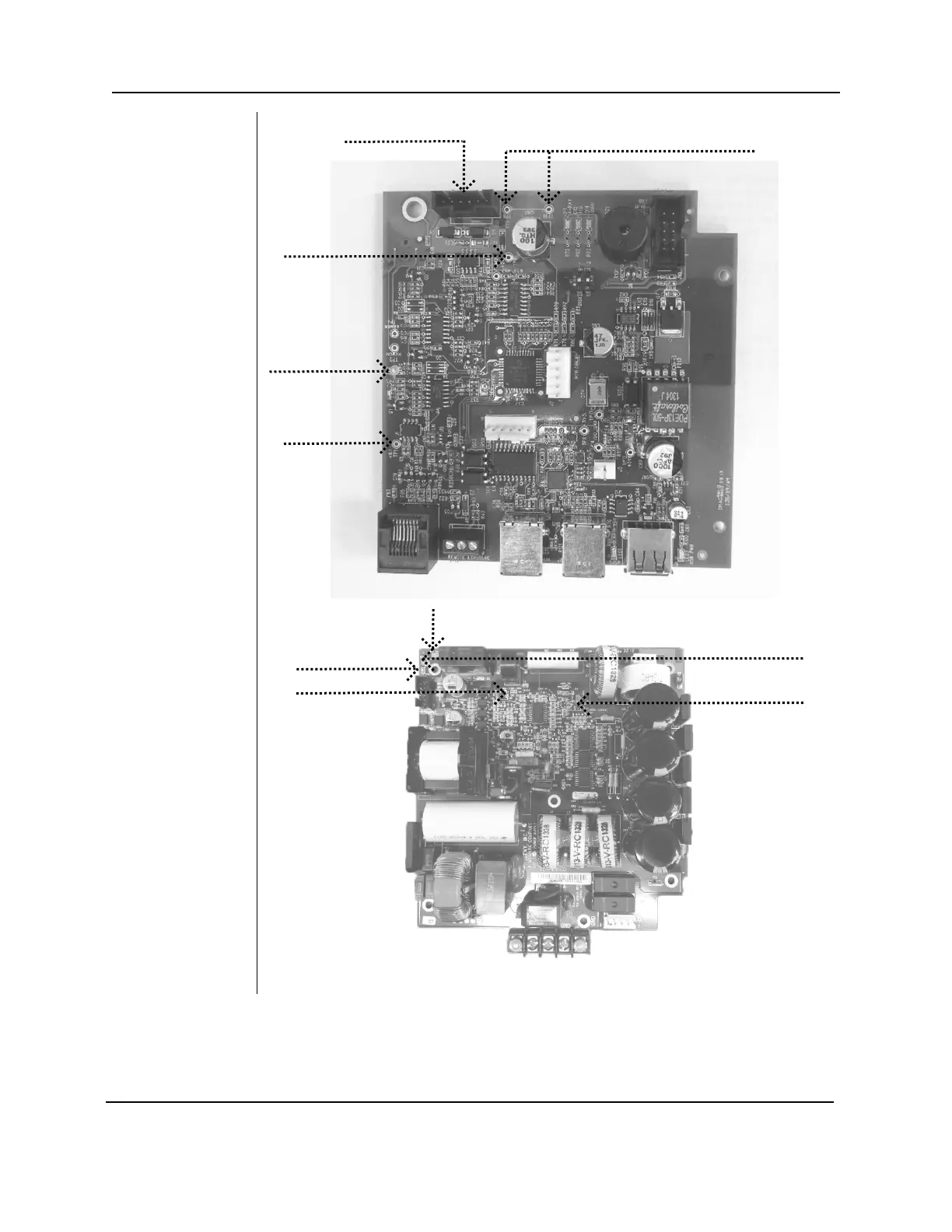

Figure 60
Logic Board
30-08160
Figure 61
Power Supply
Board 30-08041
TP9 +24V DC
Use TP8 or TP10 for Common Return when
measuring DC voltages.
TP2 mA Program
TP1 +8.1V DC
J3 Cable Connector
TP9
24Volts DC
TP2 + 8.1 and 24
Volts DC
Common Return
TP3 8.1 Volts DC
TP4 +12 Volts DC
TP5 +12 Volts
DC Common
