Chapter 3: Multi-Battery Test DSS-5000 HD
9. When prompted Idle the engine.
10. Turn on the high beam headlights and ventilation blower
motor.
11. When prompted, rev the engine to between 1000 to 1250
rpm and hold it there while the analyzer tests the alterna-
tor output again.
12. Tap Next.
13. Turn o the high beam headlights and ventilation blower
motor.
14. Return the engine to idle, then shut it o.
15. Tap Next to display the test results.

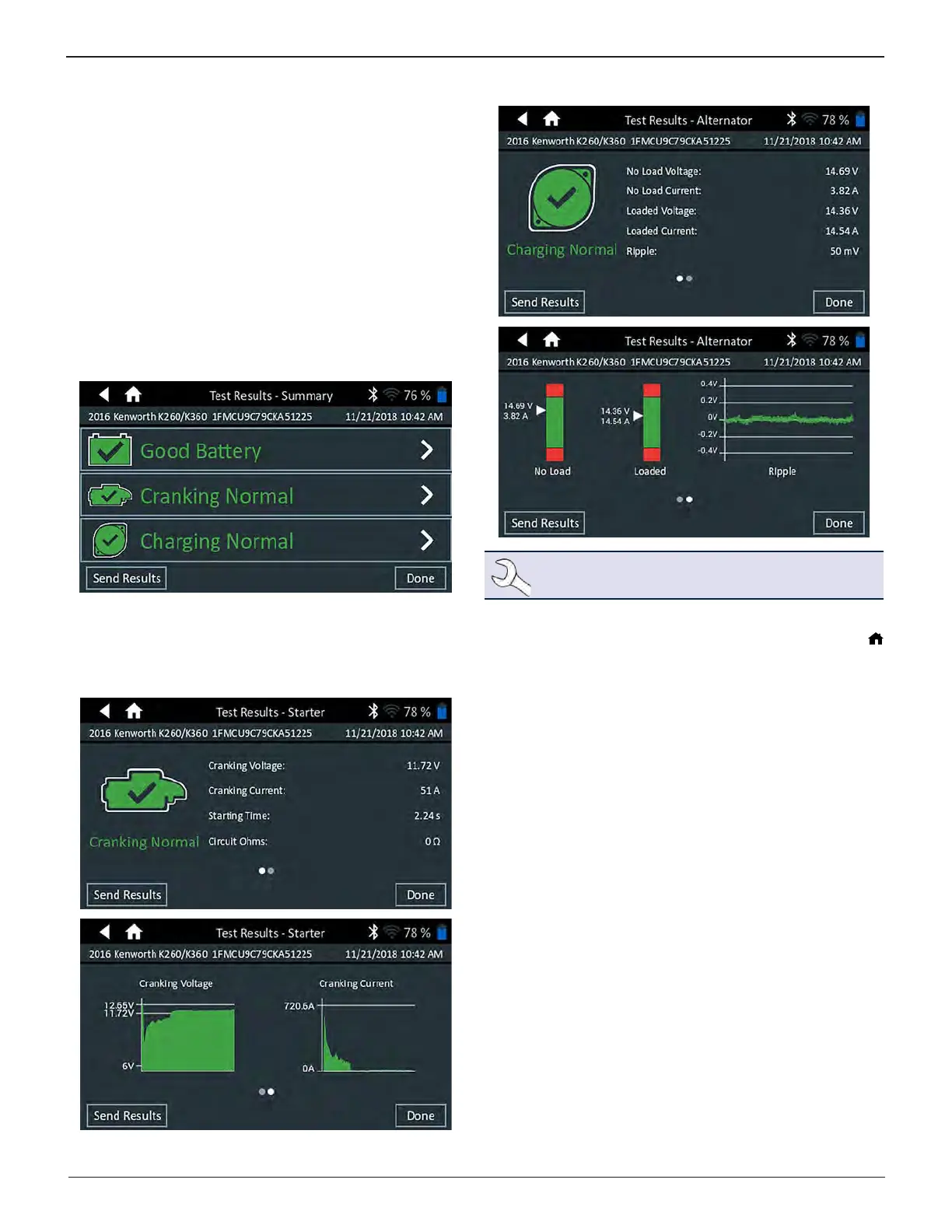

Test Results-Summary
A Test Results - Summary screen is displayed following a
System Test. Tap > to view detailed test results for each part
of the test.
Starter Test Results
Alternator Test Results
NOTE: See Appendix A for possible test result
descriptions.
To send the test results to a congured printer or via email tap
Send Results. To return to the Home Screen, tap Done or
to return to the Main Menu.
