24
Chapter 7: 24 Volt Test DSS-5000 HD

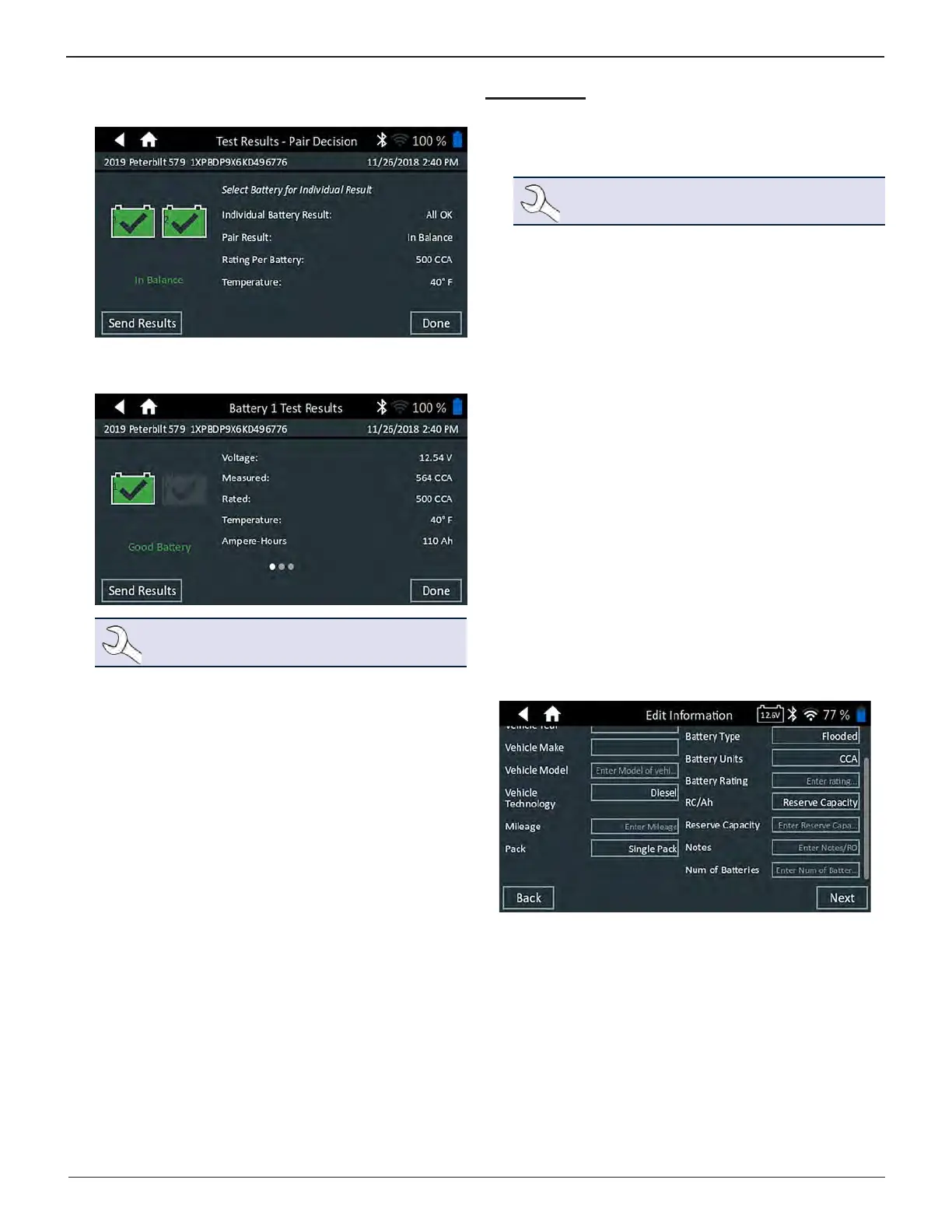

9. After the last battery in the pack has been tested, the re-
sults of the individual battery tests are displayed.
10. Tap the individual battery icons to view the specic result
for each battery.
NOTE: See Appendix A for possible test result
descriptions.
11. Tap Send Results to print or send the test results to a con-
gured printer. To return to the Home Screen, tap Done
or
reconnect the pack and tap System Test
to continue
.
System Test
1. If available, connect the optional Amp Clamp to the Tester
Pod and hold the clamp away from any cables with the
jaws closed.
NOTE: If the Amp Clamp is not being used,
begin the System Test at Step 4.
2. Tap Next to zero out the clamp or Skip if the Amp Clamp
is not being used.
3. With the engine and electrical loads o, place the Amp Clamp
around the negative (–) battery pack cable and tap
Next
.
4. Start the engine and let it idle.
5. Turn o all accessory loads such as the headlight high
beams and ventilation blower fan.
6. Tap Next. The analyzer tests the alternator output.
7. Turn on the high beam headlights and ventilation blower
motor.
8. When prompted, rev the engine to between 1000 to 1250
rpm and hold it there while
the analyzer tests the alterna-
tor output again.
9. Tap Next.
10. Turn o the high beam headlights and ventilation blower
motor.
11. Return the engine to idle, then shut it o.
12. Tap Next to display the test results.
Test Results-Summary
A Test Results - Summary screen is displayed following a
System Test. Tap > to view detailed test results for each part
of the test.
