Midway Blitz - CPU Board Jumper Configuration

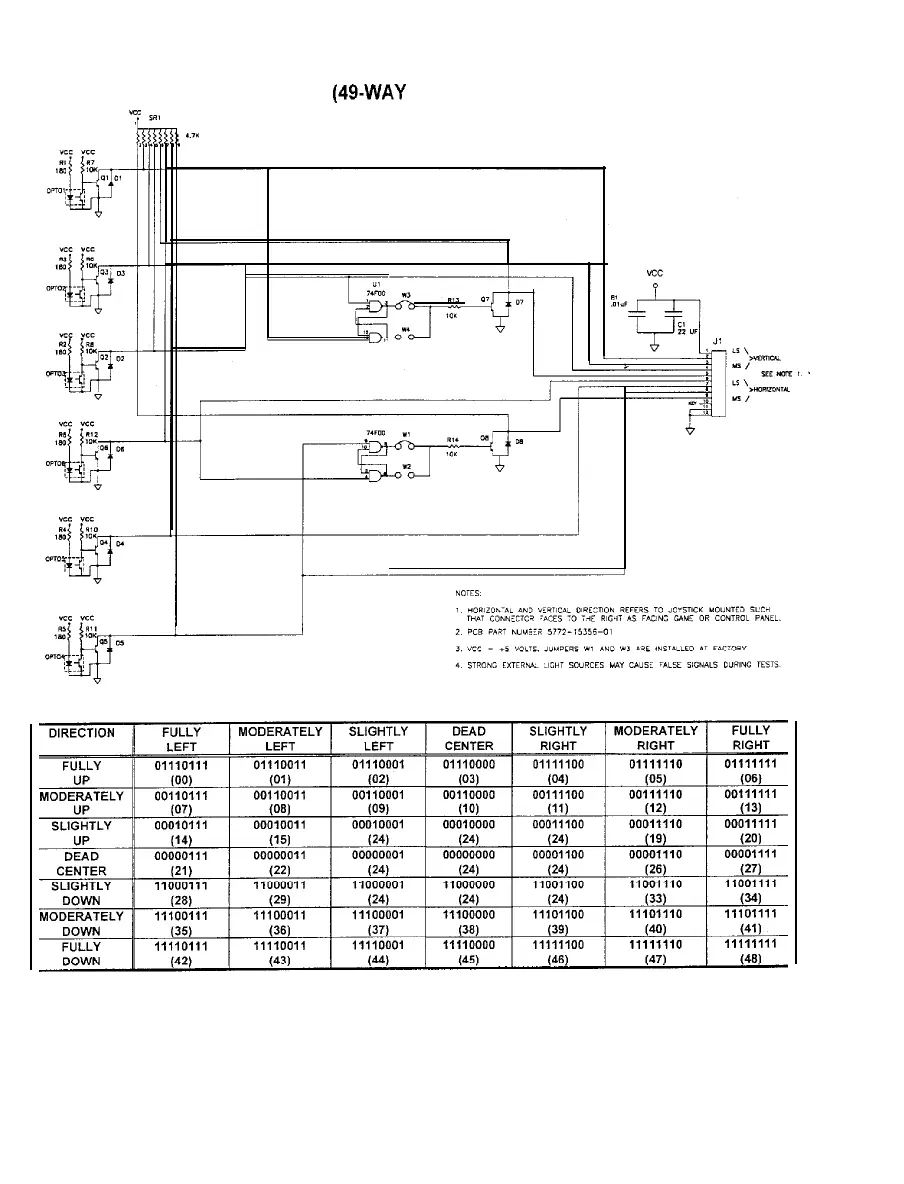

CONTROL WIRING DIAGRAM
(49-WAY JOYSTICK)
POSITION LOGIC TABLE
NOTE: 1. Connector pin sequence for the above data isas
follows. 9 8 7 6 5 4 3 2 referred to ground at pin 12.
2. Numbers in parentheses are found in the Switch Test. Program does not use the “slightly” positions
3-4
