Parts 7-30

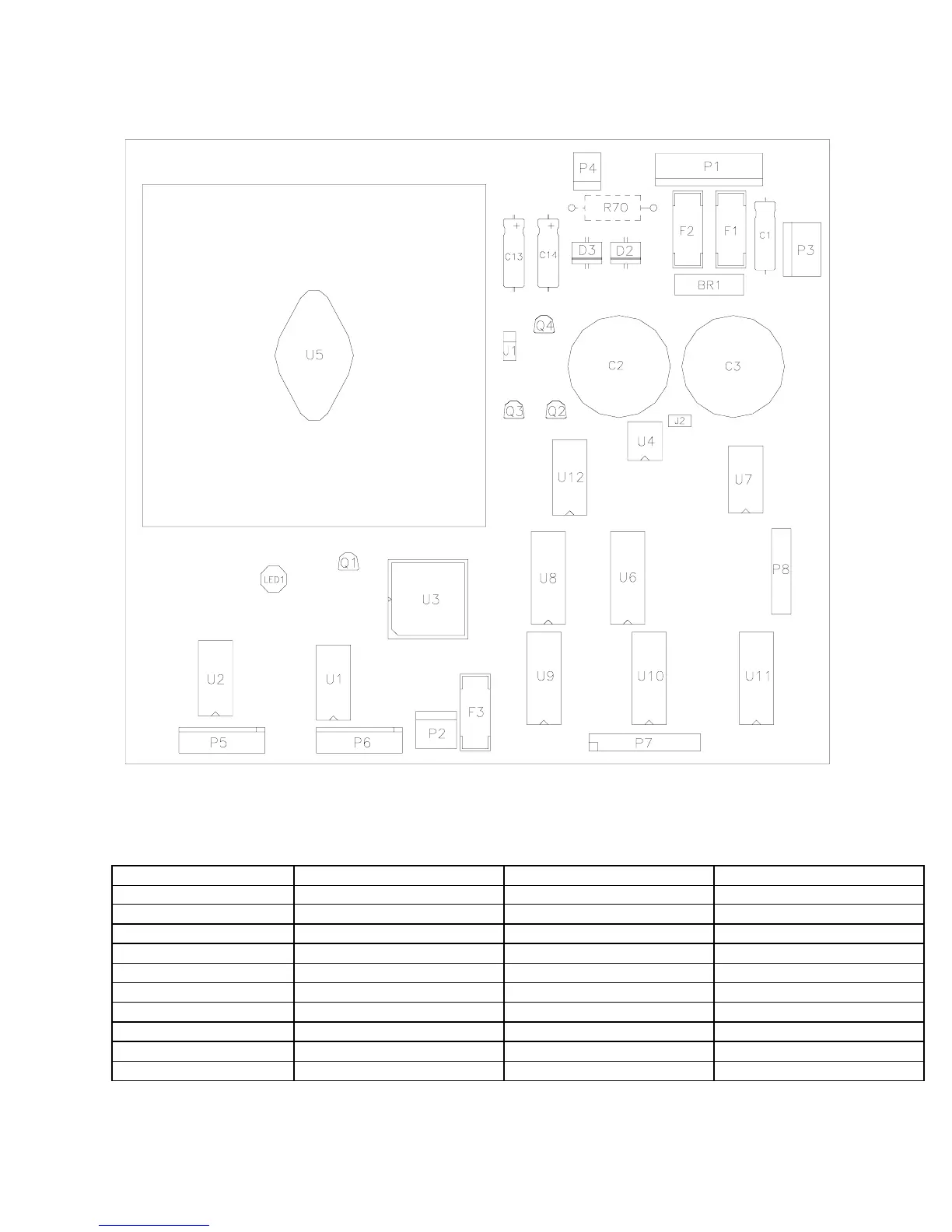

Wheel Driver Board Assembly 04-12770.1
Field Replaceable Parts
Component Description Board Location Part Number
-- TO-92 Device Q4 Not Used
Darlington 2N6427 NPN Q1
5162-08976-00
Diode Fast FE6B-35nS D2, D3
5070-16272-00
Driver, Power LM12 Op Amplifier U5
5370-14069-00
Fuse 0.63AFB, 250V, 5x20mm F3
5731-15627-00
Fuse 4ASB, 125V, 5x20mm F1, F2
5731-14094-00
Pre-Driver ULN2064B IC U1, U2
5370-12602-00
Rectifier, Bridge 100V, 6A, SIP BR1
5100-13945-01
Regulator, Voltage 78L15, 15VDC, TO-92 Q2
5250-15624-00
Regulator, Voltage 79L15, -15VDC, TO-92 Q3
5250-15625-00
