Wiring & Circuit Information 4-9

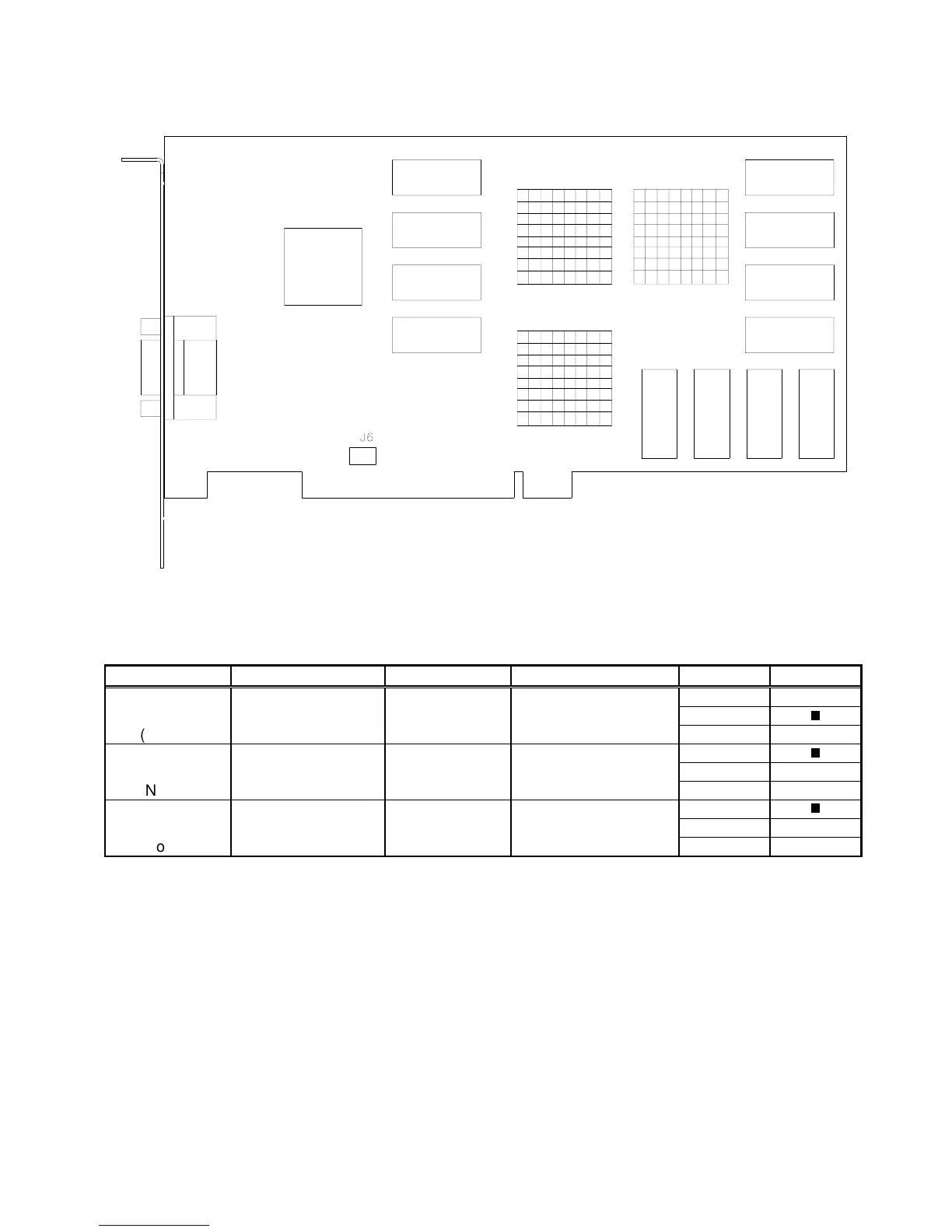

Video Graphics Board Assembly 20-10551
Video Graphics Connector And Jumper Table
Designation Location Function Meaning Setting Default
J1 Left Center Video Graphic Open
(DB-15 on Signal Information 1-15
(Note 1) Bracket) Output To Interface
J2-J7 None --- Not Used Open
(Note 2)
JP2 None --- Not Used Open
(Note 2)
Notes:
1. Connects to Interface Board through shielded cable. Doesn’t connect directly to monitor.
2. Manufacturer option connectors and jumpers. Not required for this VGM.
