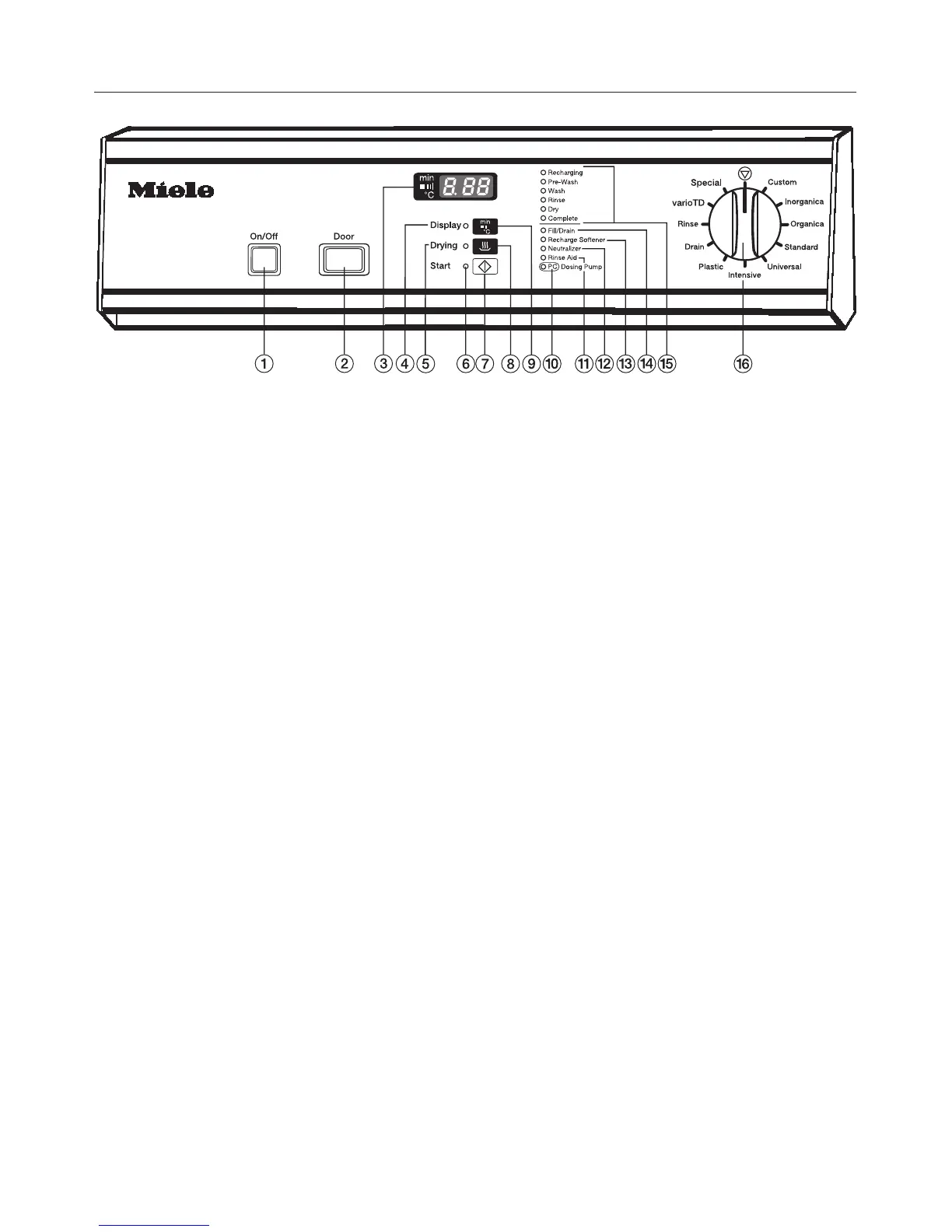

a "On/Off" button
b "Door" button
c Display
d "Display" indicator
e "Drying" indicator
f "Start" indicator
g "Start" 6 button
h "Drying" 0 button
i "Display" ß button
(toggles between the elapsed time,
active wash blocks and actual
temperature displays)
j "8 Dosing pump" indicator *
k "Rinse aid" indicator
l "Neutralizer indicator
m "Recharge Softener" indicator
n "Fill/Drain" indicator
o Program sequence display
p Program selector
* (only with optional DOS-Module G 60)
Guide to the laboratory glassware washer
9
