Guide to the machine
11

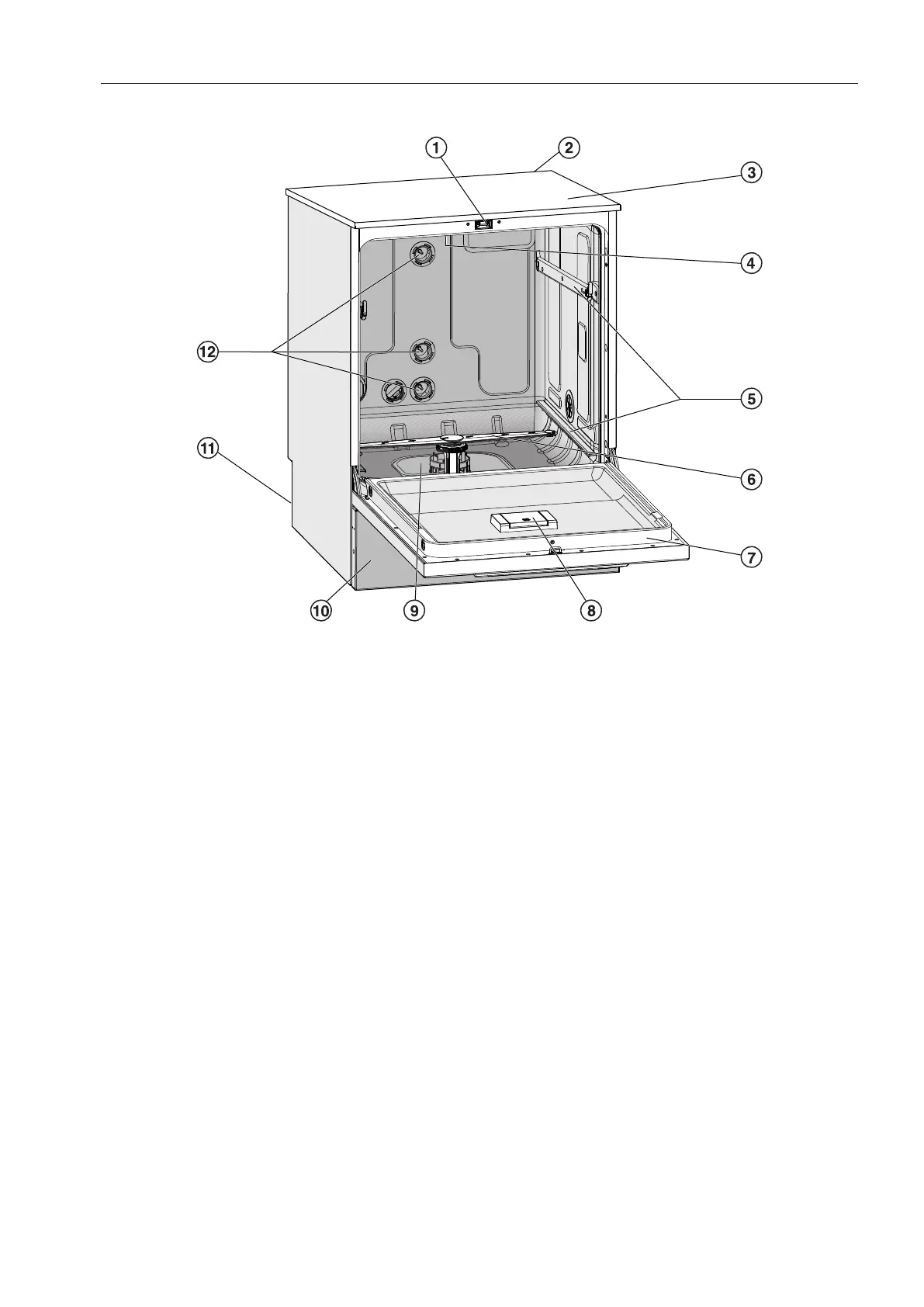

Overview
a
Comfort door locking mechanism
b
Module slot for a communication module
(Back, right, top)
c
Test point for performance checks
(Top, front right; only visible with lid
removed)
d
Upper machine spray arm
e
Rails for baskets and mobile units
f
Lower machine spray arm
g
Data plate
h
Salt reservoir
i
Filter combination
j
Plinth panel with service flap
k
On the back:
– Second data plate
– Electrical and plumbing connections
– Siphon(s) for external supply containers
– Connections for external dispensing
modules (DOS modules)
l
Plumbing connections for mobile units
and baskets
