Miele PW 6 7 Series - Figure D-2: Additional Components for D Version

Technical Information
11
PW 6xx7
Additional steam (D) components:

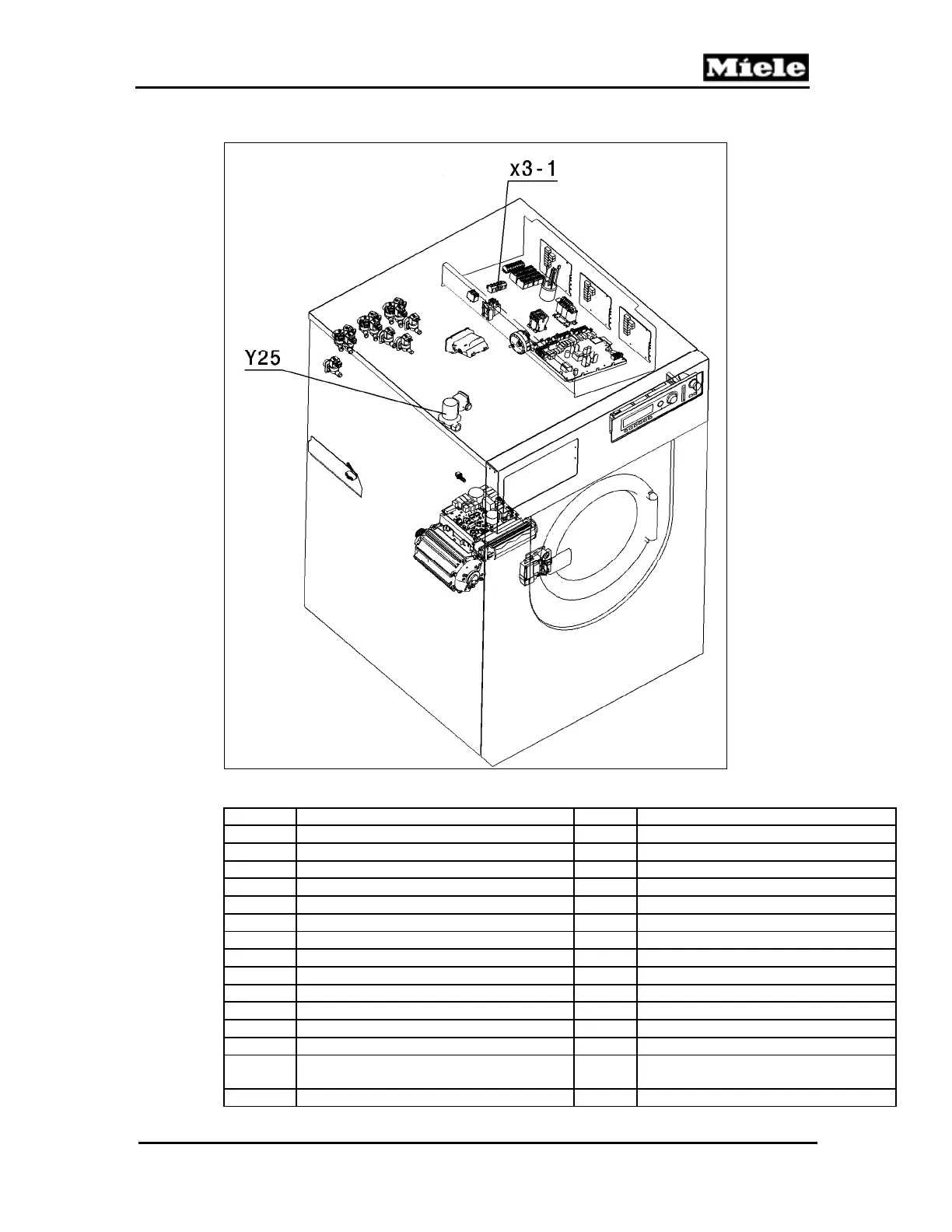

Figure D-2: Additional Components for D Version
A1
Selection-display module (BAE) EW 235
S2
On/off button
A2
Door lock
S30
Emergency off switch
B1-14
Boiling-dry protection
S76
Imbalance switch
B1-15
Weighing system sensor(s)
1T1
Transformer
F3
Drive motor winding protection
X
3-1
Terminal block
F7
Fine-wire fuse on ELP 235
X
3-3
Terminal block – Peak-load cut-out
F9
Safety cutout (fuse)
X
3-4
Terminal block(s) – Dispenser system
G1
Tachogenerator
Y5
Cold hard water valve(s)
K1-1
Heater relay/contactor(s)
Y6
Cold soft water valve(s)
K1-9
Drive relay/contactor
Y9
Hot soft water valve(s)
M2-1
Fan motor
Y11
Hot soft water valve (direct)
M5
Drive motor
Y13
Cold soft water valve (direct)
N1-3
Miele@home module
Y25
Steam-heating valve
N1B
Load module EB 230
1Y26
Drain valve (output)
N1D
Frequency converter (FU) electronic EFU
235
2Y26
Drain valve (intake)
N1L
Control-power module (SLT) ELP 235
Y39
Flush valve (liquid dispensing)
