Technical Information
21
PW 6xx7
100 Fascia Panel
1 Technical Data
Control component Abbreviation Electronic module
Selection-display module BAE EW 235
Control-power module SLT ELP 235
Multifunction module MFM ELZ 235
Frequency converter electronic EFU EFU 235
Table 100-1: Control System Parts
Electronic module Fuse Technical data
ELP 235 2 x fine-wire fuses 4A, T (slow-blow), 250V, DIN 41662
EW 235 - -
EFU 235 - -
Table 100-2: Fuses
2 Function
2.1 Profitronic M Washing

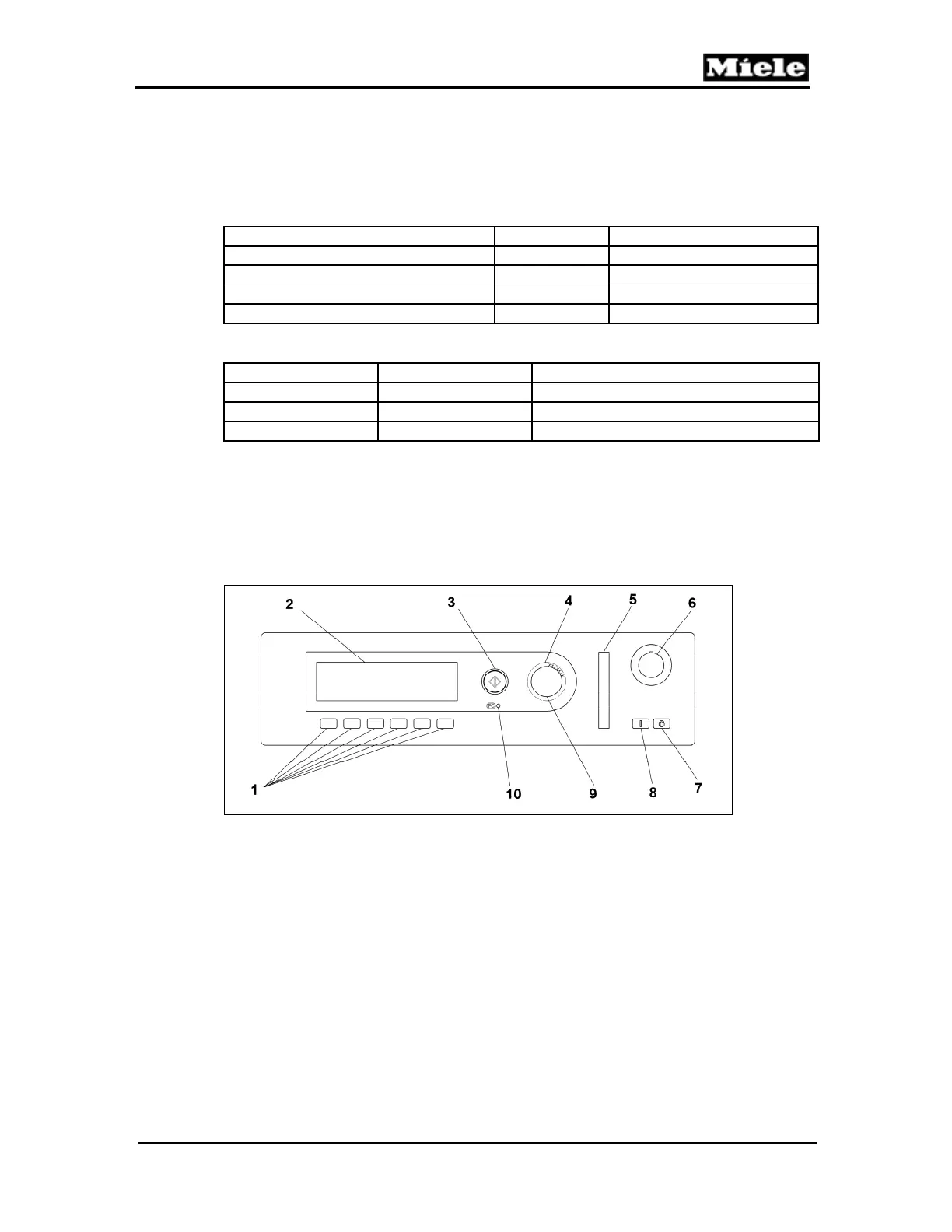

Figure 100-1: Profitronic M Control
1
Multifunction buttons 1 to 6
2
Display (64 lines x 220 columns)
3
Start button
4
Multifunction selector (outer ring)
5
Chip card reader slot
6
Emergency off switch
7
Off switch
8
On switch
9
OK button (center of multifunction selector switch)
10
Optical interface
The Profitronic M controls and regulates processes in commercial washer
extractors. It can save up to a maximum of 199 programs in 999 program
positions. The Profitronic M has a multifunction selector switch with OK
button, a graphic display (64 lines x 220 columns), a start button and 6
