MM571W / MM572W Installation Instructions 25

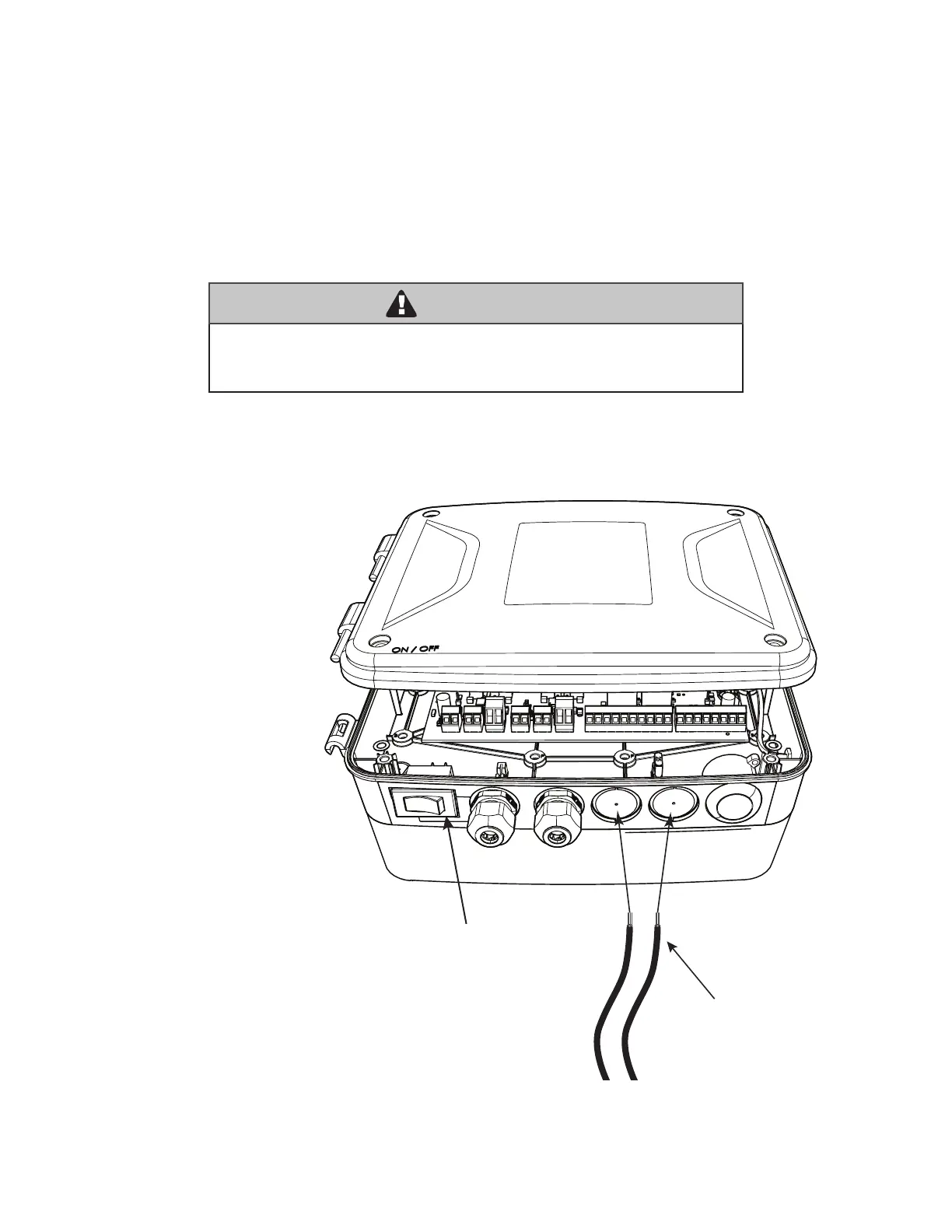

Wiring Accessories through Control Board Wiring Knockout
Carefully remove wiring
knockout plugs to insert
accessory wires.
Open the control box cover.
Close the control box cover.
Insert accessory wires
through the knockout and
route to the accessory input
terminals on the control
board.
(See pg. 12)
ON/OFF Switch
Accessory Wires
(Photo beams, keypad, etc.)
Mighty Mule strongly recommends the use of additional obstruction detection devices however we do not endorse any specic
brand names. Only use products that are listed to be in compliance with any applicable UL safety standards and national and
regional codes.
PLEASE NOTE: Contact sensors, non-contact sensors, shadow loops, etc. are not included with this product. Refer to the
sensor manufacturer’s instructions for information about installing accessory devices.
The Mighty Mule ONLY accepts accessory devices with normally open dry contact outputs.
Connecting Additional Devices
WARNING
Make sure the operator power switch is turned OFF before connecting
ANY device wiring to the terminals of the controller. Unplugging the
transformer does not turn power to the operator off.
