16 MM571W / MM572W Installation Instructions
CONNECTING THE OPERATOR(S) AND BATTERY
GRN
WHT
BAT+
RESET
BAT–
GRN
WHT
RED
BLU
RED
BLU
COM
COM
AUX
V+
AUX
V-
LOCK
V+
LOCK
V-
PRIMARY
SECONDARY
LOCK AUX
SW1
SW2
SECURE SEALING NUT
B
SEALING NUT

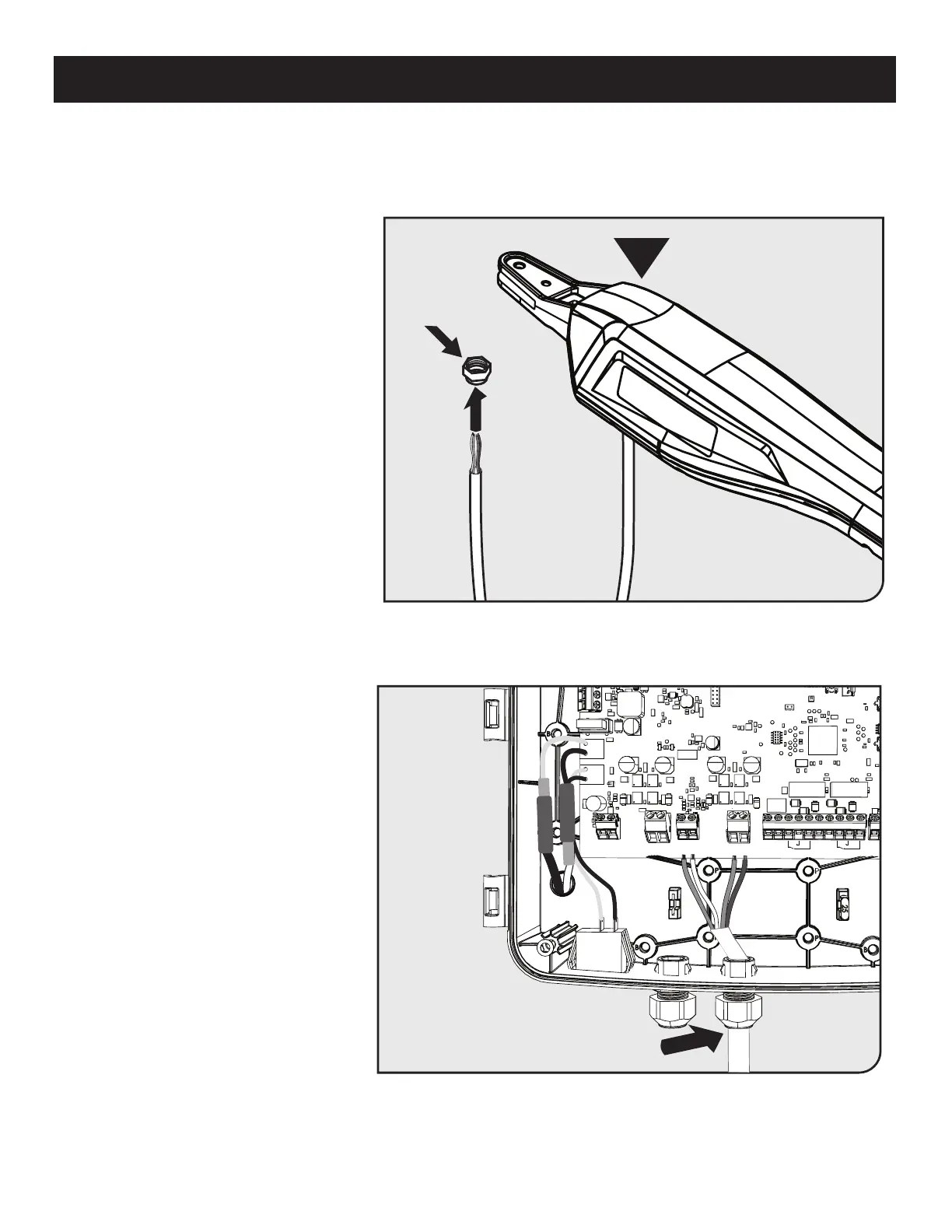

● Remove the sealing nut from one of
the cable glands on the bottom of the
control box.
● Feed the operator wiring harness
through the sealing nut.
● Insert the wire harness through the
cable gland into the control box at
least 3” to allow connection to the
operator wiring terminals.
● Secure the cable in place by
tightening the sealing nut.
Step 1
Step 2
