OM-350 Page 13

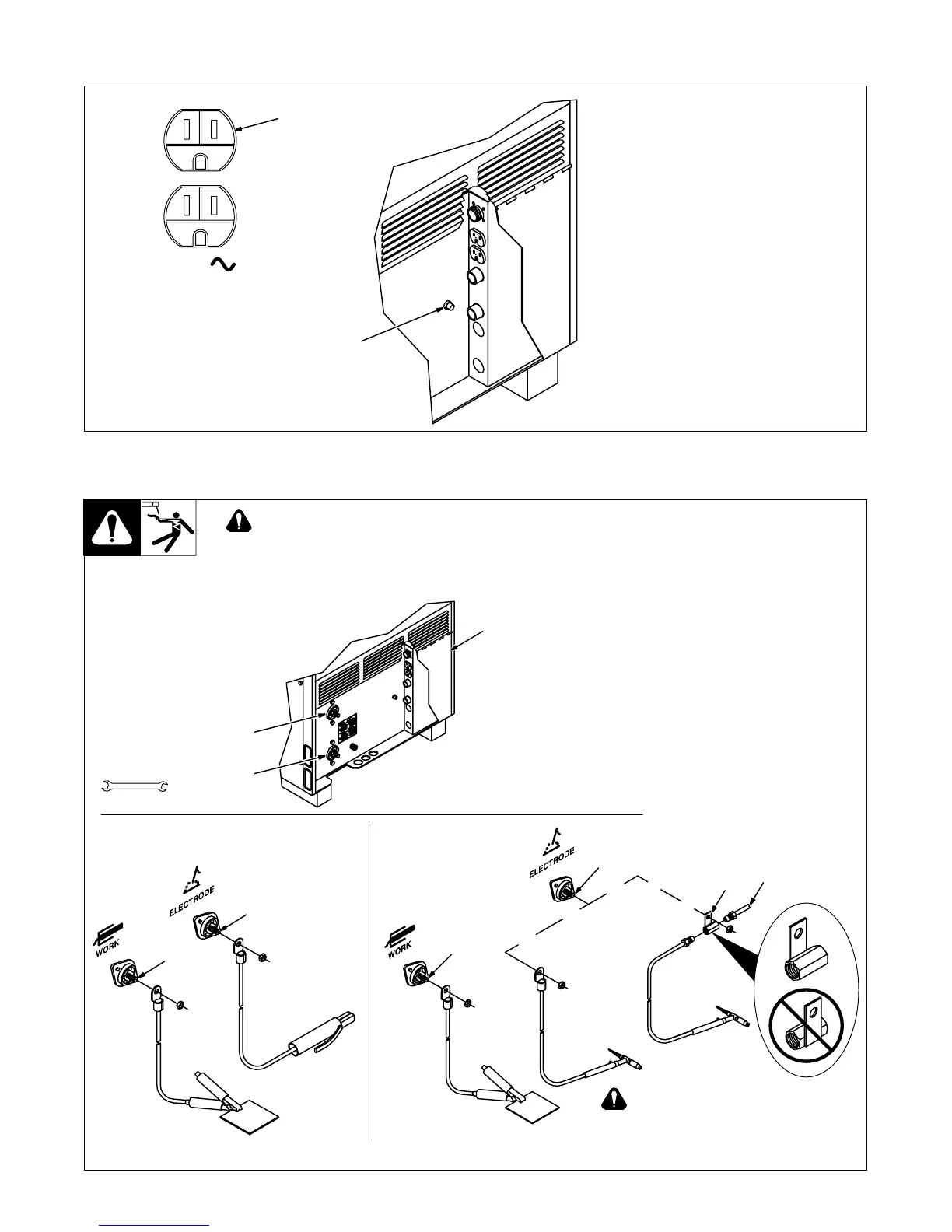

2-11. 115 Volts AC Duplex Receptacle And Circuit Breaker
1 115 Volts AC Duplex
Receptacle
This welding power source sup-
plies up to 15 amperes of 115 volts
ac power.
Receptacle is protected from over-
load by circuit breaker CB1.
2 Circuit Breaker CB1
CB1 protects the 115 volts ac wind-
ing of transformer T1 from over-
load. If CB1 opens, high frequency
and output to the 115 volts ac du-
plex receptacle stop.
Press button to reset breaker.
Close access door.
1
115V 15 A AC
Ref. ST-144 405-B
2
2-12. Connecting To Weld Output Terminals
Y Turn Off power before con-
necting to weld output termi-
nals.
1 Work Weld Output Terminal
2 Electrode Weld Output Terminal
3 Torch Cable Adapter
Adapter connects power and water to
torch and cooling system or drain.
4 Access Door
Connect cables as shown.
Close and secure access door.
Tools Needed:
3/4 in
SMAW Connections GTAW Connections
Work
Work
OR
Use only a proper torch cable adapter
positioned so it does not hit frame,
hardware, or door during operation.
sb9.1 12/94 – Ref. ST-144 405-B / ST-800 578
Location of Terminals
1
Gas Or
Water Hose
1
2
3
1
2
2
4
SERIOUS ELECTRIC SHOCK OR FIRE CAN RESULT FROM
WELD CURRENT ON CASE and in ground conductor.
• Do not let torch cable adapter hit screwheads, access door,
case, or any parts.
• Install adapter as shown.
To Next Page
