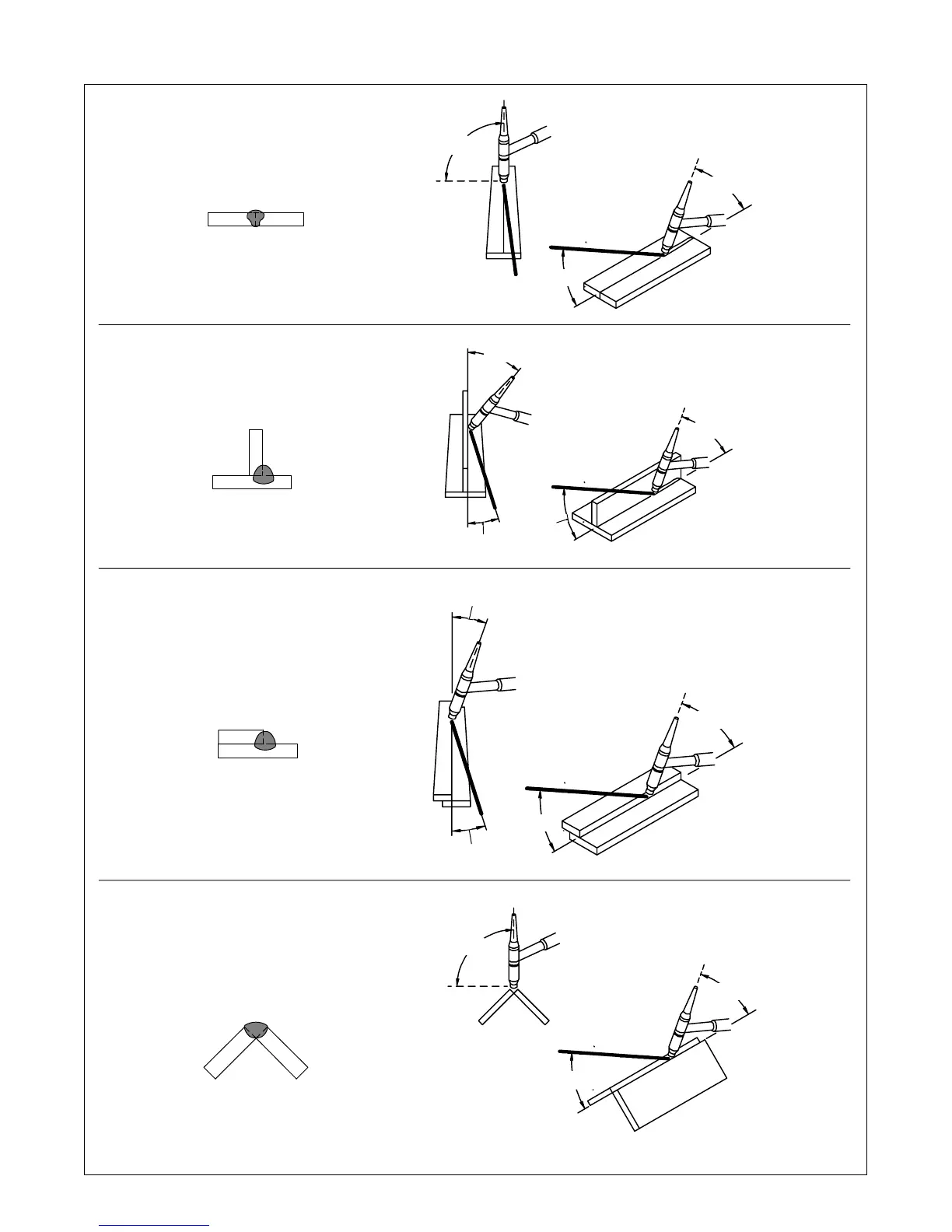

8-3. Positioning Torch Tungsten For Various Weld Joints
ST-162 003 / S-0792
75°
70°
90°
20°
20°
10°
15°
75°
20-40°
30°
15°
75°
90°
15°
Butt Weld And Stringer Bead
“T” Joint
Lap Joint
Corner Joint
