Miller Electric Syncrowave 500 - Remote 14 Receptacle Information And Connections; Remote 14 Socket Information

OM-350 Page 14

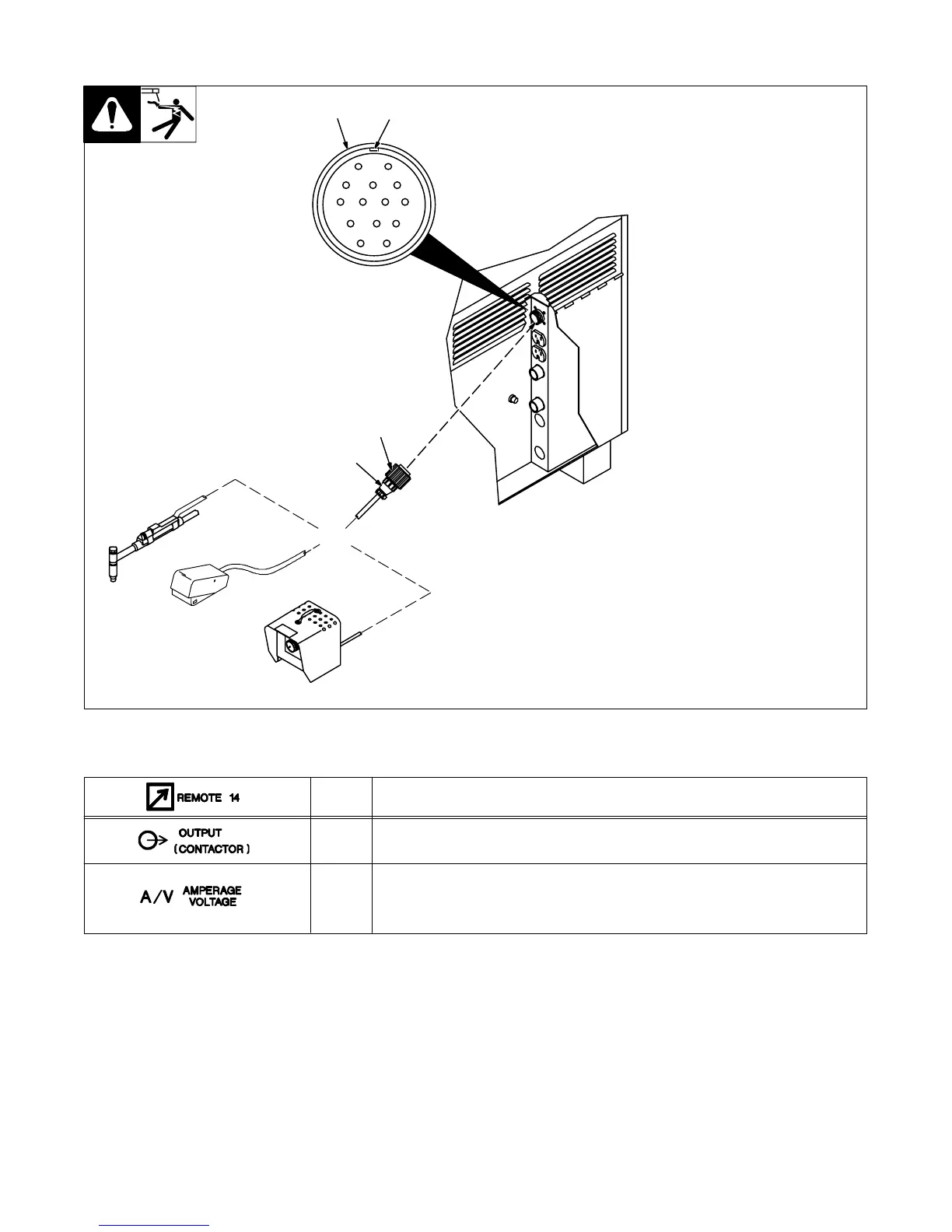

2-13. Remote 14 Receptacle Information And Connections
sb7.1 5/94 – Ref. ST-144 405-B / Ref. S-0004-A / S-0750
1 Remote 14 Receptacle RC2
(See Section 2-14)
2 Keyway
3 Plug
4 Threaded Collar
To connect to receptacle, align
keyway, insert plug, and tighten
threaded collar.
3
4
AJ
B
K
I
C
L
NH
D
M
G
E
F
12
OR
2-14. Remote 14 Socket Information
A 24 volts ac.
B Contact closure to A completes 24 volts ac contactor control circuit.
C +10 volts dc output to remote control.
D Remote control circuit common.
E 0 to +10 volts dc input command signal from remote control.
Socket Information
*The remaining sockets are not used.
Socket*
