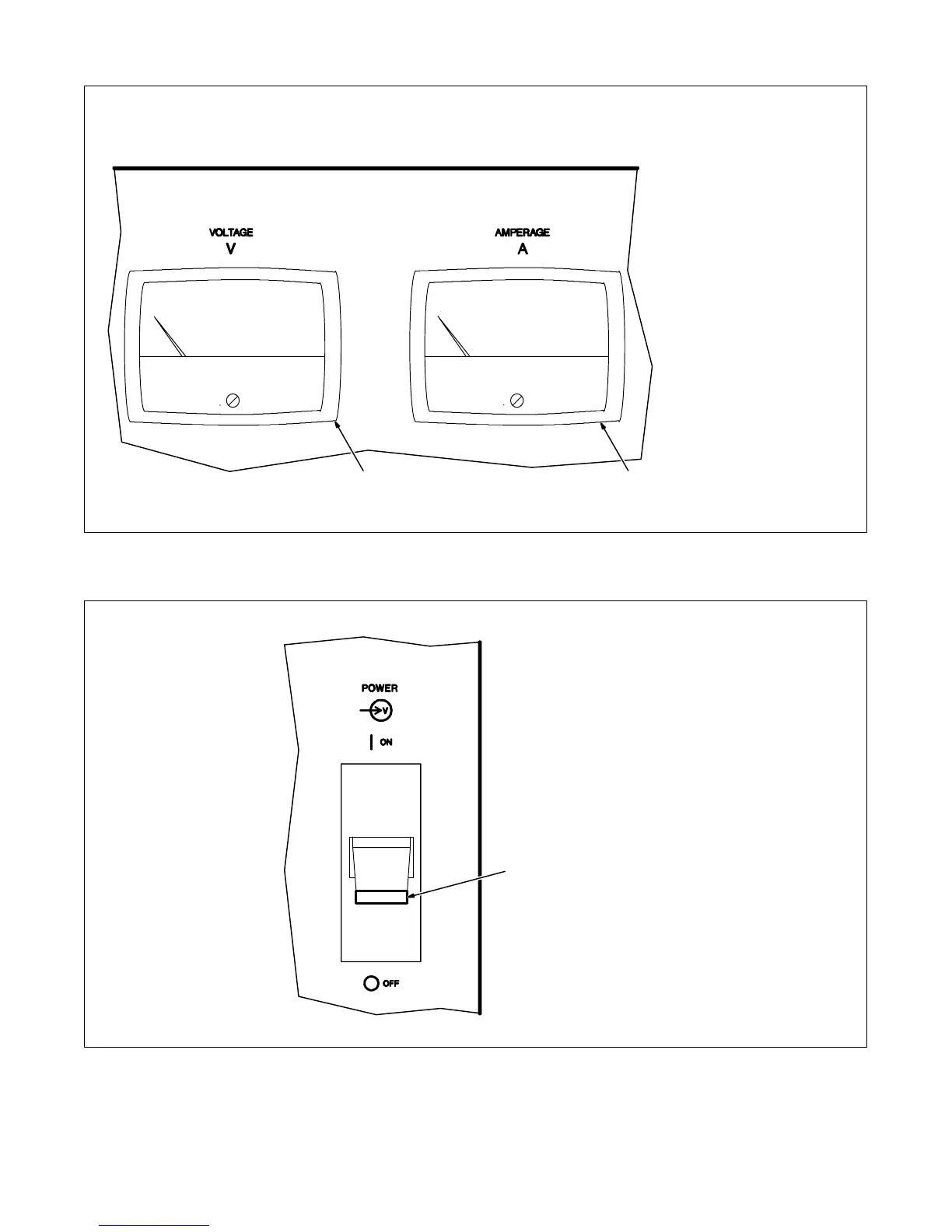

3-11. Ammeter And Voltmeter
1 Ammeter
Ammeter displays weld amperage
output of unit.
2 Voltmeter
Voltmeter displays voltage at the
weld output terminals, but not nec-
essarily the welding arc due to
cable resistance, poor connec-
tions, etc.
21
3-12. Power Switch
1 Power Switch
Use this switch to turn unit and pilot
light On and Off.
