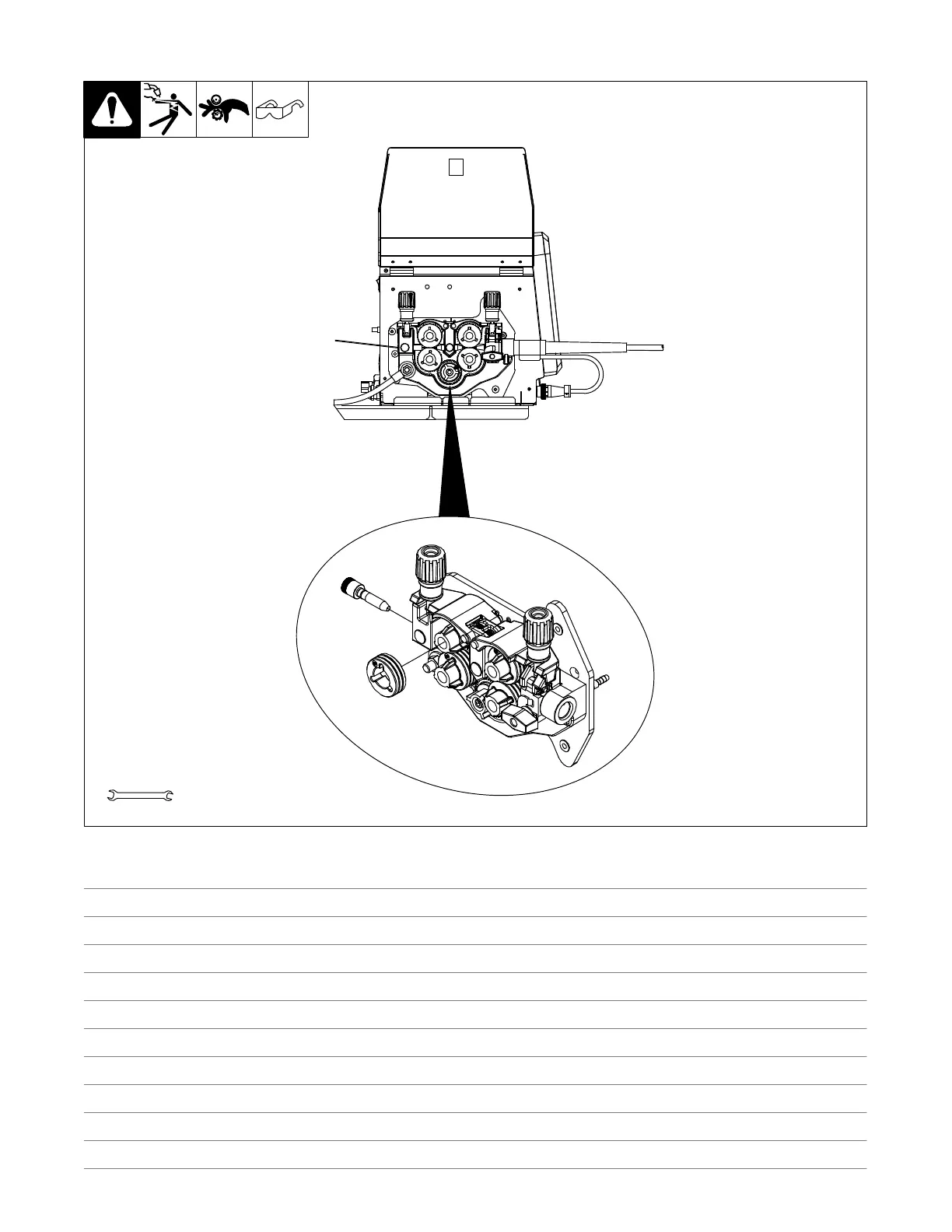

5-8. Installing Wire Guide And Drive Roll
Ref. 281186-A / 281467-A
Install and secure inlet wire guide
and intermediate wire guide on 4
drive roll assembly only. Install
drive rolls and turn drive roll nut one
click.
During maintenance intervals,
remove drive rolls, and clean
grooves using a wire brush. Check
groove of drive roll for pitting or
increase in the depth of the groove
indicating drive roll is worn out.
Tools Needed:
3/8 in.
