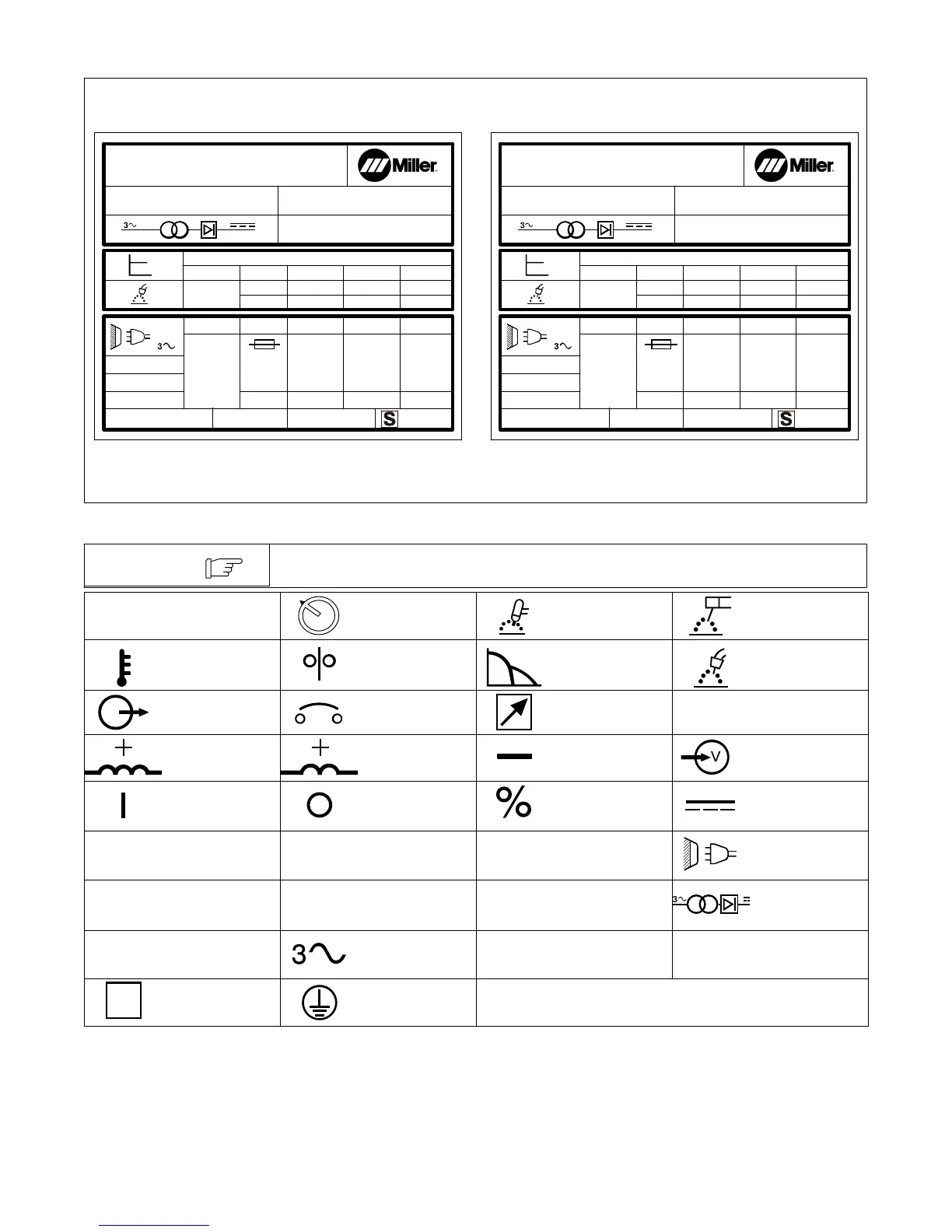

2-2. Manufacturer’s Rating Labels For CE Products
MADE IN ITALY
INFINITY 35 COD. 029015365
EN 60974 − 1
8A − 15V
50/60 HZ
U
o
V
16-38
X
I2
U2
350A − 31.5V
60%
300A
29V
100%
232A
25.5 V
IP 23
I.CL. H
50/60 HZ
S1
U1 V
230
400
T36A
T21A
31A
18A
24A
14A
11.8KVA 9.2KVA
MADE IN ITALY
INFINITY 45 COD. 029015360
EN 60974 − 1
15A − 15V
50/60 HZ
U
o
V
48
X
I2
U2
450A − 36.5 V
60%
400A
34V
100%
310A
29.5 V
IP 23
I.CL. H
50/60 HZ
S1
U1 V
230
400
51A
29A
45A
26A
31A
18A
17.9KVA 12.4KVA
45%
350A
31.5V
36A
21A
13.8KVA
45%
450A
36
52A
30A
2-3. Symbols And Definitions
Some symbols are found only on CE products.
NOTE
A
Amperes
Amperage/Voltage
Control−Panel
Gas Tungsten Arc
Welding (GTAW)
Shielded Metal Arc
Welding (SMAW)
Temperature Wire Feeder Arc Force (DIG)
Gas Metal Arc
Welding (GMAW)
Output Circuit Breaker Remote
V
Volts
Positive High In-
ductance Weld
Output Terminal
Positive Low In-
ductance Weld
Output Terminal
Negative Weld
Output Terminal
Input
On Off Percent Direct Current
U
0
Rated No Load
Voltage (Average) U
1
Primary Voltage
U
2
Conventional Load
Voltage
Line Connection
I
1
Primary Current
I
2
Rated Welding
Current
X
Duty Cycle
Three-Phase
Transformer
Rectifier
IP
Degree Of
Protection
Three-Phase
S
1
KVA
Hz
Hertz
S
Suitable For Areas
Of Increased
Shock Hazard
Protective Earth
(Ground)
