OM-206 360 Page 13

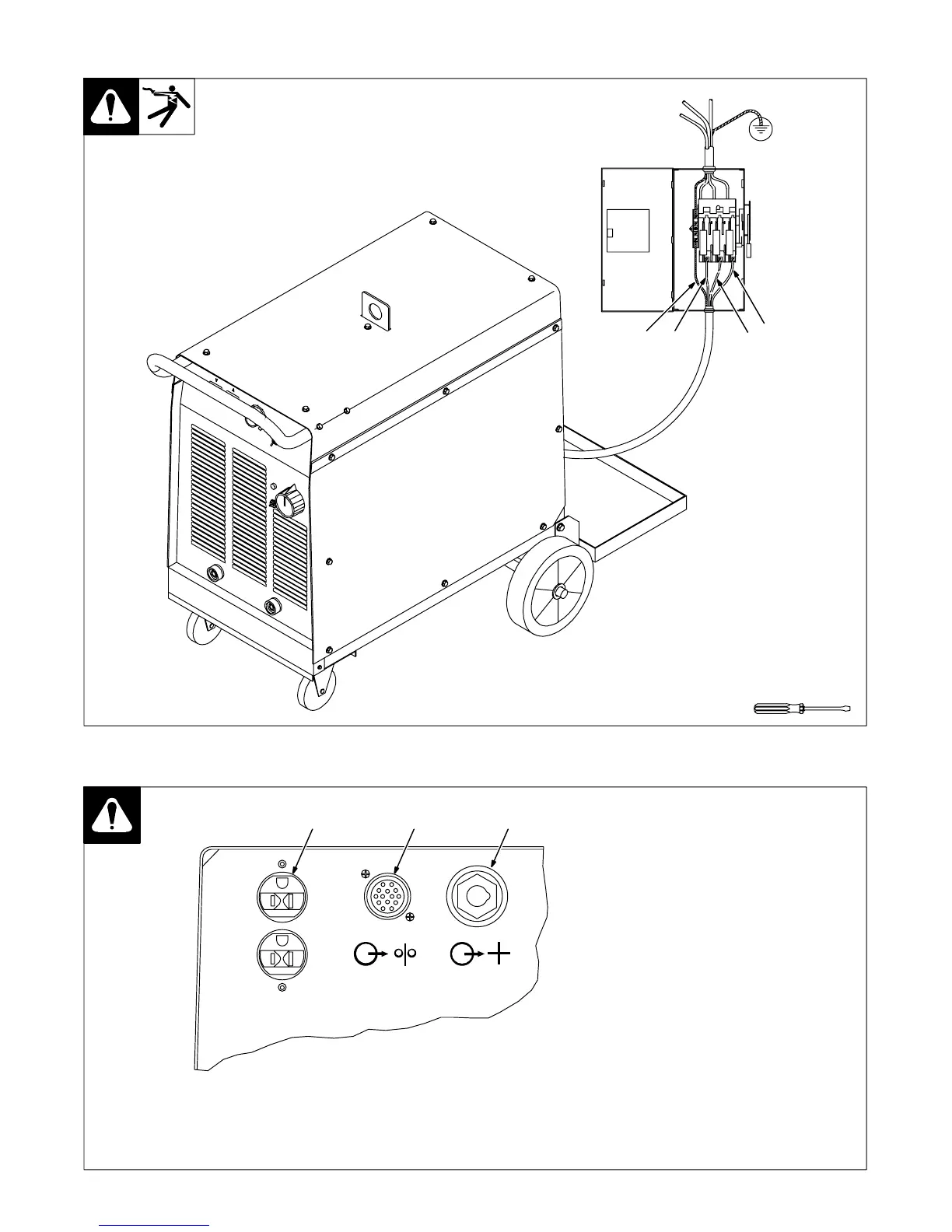

3-6. Connecting Input Power
ST-161 454-A
Tools Needed:
Y Have only qualified persons
make this installation.
Y Special installation may be
required where gasoline or
volatile liquids are present −
consult national or local reg-
ulations.
GND/PE
Connect first.
GND/PE
L1
L2
L3
115 VAC, Single phase,
50 Hz, 10 A
3-7. Controls
1 115 a.c. Receptacle
Located on the rear panel is a re-
ceptacle which provides power to
the gas heater, when welding with
CO
2
shielding gas and for the cool-
ing system.
2 Wire Feeder Power Cable
Receptacle
Located on the rear panel is a re-
ceptacle used to supply operating
power to the wire feed unit.
3 Positive Out Terminal
Back Panel
321
To Next Page
