3-8. Control Panel
1 High temperature shutdown
light
This lights up when unit overheats
and shuts down.
2 Indicator Lamp
This lights up when the power
switch is placed in the ON position.
3 Power switch − ON/OFF
4 Circuit breaker
This circuit protects the auxiliary
power
5 High inductance negative out-
put terminal
Connect work lead here for stain-
less steel and spray arc conditions.
6 Low inductance negative out-
put terminal
Connect work lead here for most
“short-arc” applications.
7 Digital voltmeter
8 Digital ammeter
9 Voltage adjustment control
Turn control clockwise to increase
voltage.
5
1
4
2
9
8
7
6
3

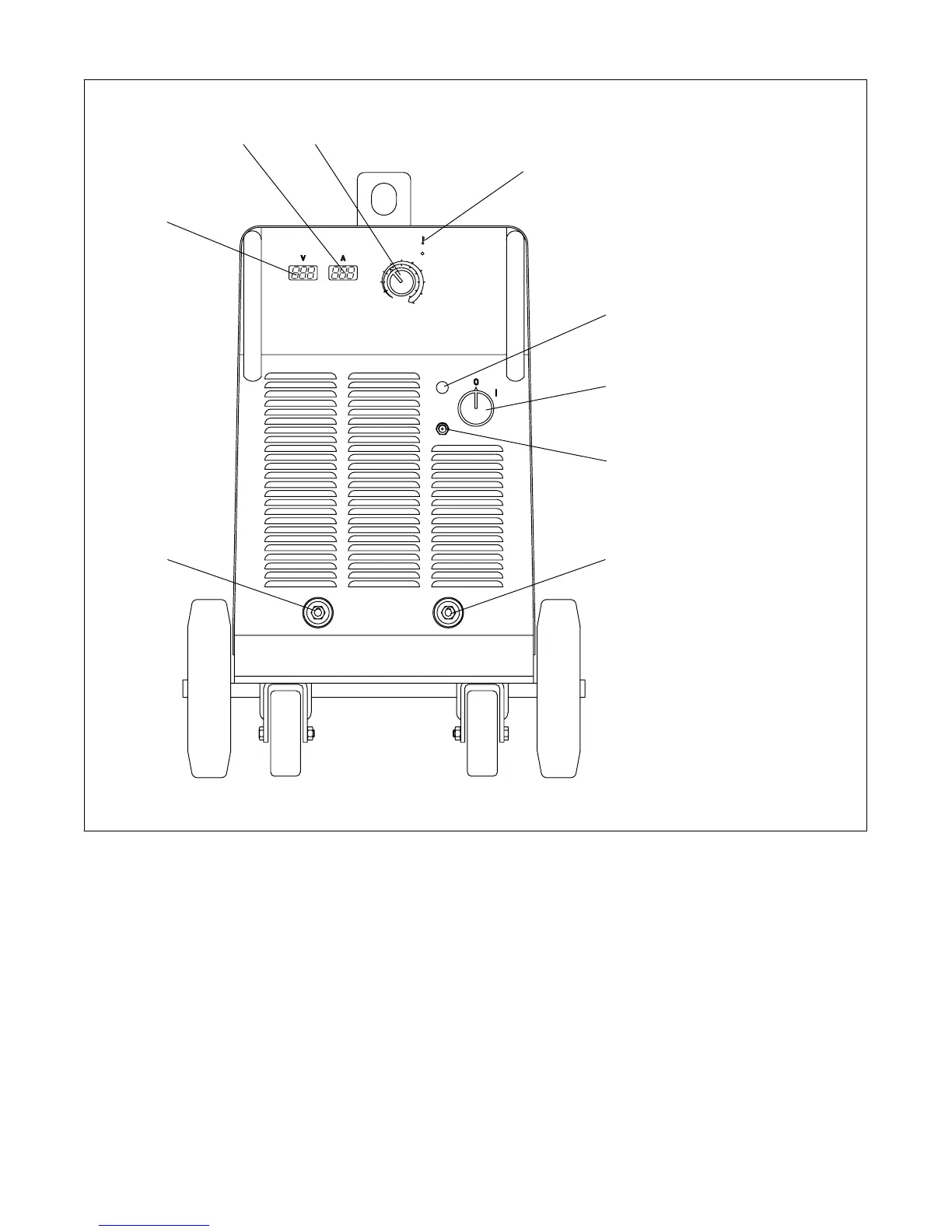

Front Panel
