OM-281426 Page 22

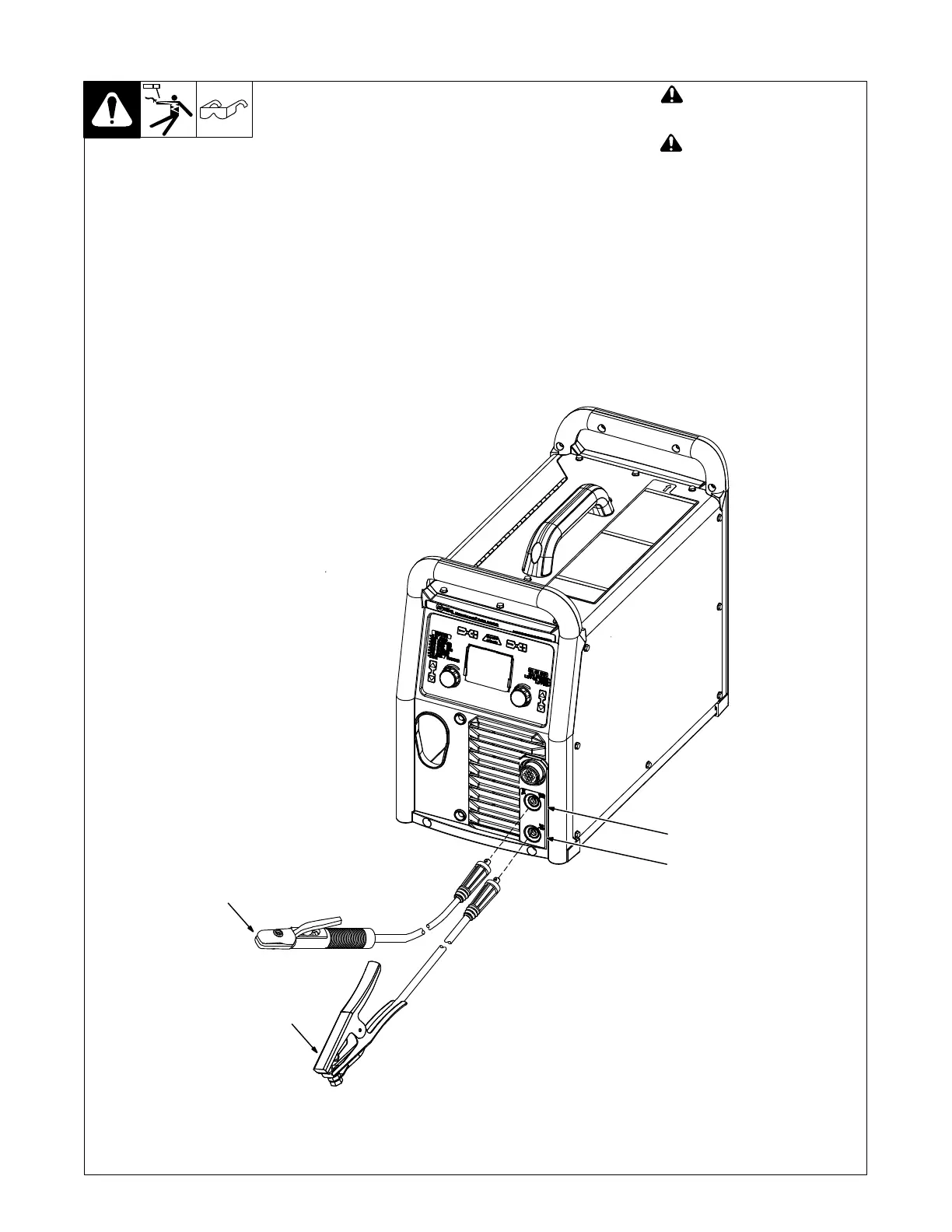

5-8. Stick Welding Connections
Ref. 282724A
! Turn off unit and disconnect
input power before making
connections.
! Do not use worn, damaged,
undersized, or repaired
cables.
1 Weld Output Receptacle
2 Work Clamp Receptacle
3 Stick Electrode Holder And
Cable
4 Work Clamp And Cable
Connect stick electrode holder
cable to the electrode output
receptacle, and connect work
clamp to work output receptacle.
Turn connectors clockwise.
Ensure all connections are tight.
4
1
2
3
