Miller Spectrum 875 User Manual

. A complete Parts List is available at www.MillerWelds.com
OM-264259 Page 14
SECTION 5 − INSTALLATION
! Do not move or operate unit
where it could tip.

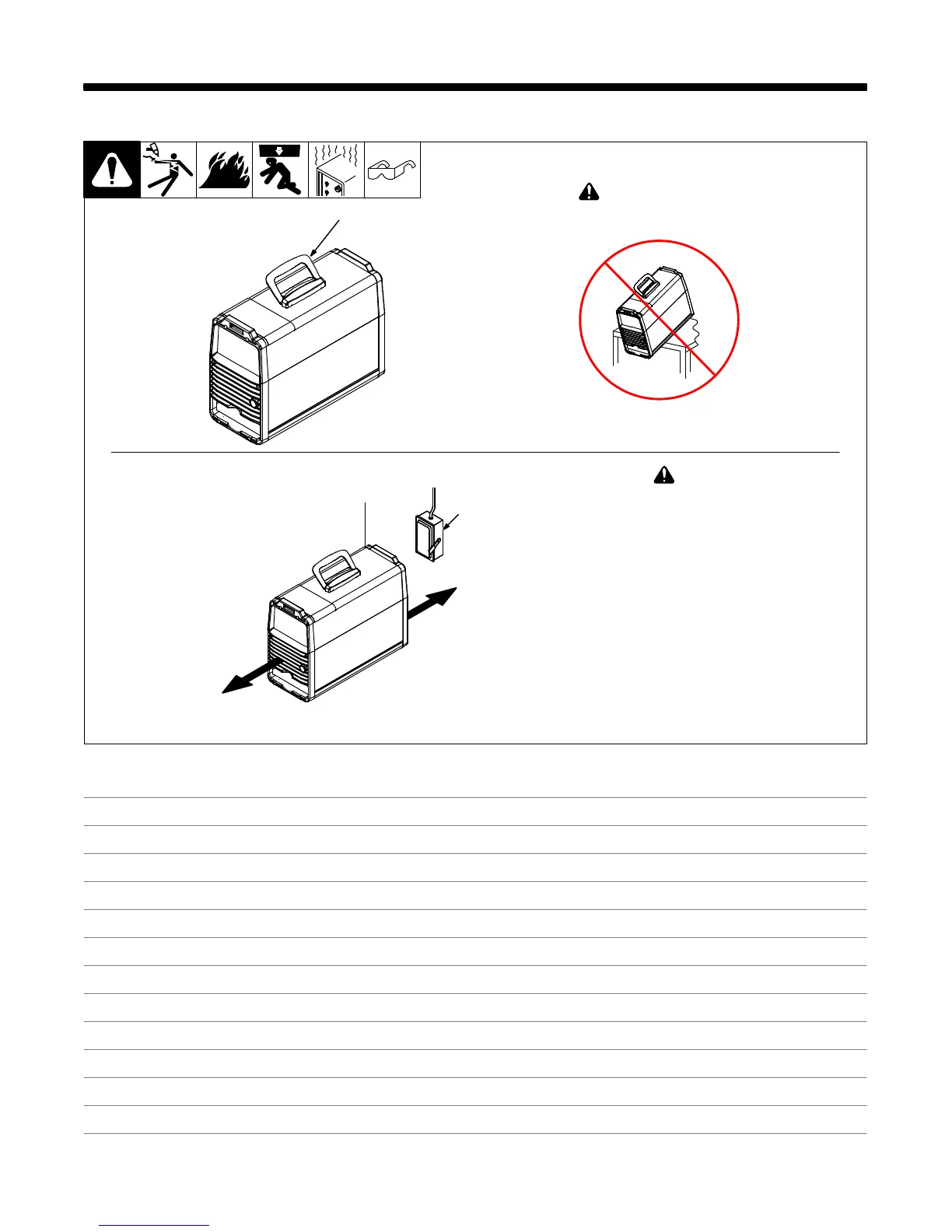

5-1. Selecting a Location
loc_small 2015-04
! Special installation may be
required where gasoline or
volatile liquids are present −
see NEC Article 511 or CEC
Section 20.
1 Lifting Handle
Use handle to lift unit.
2 Line Disconnect Device
Locate unit near correct input
power supply.
Movement
1
Location And Airflow
2
18 in.
(460 mm)
18 in.
(460 mm)
Notes

Miller Spectrum 875 Specifications

General

Amperage Output	20-60 A
CNC Interface	Optional
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Frequency	50/60 Hz
Output Current Range	20-60 A
Welding Process	Plasma cutting
TIG Start	Not applicable
Rated Output	60 A
Cutting Capability	3/4 in (19 mm)
Cutting Capacity	1 in (25 mm)
Severance Capacity	1-1/4 in (32 mm)
Input Phase	1- or 3-Phase
Duty Cycle	60%
