. A complete Parts List is available at www.MillerWelds.com
OM-264259 Page 18

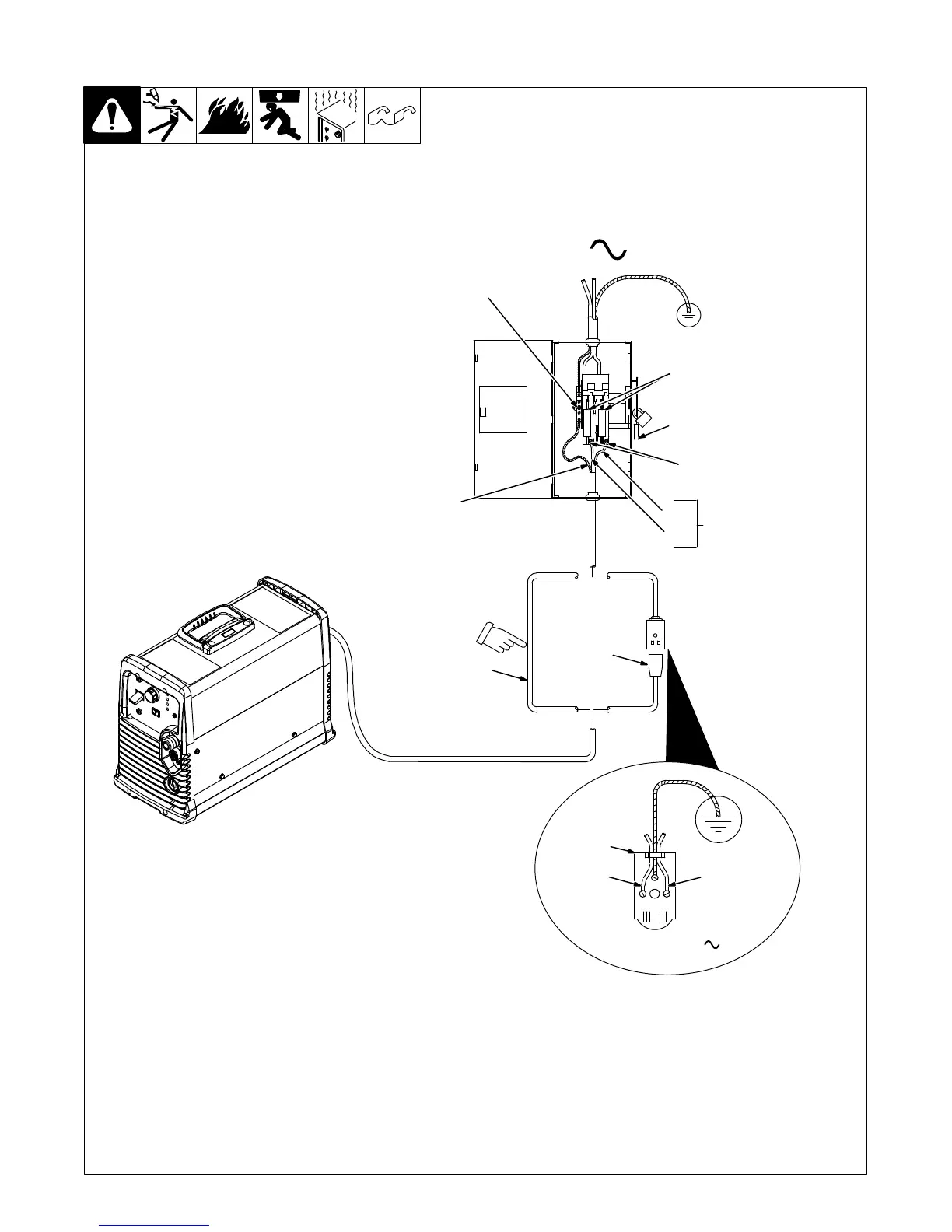

5-7. Selecting A Location And Connecting Input Power
Input13 201508 Ref. 805 159-A / 805 162-A
Install conductors into
a deenergized line
disconnect device.
1
L1L2
230 VAC, 1
2
1
=GND/PE Earth Ground
9
L1
L2
7
8
3
4
5
6
